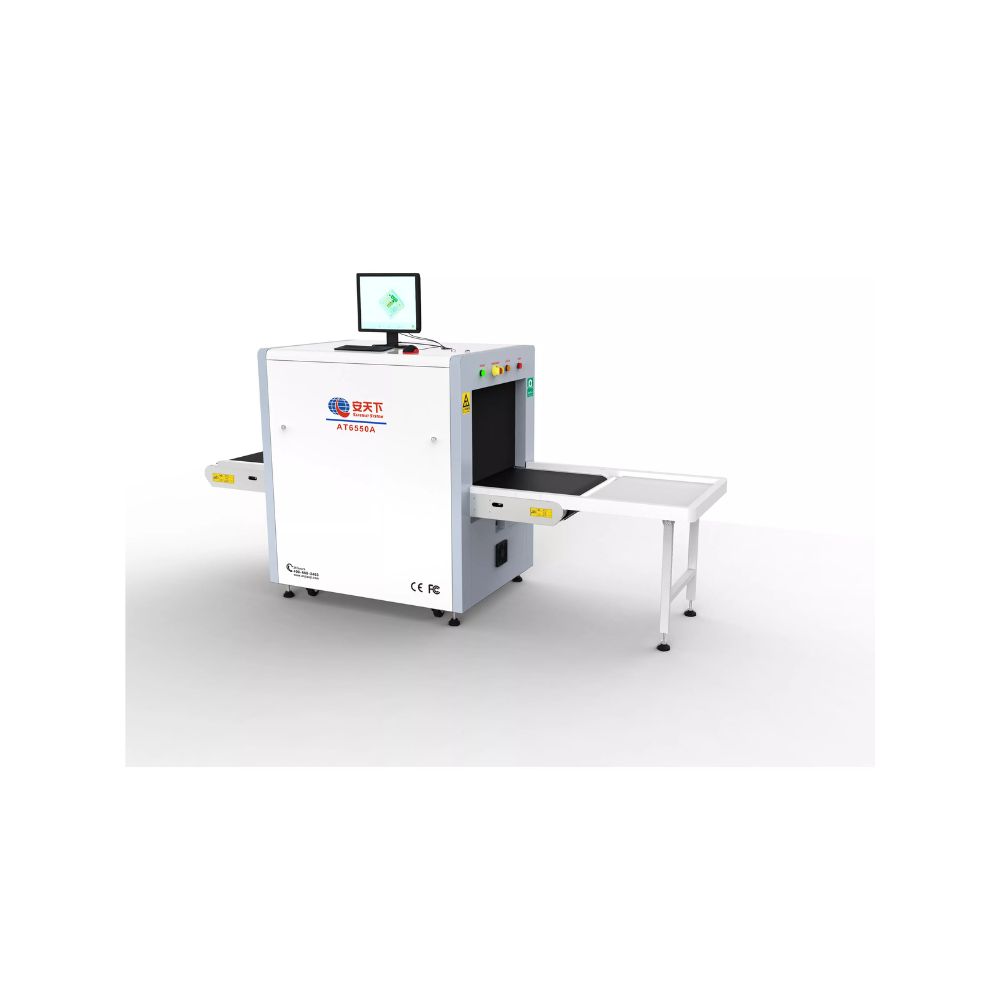

Safeway AT6550A X-Ray Baggage Scanner Supplier in Bangladesh | 65 × 50 cm Security Scanner

Description

Product Name: Safeway AT6550A X-Ray Baggage Scanner Supplier in Bangladesh | 65 × 50 cm Security Scanner

Manufacturer: Safeway System

Product Description

The Safeway AT6550A X-Ray Baggage Scanner is an efficient single-energy security inspection system featuring a 65×50 cm tunnel size, designed for non-destructive screening of shoes, mail, handbags, parcels, and hand luggage. Powered by a stable embedded Linux operating system, an ARM CPU (imx6 mainboard), 1G running memory, and 8G storage memory, it delivers clear security imaging on a 21.5-inch LCD monitor with 1920×1080 resolution. Suitable for government offices, transport terminals, logistics hubs, schools, and commercial checkpoints, the AT6550A provides reliable 8 mm steel penetration capability and comprehensive threat detection features.

Key Features

• Compact Tunnel Opening: Features an optimized 65×50 cm tunnel size designed for screening parcels, handbags, shoes, and small luggage.

• Stable Linux Architecture: Operates on an embedded Linux environment backed by an ARM CPU and imx6 mainboard for secure and low-power performance.

• High-Definition Visual Display: Equipped with a professional 21.5-inch LCD monitor offering crisp 1920×1080 resolution for detailed image inspection.

• Image Management & Storage: Automatically stores up to 10,000 inspection images and supports 30-image pullback recall for thorough operator review.

• Comprehensive Diagnostic & TIP Tools: Includes automated power-on self-tests (POST), real-time curve monitoring, component troubleshooting, and Threat Image Projection (TIP) evaluation management.

Technical Specifications

• Brand: Safeway System

• Model: AT6550A

• Scanner Type: Single-Energy X-Ray Baggage & Parcel Inspection System

• Tunnel Size: 65 cm (Width) × 50 cm (Height)

• X-Ray Generator Anode Voltage: 80 kV (Sealed oil cooling)

• Wire Resolution: 40 AWG

• Penetration Resolution: 32 AWG

• Spatial Resolution: Vertical 1.0 mm, Horizontal 1.0 mm

• Steel Penetration: 8 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Max Load: 150 kg

• Single Inspection Dose: ≤ 2.5 µSv (µGy)

• Boundary Leakage Dose: < 1 µSv/h (µGy/h)

• Noise Level: No more than 60 dB

• Maximum Power Consumption: 0.8 kW

• Computer Configuration: Embedded Linux, ARM CPU (imx6 mainboard), 1G RAM, 8G Storage Memory

• Display Monitor: 21.5-inch LCD monitor with 1920×1080 resolution

• Console & Keyboard: Dedicated Keyboard

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 420 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standards

Applications

• Government Agencies and Public Security Checkpoints

• Transportation Terminals, Bus Stations, and Airports

• Logistics Hubs, Express Mail, and Sorting Facilities

• Courts, Prisons, Embassies, and Defense Establishments

• Schools, Universities, Hospitals, and Gymnasiums

• Exhibition Halls, Hotels, and Entertainment Venues

Conclusion

The Safeway AT6550A X-Ray Baggage Scanner offers dependable security screening performance through its stable Linux operating core, 80 kV X-ray generator, and 8 mm steel penetration capability. Built for continuous operation and rigorous access control requirements, it ensures precise threat detection and compliance across facilities in Bangladesh.
