Safeway AT6550T Triple View X-Ray Baggage Scanner Price in Bangladesh | Airport & Security Solutions

Description

Product Name: Safeway AT6550T Triple View X-Ray Baggage Scanner Price in Bangladesh | Airport & Security Solutions

Manufacturer: Safeway System

Product Description

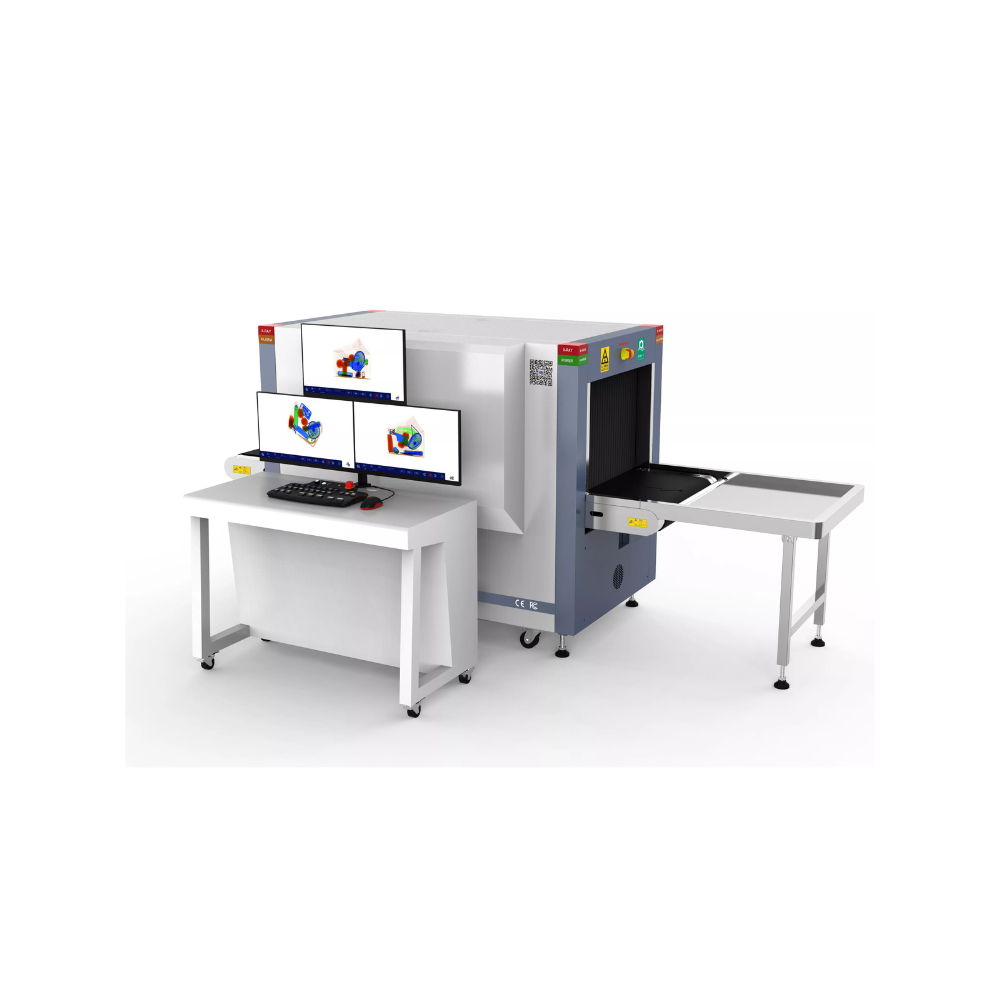

The Safeway AT6550T Triple View X-Ray Baggage Scanner is an advanced multi-source security inspection system engineered for high-precision threat detection and baggage screening in high-security environments. Featuring three independent X-ray generators, it captures horizontal, vertical, and lateral perspectives simultaneously to outline inspected objects in three dimensions without requiring manual repositioning.

Equipped with AI-powered stereoscopic analysis and centralized remote management capabilities, the system eliminates blind spots caused by item overlapping and significantly increases detection accuracy to over 99%. It provides exceptional steel penetration, ultra-fine wire resolution, and reliable performance for airports, transport hubs, customs checkpoints, and critical infrastructure across Bangladesh.

Key Features

• Triple-View Imaging Technology: Utilizes three independent X-ray sources to scan objects from horizontal, vertical, and lateral angles simultaneously, eliminating blind spots and reducing false alarms from overlapping items.

• AI-Powered Stereoscopic Analysis: Combines advanced three-view visual analysis and density algorithms to automatically identify conventional contraband, risky components, and disguised threats.

• Centralized & Remote Management: Integrates network capabilities to quickly stream scanned images and operational data to central offices for real-time surveillance and decision support.

• High-Performance Penetration & Resolution: Delivers over 38 mm steel penetration and 0.0787 mm fine metal wire resolution across all three perspectives.

• Heavy-Duty Conveyor System: Built with a 150 kg maximum load capacity, 0.22 m/s belt speed, and a cut-resistant diamond-patterned anti-static belt for continuous high-traffic operations.

• Comprehensive Image Processing: Offers advanced diagnostic tools including organic/inorganic rejection, super-enhancement, stepless magnification up to 64x, and edge enhancement.

• Robust Radiation Protection: Features double-layer staggered, wear-resistant and strong lead curtains, and 2–5 mm lead plates for reliable radiation protection.

• Humanized & Safe Design: Incorporates an anti-pinch device at channel entrances, four-corner status indicator lights, and an ergonomic professional keyboard workbench.

Technical Specifications

• Brand: Safeway System

• Model: AT6550T

• Scanner Type: Triple View X-Ray Baggage & Luggage Inspection System

• Tunnel Size: 650 mm (Width) x 500 mm (Height)

• X-Ray Sources: 3 Independent Generators (Horizontal, Vertical, Lateral)

• Tube Voltage: 80 – 160 kV (Adjustable), Current: 0.3 – 1.2 mA (Adjustable)

• Steel Penetration: Greater than 38 mm (All three perspectives)

• Wire Resolution: 0.0787 mm metal wire (All three perspectives)

• Spatial Resolution: Horizontal 1.0 mm, Vertical 1.0 mm

• Conveyor Speed: 0.22 m/s

• Maximum Load: 150 kg

• Single Inspection Dose: Less than 10 µGy

• Cooling / Duty Cycle: Sealed oil cooling / 100% continuous operation

• Power Supply: 220 V AC (±10%), 50 ±3 Hz

• Power Consumption: 1.5 kW

• Dimensions (L x W x H): 2255 mm x 1080 mm x 1331 mm (Excluding rack)

Applications

• Airports and Aviation Security Checkpoints

• High-Speed Rail and Metro Stations

• Key Government Facilities and Embassies

• Large-Scale Event Venues and Stadiums

• Important Logistics Hubs and Warehouses

• Customs and Border Control Stations

Conclusion

The Safeway AT6550T Triple View X-Ray Baggage Scanner provides state-of-the-art multi-perspective threat detection and reliable operational efficiency for demanding security checkpoints. By integrating three-dimensional X-ray imaging, AI-driven analysis, and robust mechanical durability, it helps improve security screening efficiency and supports reliable inspection in high-security environments.

Contact Us

For technical documentation, pricing, or project consultation, please contact our team:

• Phone: +8801737118246

• Email: [email protected]
