Description

Product Name: Safeway TH6550D Dual View X-Ray Baggage Scanner Price in Bangladesh | Small Parcel Inspection Solutions

Manufacturer: Safeway System

Product Description

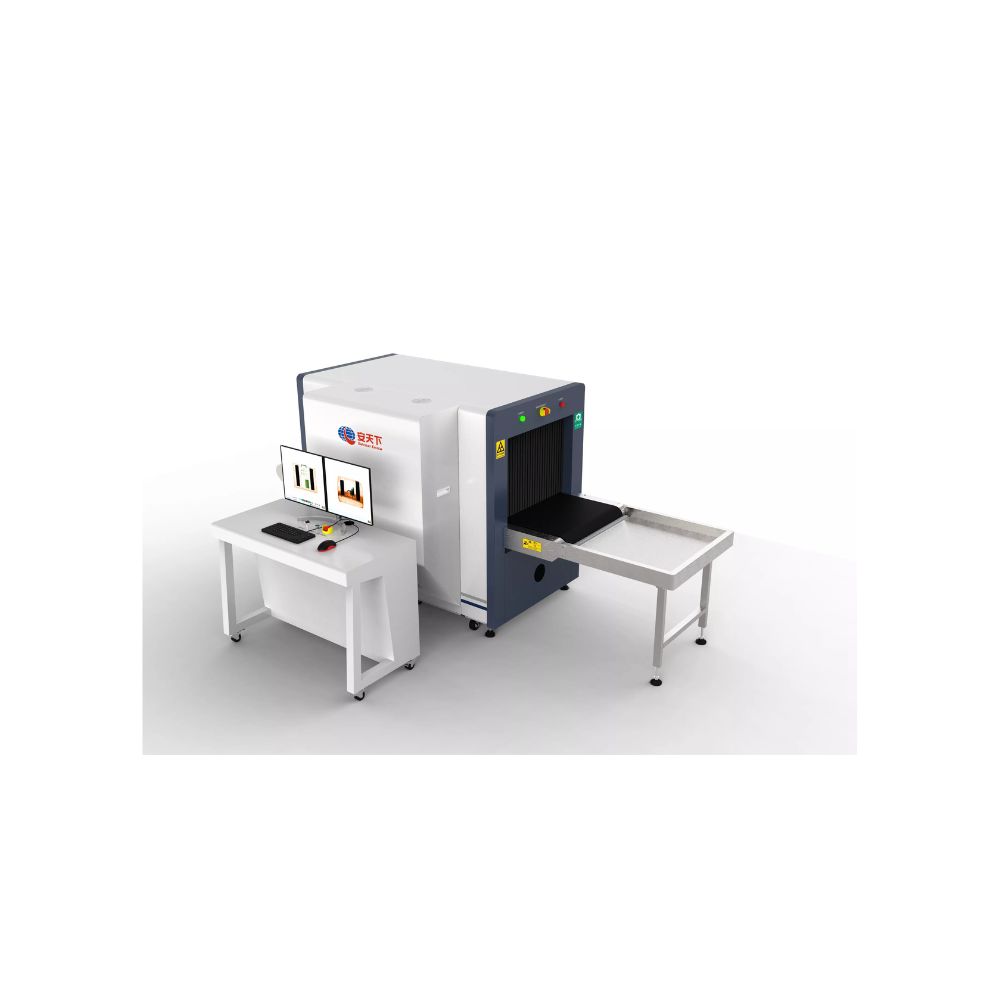

The Safeway TH6550D Dual View X-Ray Baggage Scanner is an advanced security inspection system designed for screening small baggage, parcels, suitcases, and hand luggage without unpacking. Featuring dual-view X-ray imaging technology driven by two independent generators, it provides comprehensive top-view and side-view perspectives to eliminate blind spots caused by item stacking. The Safeway TH6550D is widely utilized in shopping malls, subways, schools, factories, government agencies, and transport hubs across Bangladesh, ensuring efficient inspection capability for complex or overlapping items.

Key Features

• Dual-View Imaging Technology: Utilizes two independent X-ray generators to capture simultaneous top and side perspectives, enhancing inspection capability for complex or overlapping parcels.

• Advanced Threat Detection: Supports drugs and explosives inspection together with intelligent material classification.

• Massive Image Storage: Powered by a Linux operating system with 16GB running memory and a 256GB storage memory, capable of storing up to 300,000 scanned images.

• Comprehensive Image Processing: Offers advanced diagnostic tools including color/black and white, high/low penetration, super increase, inverse color, and suspicious object marking.

• Robust Self-Diagnosis & POST: Features automated power-on self-testing with fault detection displays for emergency stops, side panel status, and acquisition system performance.

• TIP (Threat Image Projection) Management: Supports customizable insertion of fictional threat items to monitor operator vigilance and generate performance evaluation reports.

• User Authority Management: Multi-level user login security with customizable operation permissions, detailed activity logs, and bilingual system support.

Technical Specifications

• Brand: Safeway System

• Model: TH6550D

• Scanner Type: Dual View X-Ray Baggage & Parcel Inspection System

• Inspection Technology: Dual-Energy Dual-View X-Ray Imaging (2 Generators)

• X-Ray Generator Anode Voltage: 160 kV (Sealed oil cooling)

• Top View Performance: Wire resolution 38 AWG, Penetration resolution 32 AWG, Steel penetration 36 mm

• Side View Performance: Wire resolution 40 AWG, Penetration resolution 32 AWG, Steel penetration 36 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Maximum Load: 200 kg

• Single Inspection Dose: ≤ 6.5 µSv (µGy)

• Leakage Dose: < 1 µSv/h (µGy/h)

• Leakage Current: ≤ 5.0 mA

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standards

• Noise Level: No more than 60 dB

• Maximum Power Consumption: 1.0 kW

• Operating System: Linux (16GB RAM, 256GB Storage)

• Display Monitor: 29-inch LCD monitor with a resolution of 2560 x 1080

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 700 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

Applications

• Shopping Malls and Commercial Complexes

• Subway and Metro Stations

• Schools, Universities, and Educational Institutions

• Industrial Factories and Manufacturing Plants

• Government Agencies and Courts

• Prisons and Detention Centers

• Embassies and Diplomatic Offices

• Hotels and Entertainment Venues

Conclusion

The Safeway TH6550D Dual View X-Ray Baggage Scanner combines powerful dual-generator imaging and advanced Linux-based software management to deliver reliable security screening for small baggage and parcels. Designed for high-traffic inspection points, it supports efficient security inspection and reliable baggage screening across commercial and public facilities.
