Safeway ZA100100A X-Ray Baggage Scanner Buy Online BD | 100 × 100 cm Security Scanner

Description

Product Name: Safeway ZA100100A X-Ray Baggage Scanner Buy Online BD | 100 × 100 cm Security Scanner

Manufacturer: Safeway System

Product Description

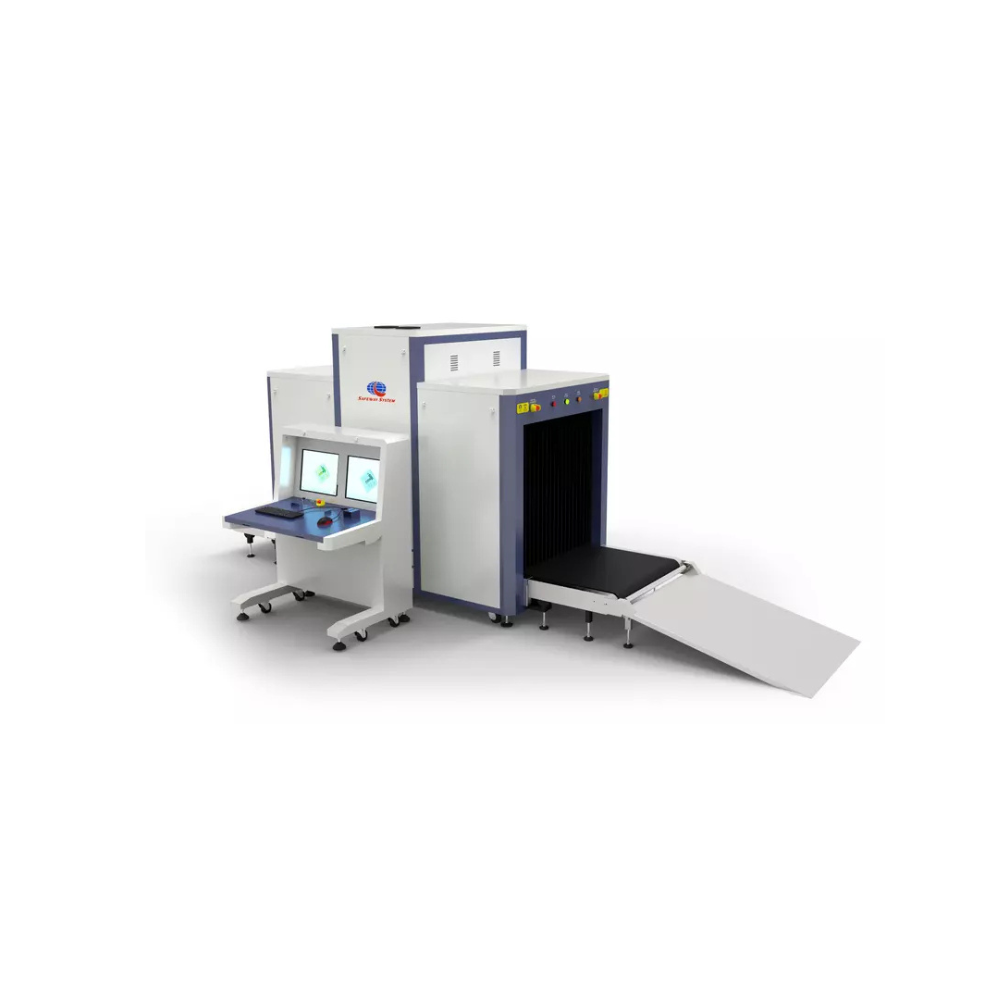

The Safeway ZA100100A OEM X-Ray Baggage Scanner is a heavy-duty security inspection system featuring an expansive 100×100 cm tunnel size, designed sharing identical technical specifications with the AT100100A model within a custom OEM housing shell. Engineered for non-destructive screening of large cargo, bulky baggage, and parcels at transport terminals and logistics stations, it is powered by an embedded Linux operating system and a multi-core ARM CPU with digital signal processing. Suitable for high-volume checkpoints across Bangladesh, the ZA100100A ensures reliable 100 kV X-ray generator with sealed oil cooling , high-definition imaging, and continuous operational durability.

Key Features

• Extra-Large Tunnel Opening: Features a spacious 100×100 cm tunnel size optimized specifically for screening bulky luggage, large boxes, and cargo parcels.

• Embedded Linux Architecture: Operates on a stable multi-core ARM CPU platform with digital signal processing for low power consumption and robust anti-interference capability.

• Continuous High-Reliability Operation: Certified through rigorous environmental testing to run continuously for over 10,000 hours without failure in high-traffic environments.

• Comprehensive Image Processing: Provides multiple image enhancement modes including color/black-and-white, local enhancement, high/low penetration boost, and 1–16 times continuous zoom.

• Extensive Management & TIP Tools: Features automated power-on self-tests, multi-level user management, Threat Image Projection (TIP) management, and multi-format image export options.

Technical Specifications

• Brand: Safeway System

• Model: ZA100100A (OEM version of AT100100A)

• Scanner Type: X-Ray Cargo & Baggage Inspection System

• Tunnel Size: 100 cm (Width) × 100 cm (Height)

• X-Ray Generator Anode Voltage: 100 kV (Sealed Oil Cooling)

• Wire Resolution: Typical 36 AWG

• Penetration Resolution: Typical 24 AWG

• Spatial Resolution: Vertical 2.0 mm, Horizontal 2.0 mm

• Steel Penetration: Typical 10 mm

• Conveyor Speed: 0.2 m/s

• Conveyor Max Load: 200 kg

• Single Inspection Dose: ≤ 2.5 µSv (µGy)

• Boundary Leakage Dose: ≤ 0.5 µSv/h (µGy/h)

• Noise Level: Less than 60 dB

• Maximum Power Consumption: 1.0 kW

• Computer Configuration: ARM CPU with 500G Hard Drive and 1G RAM (Linux Operating System)

• Display Monitor: 17-inch LED screen with 1280 × 1024 resolution

• Console & Keyboard: Single screen console with specialized security keyboard

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 910 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

• Film Safety: Guarantee ASA/ISO 1600 standard film

Applications

• Railway Stations, Bus Terminals, and Transit Hubs

• Customs Inspection Facilities and Freight Depots

• Logistics Hubs and Express Cargo Warehouses

• Government Agencies and Secure Infrastructure Buildings

• Factories, Industrial Plants, and Distribution Centers

• Exhibition Halls and Large Public Venues

Conclusion

The Safeway ZA100100A X-Ray Baggage Scanner delivers reliable, extra-large tunnel security screening through its stable Linux-ARM architecture and durable 200 kg conveyor capacity. Built to handle heavy workloads in high-traffic checkpoints, it ensures precise threat identification and long-term operational compliance across facilities in Bangladesh.
