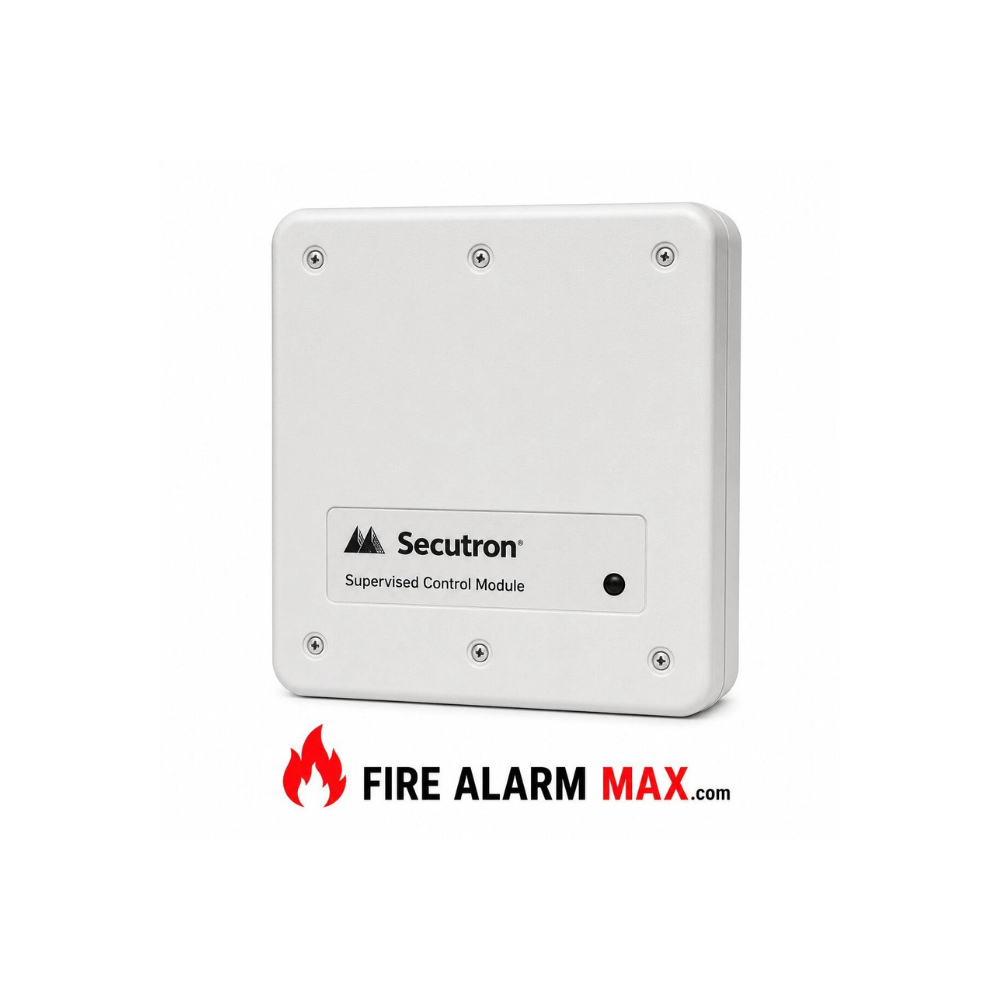

Product name: Secutron MRI-100S Addressable Control Module Price in BD

Brand / Manufacturer: Secutron (Mircom Group of Companies)

Product Overview

The Secutron MRI-100S operates as an intelligent addressable supervised control module designed for life safety notification appliances and auxiliary signaling circuits. Communicating directly with compatible Secutron intelligent fire alarm control panels over the Signaling Line Circuit (SLC), it provides supervised switching for externally powered notification equipment.

Furthermore, the MRI-100S provides supervised output circuit operation during standby. Upon control panel command, it switches external $24\text{ VDC}$ auxiliary power or $70.7\text{ V}_{\text{RMS}}$ audio signals to drive connected notification appliances, including sounders, strobes, speakers, and speaker isolators.

Key Features

• Supervised Output Operation: Provides supervised output circuit operation for field notification circuits.

• Versatile Audio / Visual Switching: Controls externally powered notification appliances, supporting $24\text{ VDC}$ power or $70.7\text{ V}_{\text{RMS}}$ audio lines.

• Onboard Status LED: Features a red LED indicator that illuminates upon module activation.

• Class A / Class B Wiring Flexibility: Supports Class A (Style Z) or Class B (Style Y) supervised output circuit topologies.

Circuit & Installation Details

• External Power & Audio Riser Requirements: Switching circuits require an external $24\text{ VDC}$ auxiliary power supply or $70.7\text{ V}_{\text{RMS}}$ audio input.

• Supervised Circuit Termination: Requires appropriate circuit termination to support supervised field wiring operation.

• Compact Physical Profile: Features a low-profile housing designed for straightforward panel chassis or backbox mounting.

Technical Specifications Overview

• Brand: Secutron (Mircom Group)

• Model: MRI-100S

• Product Type: Intelligent Addressable Supervised Control Module

• SLC Communication Voltage: $16\text{ VDC}$ to $28\text{ VDC}$

• Current Consumption: $1\text{ mA}$

• Supervisory Wiring Topologies: Class B (Style Y) or Class A (Style Z)

• External Riser Inputs: $24\text{ VDC}$ power or $70.7\text{ V}_{\text{RMS}}$ audio

• Visual Status Indicator: Red LED (illuminates on activation)

• Dimensions: $4.0\text{ in.} \times 4.0\text{ in.} \times 1.3\text{ in.}$ ($101.6\text{ mm} \times 101.6\text{ mm} \times 33.0\text{ mm}$)

• Product Weight: $3.0\text{ oz}$ ($85.8\text{ g}$)

• Operating Temperature Range: $-4^\circ\text{F}$ to $158^\circ\text{F}$ ($-20^\circ\text{C}$ to $+70^\circ\text{C}$)

• Operating Humidity Range: $0\%$ to $95\%$ RH (non-condensing, non-icing)

• Control Panel Compatibility: Compatible Secutron intelligent fire alarm control panels

Conclusion

The Secutron MRI-100S Addressable Supervised Control Module delivers supervised output control for notification appliances and audio evacuation circuits. In addition, its $16\text{–}28\text{ VDC}$ communication voltage, Class A/B wiring support, $1\text{ mA}$ current consumption, and $70.7\text{ V}_{\text{RMS}}$ audio capability support efficient life safety signaling across commercial facilities.
