Simplex 4090-5259 Relay Module Price in Bangladesh

Description

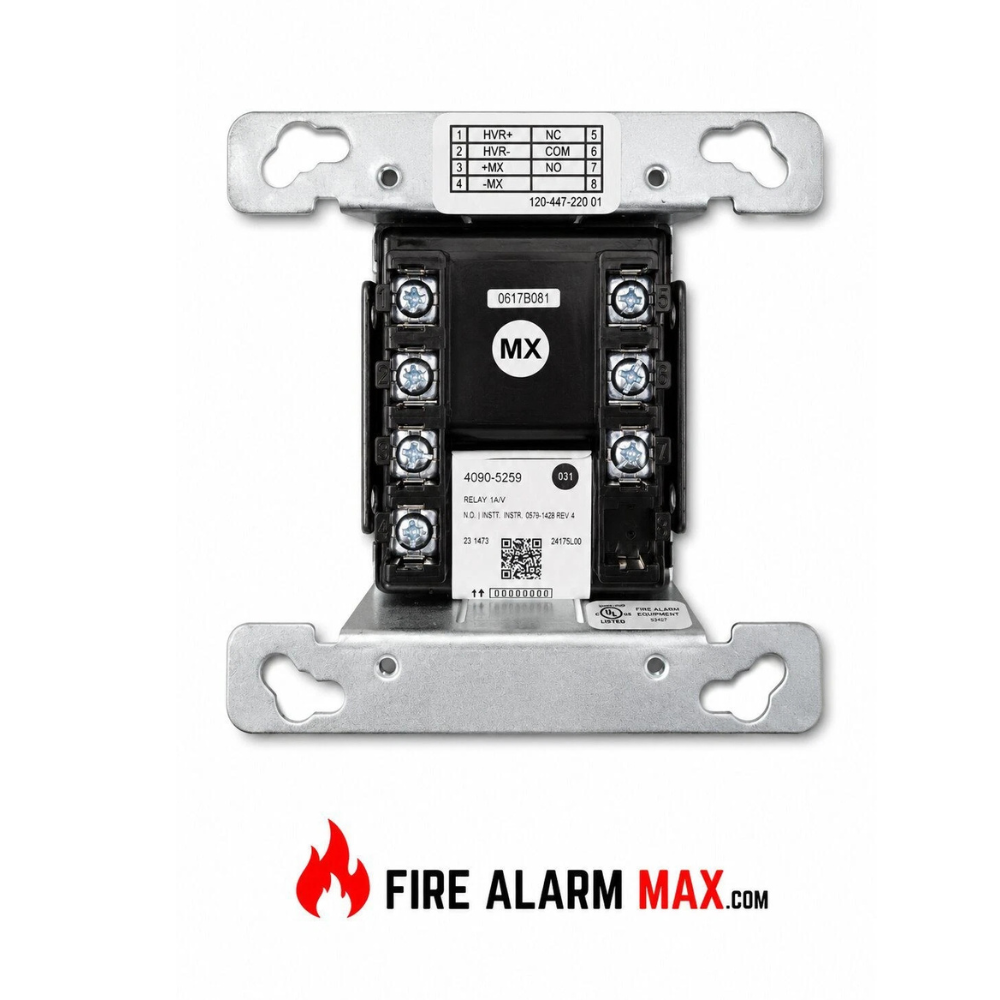

Product name:Simplex 4090-5259 Relay Module Price in Bangladesh

Product Overview

The Simplex 4090-5259 Relay Individual Addressable Module provides a reliable and space-efficient method to control external circuits within a fire alarm system. Designed for flexibility, this addressable relay module allows building automation and life safety systems to trigger critical functions such as elevator recall, HVAC fan shutdown, door release, and smoke damper control.

Unlike generic addressable modules, the 4090-5259 operates specifically on MX Digital communications loops to interface with compatible Simplex fire alarm control panels. Equipped with a Form C (SPDT) relay contact, the module executes targeted switching commands directly from the central control unit.

Key Features

• Individual addressable relay module for targeted control of auxiliary building circuits

• Communicates directly via MX Digital loops

• Form C (SPDT) dry contact rated at 2 A @ 24 VDC (non-inductive)

• Designed to mount in standard 4-inch square electrical boxes (with optional adapter for 4-11/16-inch boxes)

• Onboard status LED flashes to indicate active loop communications

• Low current consumption: 0.043 mA standby current and 4.17 mA alarm current

• Ideal for life safety triggers including door release, fan shutdown, and elevator recall

Technical Specifications

General

• Brand: Simplex

• Model: 4090-5259

• Type: Relay Individual Addressable Module (IAM)

• Protocol / Loop: MX Digital communications line circuit

• Relay Configuration: Single Form C (SPDT), dry contact

• Indicators: Onboard LED (flashes to indicate active communications; optional covers allow LED viewing)

Electrical & Switching

• Relay Contact Rating: 2 A @ 24 VDC (non-inductive dry contact; not rated for incandescent switching)

• Power Source: Powered directly via MX Digital loop

• Standby Current: 0.043 mA

• Alarm Current: 4.17 mA

Physical and Environment

• Mounting: Standard 4-inch square electrical box (optional adapter plate available for 4-11/16-inch square box)

• Environment: Indoor use only

• Operating Temperature: 0°C to 49°C (32°F to 120°F)

• Relative Humidity: Up to 93% RH at 32°C (non-condensing)

Applications

Use the Simplex 4090-5259 for precise, addressable switching of external building components during alarm events. It is widely applied in commercial, industrial, and institutional facilities for automated door release, elevator recall, HVAC fan shutdown, and auxiliary life safety controls over MX Digital communication channels.

Conclusion

The Simplex 4090-5259 Relay Module offers efficient and flexible circuit switching in a standard electrical enclosure layout. Built for MX Digital loops, its non-inductive dry contact and low-current operation make it a precise solution for managing external building controls during emergency operations.
