Simplex 4090-9001 IAM Supervised IDNet Module Price in BD

Description

Product name: Simplex 4090-9001 IAM Supervised IDNet Module Price in BD

Product Overview

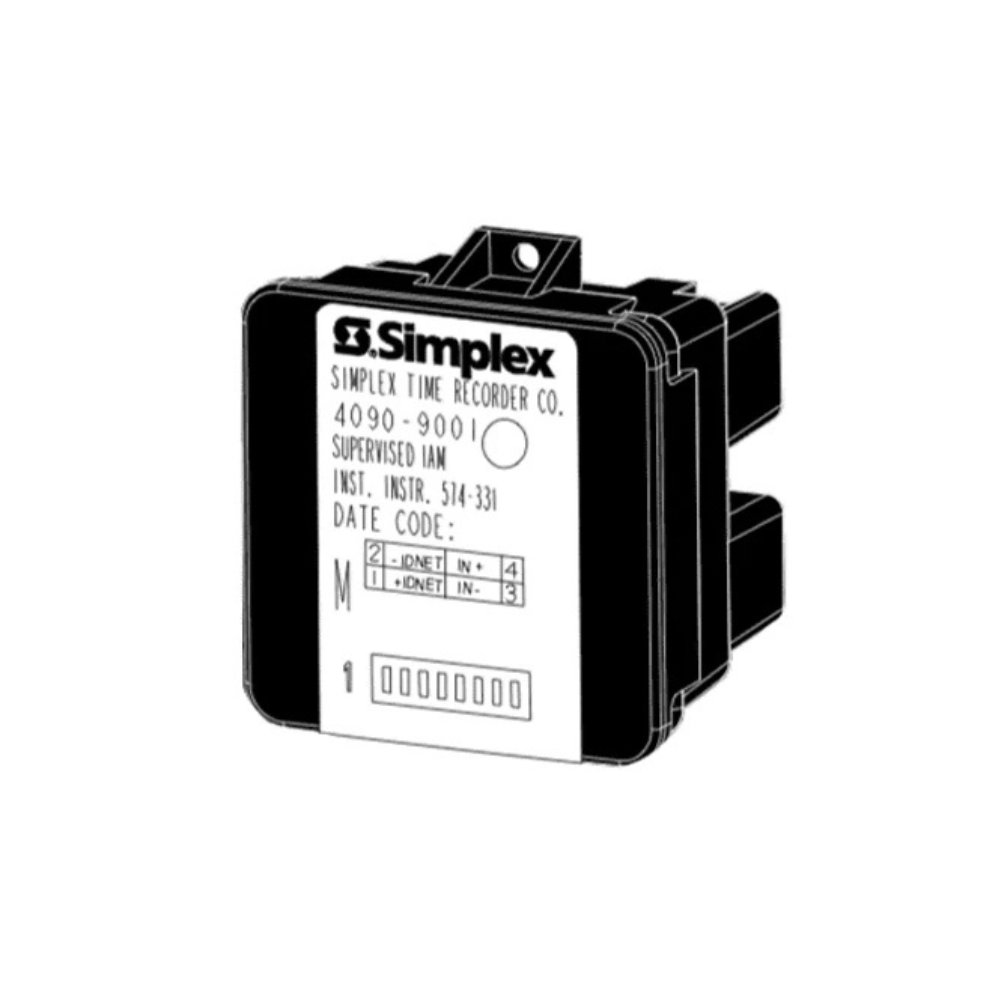

The Simplex 4090-9001 is a supervised individual addressable module, or IAM. It gets both power and communications from a two-wire MAPNET II or IDNet circuit. In addition, it gives location-specific addressability to one initiating device or to several devices at the same location. It does this by monitoring normally open dry contacts and the wiring to an end-of-line resistor.

For example, you can connect single station smoke detector contacts or heat detector contacts. Moreover, the module comes in a thermoplastic housing with screw terminals and a status LED. The LED flashes to show communications.

Key Features

• Power and communications over a single two-wire MAPNET II or IDNet circuit
• Supervised Class B monitoring of normally open dry contacts
• Up to 500 ft (152 m) of wiring from the IAM to the supervision resistor
• Compatible with Simplex 2081-9044 overvoltage protectors for outdoor wiring or electrically noisy applications
• Indoor use up to 158°F (70°C), such as attic spaces
• Enclosed design that minimizes dust infiltration
• Mounts in a standard single gang electrical box
• Screw terminals for wiring
• Optional covers let you view the LED after installation, with a mounting bracket ordered separately

Technical Specifications

Brand: Simplex
Model: 4090-9001
Type: Supervised individual addressable module (IAM)
Communications: IDNet or MAPNET II, auto selected
Address requirement: One address per IAM
Input: Normally open dry contacts, Class B supervised
Housing: Black thermoplastic
Terminals: Screw terminals
Indicator: LED that flashes to indicate communications
Listings: UL, ULC, CSFM listed; FM approved; MEA (NYC) acceptance

Supervision resistor: 6.8 kΩ, 1/2 W
Distance from IAM to resistor: 500 ft (152 m) maximum
Distance with 2081-9044 protectors: 400 ft (122 m) maximum
Maximum communication wiring distance: Up to 2,500 ft (762 m), subject to the applicable IDNet or MAPNET II wiring requirements.

Operating temperature: 32°F to 120°F (0°C to 49°C), according to the applicable manufacturer datasheet

Mounting: Standard single gang electrical box
Optional parts: Mounting bracket 4090-9810, trim plates and covers (ordered separately)

IDNet panels: Simplex 4008, 4010, 4010ES, 4100U and 4100ES series
MAPNET II transponders: Simplex 4100, 4100U, 4100ES, 4120, 4020 and 2120 series Communicating Device Transponders (CDTs)

Applications

Use the 4090-9001 to bring a normally open dry contact onto a Simplex IDNet or MAPNET II loop. For example, it suits single station smoke detector contacts and heat detector contacts. It also works in attic spaces, up to 158°F (70°C). However, confirm panel compatibility before you order.

Conclusion

The Simplex 4090-9001 gives one supervised addressable input point on an IDNet or MAPNET II circuit. Its single gang mounting and screw terminals keep installation simple. Therefore, it suits Simplex systems that need a remote, supervised dry-contact input.
