Simplex 4606-9101 LCD Annunciator Price Bangladesh

Simplex 4606-9101 Remote LCD Annunciator Price in BD

0.00৳

Categories: , Tags: , , , , , , , , ,

Description

Product name: Simplex 4606-9101 Remote LCD Annunciator Price in BD

Country of Origin: United States

Product Overview

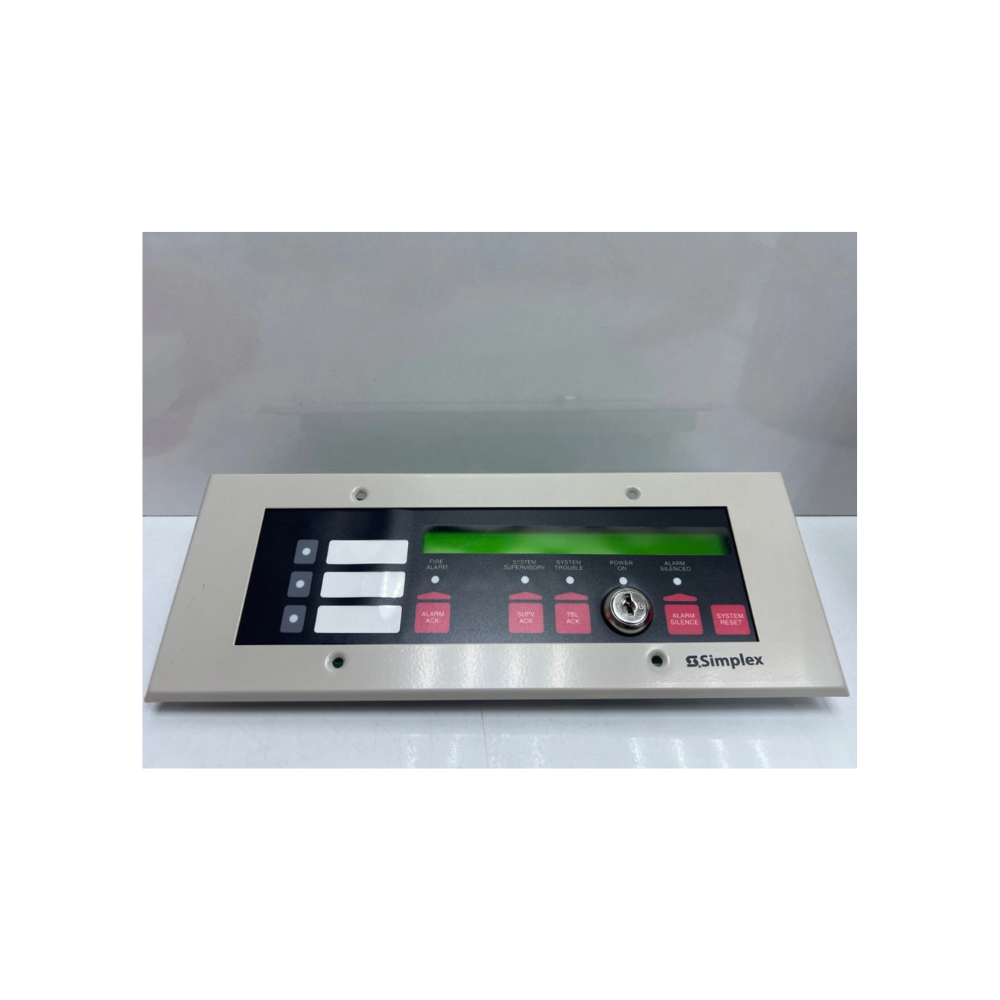

The Simplex 4606-9101 is a remote LCD annunciator designed to provide status monitoring and localized operator control for compatible Simplex fire alarm control panels. It features an 80-character backlit liquid crystal display (2 lines x 40 characters) that presents real-time system events in clear English text. Furthermore, it communicates over a supervised N2 communication line, enabling decentralized monitoring, custom label status indication, and keyswitch-controlled operator access.

Specifications & Features

  • Brand & Model: Simplex (Model: 4606-9101 / Assembly P/N: 07431005B)

  • Product Type: Remote LCD Fire Alarm Annunciator

  • Display Interface: 80-character backlit alphanumeric LCD display (2 lines of 40 characters) with contrast adjustment potentiometer.

  • Communication Interface: Operates on an N2 external annunciator communication bus requiring a single 18 AWG twisted, shielded pair.

  • System Power Input: Operates on $18\text{ to }32\text{ VDC}$ (24 VDC nominal) supplied via dedicated 2-wire power conductors from the host panel or power supply.

  • Current Draw:

    • Standby Current: $65\text{ mA}$ (during battery backup with backlight auto-off).

    • Normal Operating Current: $110\text{ mA}$ (with LCD backlighting ON).

    • Maximum Alarm Current: $140\text{ mA}$ (with LCD backlighting and tone-alert ON at $18\text{ VDC}$).

  • Operator Controls & Switches: Features panel control pushbuttons for System Reset, Alarm Silence, Supervisory Ack, Trouble Ack, and Alarm Ack, protected by an Enable keyswitch.

  • Status Indicators: Includes 5 status LEDs for Fire Alarm (Red), System Supervisory (Yellow), System Trouble (Yellow), Alarm Silenced (Yellow), and Power On (Green).

  • Internal Tone Alert: Onboard piezo sounder provides local audible indication for alarms, troubles, and switch activation.

  • Product Condition Note: Supplied as New – Open Box.

Panel Compatibility & Installation Guidelines

  • Host Panel Compatibility: Third-party certified for use strictly with Simplex 4010, 4006, and 4008 series fire alarm control panels.

  • Wiring Requirements: Requires a 4-wire supervised connection (18 AWG twisted-shielded pair for N2 data and 18 to 12 AWG pair for 24 VDC system power plus earth ground).

  • Mounting Options: Mounts flush on a standard 6-gang electrical box or surface mounts using compatible Simplex backbox enclosures.

Technical Notice

System Configuration Notice: N2 communication DIP-switch address settings (SW2), baud rate configuration, shield grounding at host panel, and line termination must be implemented according to official Simplex Installation Instructions 574-188 prior to system power-up.

Conclusion

The Simplex 4606-9101 LCD annunciator provides remote visual monitoring and operator control for Simplex 4010, 4006, and 4008 fire alarm panels over an N2 communication line. Therefore, it serves commercial and institutional facilities requiring secondary monitoring points.

Contact Us

For pricing inquiries and orders for the Simplex 4606-9101 LCD Annunciator in Bangladesh, get in touch with our team:
