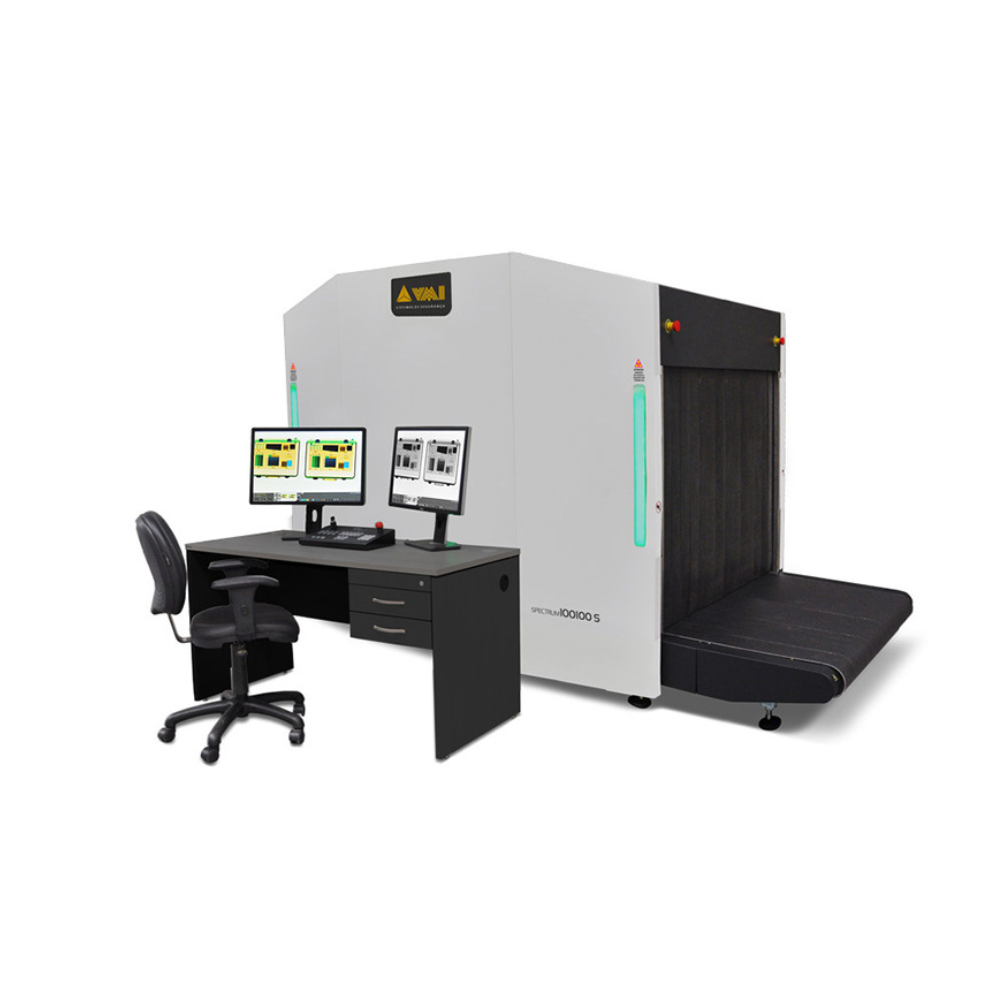

SPECTRUM 100100 X-Ray Inspection System

Description

Product Name: SPECTRUM 100100 X-Ray Inspection System

Manufacturer: VMI Security

Country of Origin: Brazil

Product Description

The SPECTRUM 100100 features a modern design engineered to meet the needs and applications of international airports, prisons, customs facilities, transportation operations, carriers, and parcel services. It is designed for environments wherever high security and total screening of a wide range of cargo dimensions is required. This equipment features real-time scanning and image generation, allowing for the real-time manipulation of images through its automatic detection of threats with color inversion. Consequently, this specific functionality provides more agility and efficiency to security systems during the inspection process.

The system utilizes an insulating oil cooling system and features a diagonal downward beam orientation. It is engineered to process heavy and oversized items efficiently, accommodating a maximum load of 200 kg on the conveyor belt. Featuring a 1014 mm × 1010 mm inspection tunnel, the system is suitable for screening a wide range of larger baggage dimensions, freight, and bulk cargo volumes.

Key Features

• Real-Time Image Generation & Scanning: The equipment allows real-time manipulation of images through its automatic detection of threats with color inversion. This function provides more agility and efficiency to security systems.

• Automatic Material Differentiation: It features automatic discrimination of organic, inorganic, and mixed materials. The system identifies these distinct material groups on screen by colorization.

• TIP Threat Image Projection: The system includes TIP threat image projection software. This tool enables continuous inspection alongside real-time image manipulation and color inversion functions.

• Automatic Detection Algorithm: The equipment operates with a built-in automatic detection algorithm. This system is specifically designed for the automatic identification of drugs, explosives, and high-density materials.

• High-Performance Imaging & Penetration: The system provides 36 AWG wire resolution, zoom higher than 128×, edge highlight, sharpness tools, and a high penetration function. It delivers a steel penetration up to 36 mm (150 kV) / up to 38 mm (170 kV) depending on the generator setup for detailed image analysis.

• Massive Image Storage Capacity: The scanner features an extensive storage capacity capable of saving over 200,000 images automatically. It also includes standard functions such as a baggage counter, continuous scanning, and a high density alert.

Technical Specifications

• Product Name: SPECTRUM 100100

• Manufacturer: VMI Security

• Country of Origin: Brazil

• Tunnel Dimensions: 1014 mm (Width) × 1010 mm (Height)

• Equipment Dimensions: 3815 mm (L) × 1369 mm (W) × 1748 mm (H)

• Equipment Weight: 950 kg (2094.4 lbs)

• Wire Resolution: 36AWG

• Steel Penetration: Up to 36 mm (150 kV) / up to 38 mm (170 kV)

• Standard Generator: 160 kV (operating at 150 kV)

• High Power Generator Option: 180 kV (operating at 170 kV)

• Cooling System: Insulating oil

• Beam Orientation: Diagonal downward

• Conveyor Speed & Height: 0.22 m/s (adjustable) | 307 mm height

• Maximum Conveyor Load: 200 kg (440.9 lbs)

• Monitor: High resolution

• Power Supply & Power: 110 – 127VAC / 208 – 240VAC; 50Hz/60Hz | 760VA

• Operating Temperature/Humidity: 0°C to 40°C / 5% to 95% (non-condensing)

• Storage Temperature/Humidity: -40°C to 60°C / 5% to 95% (non-condensing)

• Radiation Safety Shielding: Dose lower than 1uSv/h at 0.1m away from the equipment

• Standard Functions: Automatic image saving, baggage counter, continuous scanning, color or black/white image, high density alert, self-diagnosis system, and network connection.

• Application Areas: Airports, prisons, customs facilities, transportation operations, carriers, and parcel services.

Conclusion

For control and security systems in Bangladesh, achieving high image quality for detecting illicit items across larger cargo dimensions is a primary requirement. The SPECTRUM 100100 addresses these operational needs by combining a spacious tunnel footprint with an automatic threat identification system. For example, its automatic discrimination of materials by colorization allows security points at international airports, customs border posts, and logistics hubs to identify organic, inorganic, and mixed materials accurately.

By utilizing built-in algorithms for drugs, explosives, and high-density materials alongside flexible generator options, the equipment supports operators in making quick decisions during heavy-duty screening. Furthermore, the integration of TIP software and a large storage capacity for over 200,000 images supports continuous inspection capability. The SPECTRUM 100100 provides a reliable screening solution for airports, transportation hubs, government facilities, and parcel inspection centers that require efficient real-time X-ray inspection.
