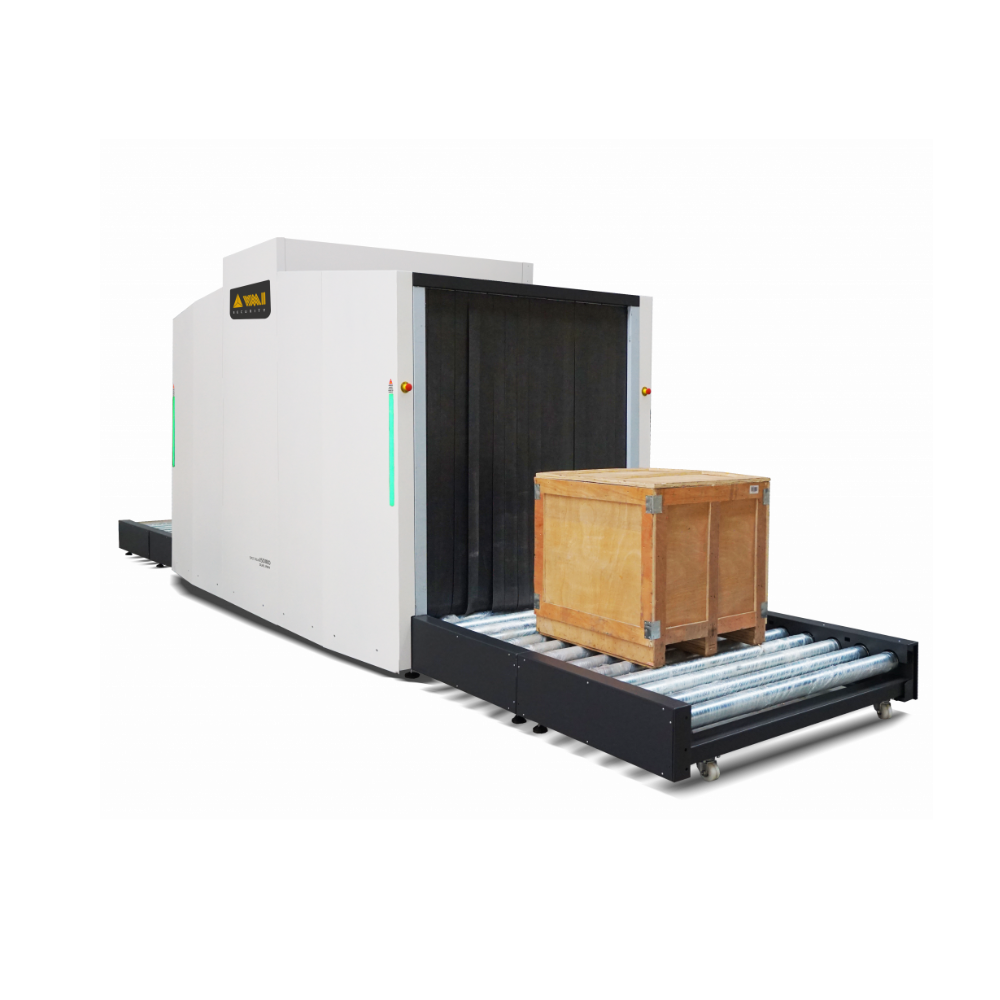

SPECTRUM 150180 X-Ray Inspection System

Description

Product Name: SPECTRUM 150180 X-Ray Inspection System

Manufacturer: VMI Security

Country of Origin: Brazil

Product Description

The SPECTRUM 150180 is a high-performance X-ray inspection system specifically designed for the inspection of medium and large cargo volumes. Equipped with a 200kV monoblock generator, it delivers high-quality image clarity and sharp visualization for demanding security environments. It is specially designed to meet the rigorous needs of international airports, customs services, railway stations, mail storage, and other high-volume cargo transit hubs.

The system features real-time scanning and image manipulation, allowing for color inversion and automatic threat detection. This specific functionality provides more agility and efficiency to security operations during the screening of bulk cargo. Featuring a massive 1626 mm × 1800 mm inspection tunnel and a conveyor load capacity of up to 3000 kg (evenly distributed), the system is optimized for heavy pallets, oversized freight, and large-scale cargo dimensions.

Key Features

• High-Performance 200kV Generator: The 200kV monoblock generator provides high-quality, sharp images with a high penetration function, ensuring detailed inspection of dense cargo volumes.

• Automatic Material Differentiation: It features automatic discrimination of organic, inorganic, and mixed materials. The system identifies these distinct material groups on screen by colorization.

• TIP Software & Automated Detection: The system includes TIP (Threat Image Projection) software and a built-in automatic detection algorithm. This setup supports the identification of drugs, explosives, and high-density materials.

• Advanced Application Integration: It supports image exports to a dedicated application developed by VMI for encrypted image viewing, ensuring secure data handling.

• Radiometric Documentation: The equipment provides complete documentation, including an operation manual and the automatic emission of a radiometric report.

• Comprehensive Imaging Tools: The system provides 36 AWG wire resolution, 49 mm steel penetration, and zoom higher than 128×. Additionally, it includes edge highlight, sharpness enhancement, and storage capacity for over 200,000 images.

Technical Specifications

• Product Name: SPECTRUM 150180

• Manufacturer: VMI Security

• Country of Origin: Brazil

• Tunnel Dimensions: 1626 mm (Width) × 1800 mm (Height)

• Equipment Dimensions: 7553 mm (L) × 2970 mm (W) × 2309 mm (H)

• Equipment Weight: Approximately 3940 kg (8686.2 lbs)

• Wire Resolution: 36AWG

• Steel Penetration: 49 mm

• Standard Generator: 200 kV

• Cooling System: Insulating oil

• Beam Orientation: Sideward

• Conveyor Speed & Height: 0.22 m/s (adjustable) | 346 mm height

• Maximum Conveyor Load: 3000 kg (6613.9 lbs) – Evenly distributed

• Monitor: High resolution

• Power Supply & Power: 127 / 220VAC; 50Hz/60Hz | 2000VA

• Operating Temperature/Humidity: 0°C to 40°C / 5% to 95% (non-condensing)

• Storage Temperature/Humidity: -40°C to 60°C / 5% to 95% (non-condensing)

• Standard Functions: Automatic image saving, baggage counter, continuous scanning, color or black/white image, high density alert, self-diagnosis system, and real-time image manipulation.

• Application Areas: Airports, customs facilities, railway stations, mail storage, and large cargo transit environments.

Conclusion

For large-scale security and transport operations in Bangladesh, achieving high-level performance in cargo screening is essential. The SPECTRUM 150180 addresses these operational needs by combining a massive tunnel footprint with a powerful 200kV generator. For example, its automatic discrimination of materials by colorization allows security points at ports, railway stations, and logistics hubs to identify organic, inorganic, and mixed materials accurately within large volumes.

By utilizing built-in algorithms for explosives and high-density materials alongside a 3000 kg load capacity, the equipment supports operators in making quick, informed decisions during heavy-duty screening. Furthermore, the integration of TIP software and secure encrypted image viewing supports continuous inspection capability. The SPECTRUM 150180 provides a reliable screening solution for large cargo transit environments that require efficient real-time X-ray inspection and superior image clarity.

Get instant stock availability and the best price for the SPECTRUM 150180 X-Ray Inspection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
