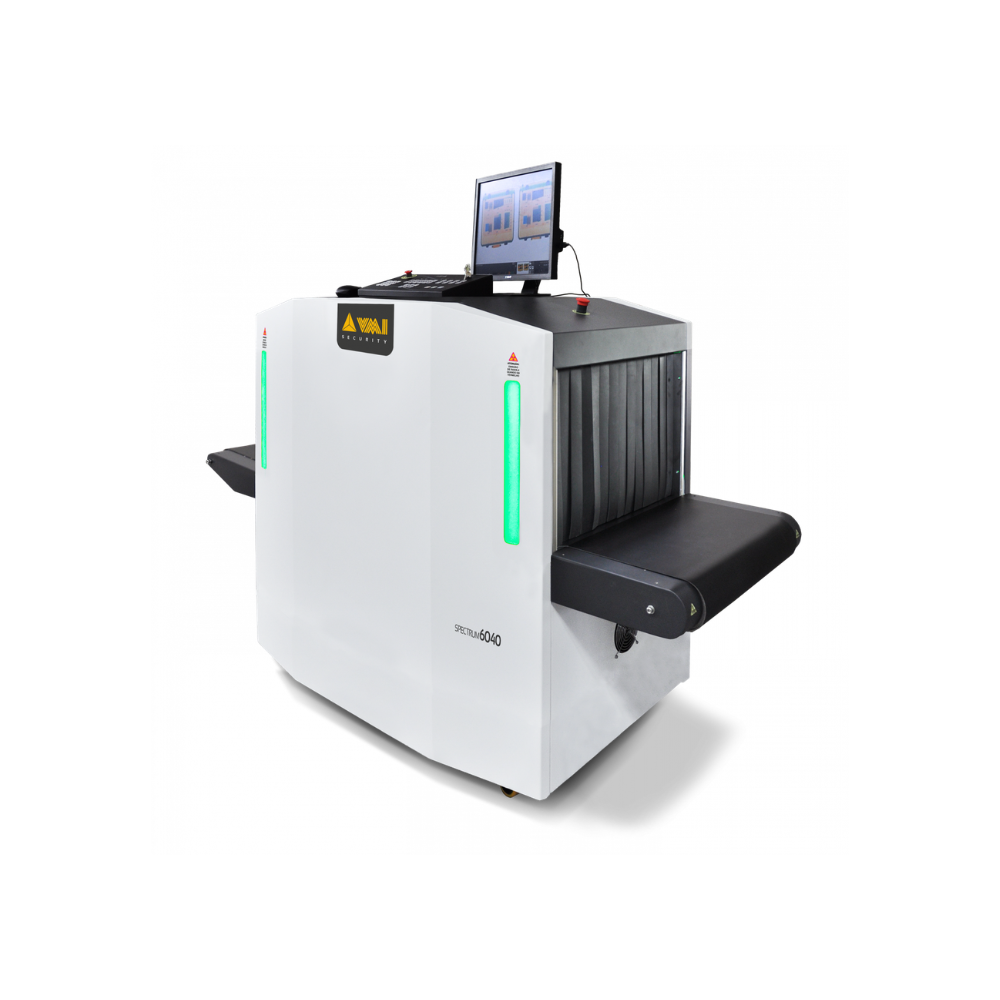

SPECTRUM 6040 X-Ray Inspection System

Description

Product Name: SPECTRUM 6040 X-Ray Inspection System

Manufacturer: VMI Security

Country of Origin: Brazil

Product Description

The SPECTRUM 6040 was designed to meet the needs of control and security systems that require high image quality for detecting illicit items. This equipment features real-time scanning and image generation, allowing for the real-time manipulation of images through its automatic detection of threats with color inversion. Consequently, this specific functionality provides more agility and efficiency to security systems during the inspection process.

The system operates with a standard 160kV generator, which runs at 150 kvA, and utilizes an L-shaped detector along with an insulating oil with forced air cooling system. It is engineered for diverse security environments, making it suitable for deployment in airports, prisons, railways, subways, stadiums, courts, and parcel services. Featuring a 620 mm × 424 mm inspection tunnel and a conveyor load capacity of up to 165 kg, the system is suitable for screening carry-on baggage, parcels, and other security-sensitive items.

Key Features

• Real-Time Image Generation & Scanning: The equipment allows real-time manipulation of images through its automatic detection of threats with color inversion. This function provides more agility and efficiency to security systems.

• Automatic Material Differentiation: It features automatic discrimination of organic, inorganic, and mixed materials. The system identifies these distinct material groups on screen by colorization.

• TIP Threat Image Projection: The system includes TIP threat image projection software. This tool enables continuous inspection with real-time image manipulation and color inversion.

• Automatic Detection Algorithm: The equipment operates with a built-in automatic detection algorithm. This system is specifically designed for the automatic identification of drugs, explosives, and high-density materials.

• High-Performance Imaging & Penetration: The system provides 40 AWG wire resolution, 42 mm steel penetration, zoom higher than 128×, edge highlighting, sharpness enhancement, and a high penetration function for detailed image analysis.

• Massive Image Storage Capacity: The scanner features an extensive storage capacity capable of saving over 200,000 images automatically. It allows image export in JPG, TIFF, and BMP formats, and can export to a secure VMI encrypted viewing application.

Technical Specifications

• Product Name: SPECTRUM 6040

• Manufacturer: VMI Security

• Country of Origin: Brazil

• Tunnel Dimensions: 620 mm (Width) × 424 mm (Height)

• Equipment Dimensions: 1985 mm (L) × 880 mm (W) × 1247 mm (H)

• Equipment Weight: 495 kg

• Wire Resolution: 40AWG

• Steel Penetration: 42 mm (160kV)

• Standard Generator: 160kV (operating at 150 kvA)

• Cooling System: Insulating oil with forced air cooling

• Beam Orientation: Diagonally upward

• Detector Type: L-shaped detector

• Conveyor Speed & Height: 0.24 m/s (configurable) | 700 mm height

• Maximum Conveyor Load: 165 kg (363.7 lbs)

• Monitor: Color, high resolution (configurable size)

• Power Supply & Power: 127, 220, 230VAC; 50Hz/60Hz | 680VA

• Operating Temperature/Humidity: 0°C to 40°C / 5% to 95% non-condensable

• Storage Temperature/Humidity: -40°C to 60°C / 5% to 95% non-condensable

• Standard Functions: Baggage counter, continuous scanning, color or black/white image, high density alert, self-diagnosis system, and network connection.

• Application Areas: Airports, prisons, railways, subways, stadiums, courts, and parcel services.

Conclusion

For control and security systems in Bangladesh, achieving high image quality for detecting illicit items is a primary requirement. The SPECTRUM 6040 addresses these operational needs by combining real-time scanning with an automatic threat identification system. For example, its automatic discrimination of materials by colorization allows security points at transport networks, government buildings, and parcel services to identify organic, inorganic, and mixed materials accurately.

By utilizing built-in algorithms for drugs, explosives, and high-density materials alongside a 40AWG wire resolution, the equipment supports operators in making quick decisions during screening. Furthermore, the integration of TIP software and a large storage capacity for over 200,000 images ensures continuous inspection capability. The SPECTRUM 6040 provides a reliable screening solution for airports, transportation hubs, government facilities, and parcel inspection centers that require efficient real-time X-ray inspection.

Get instant stock availability and the best price for the SPECTRUM 6040 X-Ray Inspection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
