Product Name: Steel Encased Wood Core Raised Access Floor System in Bangladesh
Manufacturer: Atflor
Product Overview

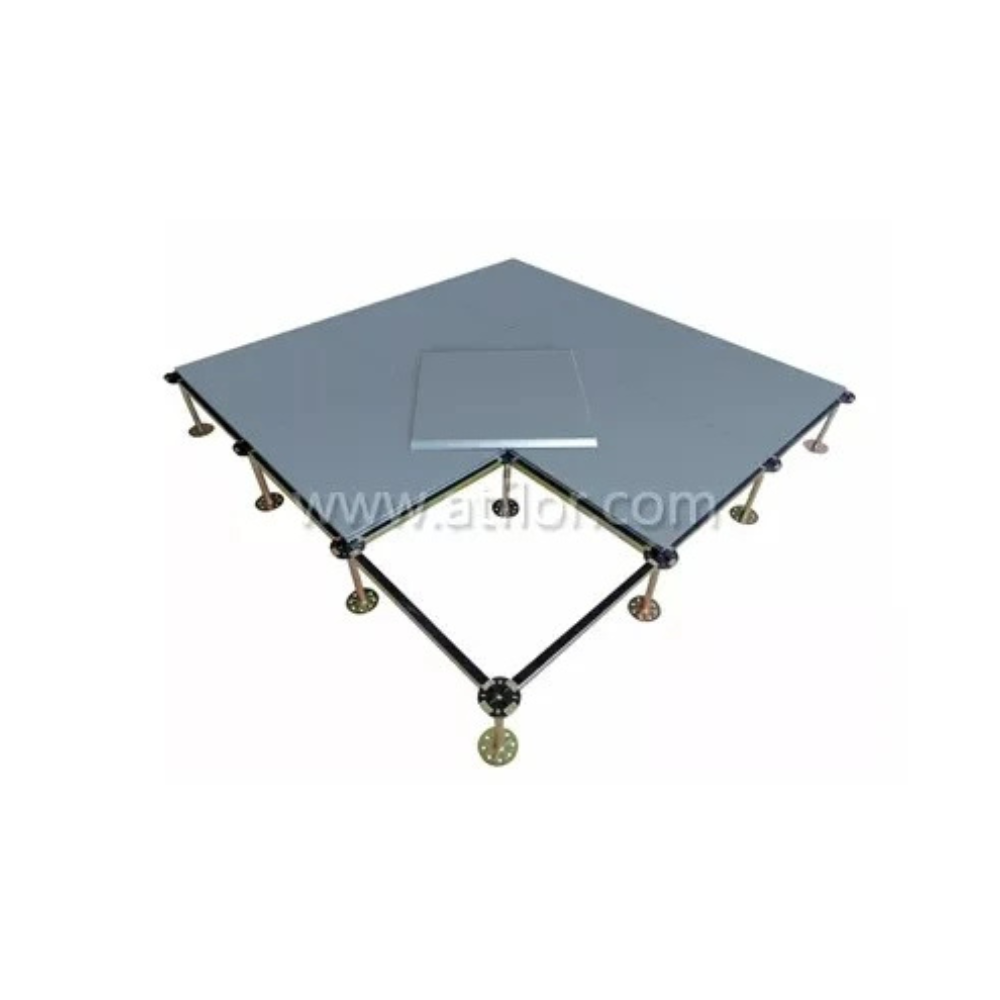

The Steel Encased Wood Core Raised Access Floor System (Product Types: FS662, FS800, FS1000, FS1250, and FS1500) features full galvanized steel encasement over a wood core to provide excellent sealing, high dimensional precision, and strong structural loading capabilities. Designed with high recyclability and convenient removal properties, it delivers an adaptable raised-floor solution for professional and technical environments.
Key Features
-
Full Galvanized Steel Encasement: Features galvanized steel plate encased around the wood core on six faces with steel-sealed edges, offering exceptional protection and sealing.
-
Versatile Surface Finish Compatibility: Compatible with a wide selection of top finish options including carpet, HPL, PVC tiles, or other preferred surface coverings.
-
Adjustable Pedestal System: Utilizes a die-casting steel structure pedestal with a top plastic gasket and adjustable height configurations ranging from 70mm to 1500mm, with or without square tube stringers for system stability.
-
Fire & Structural Performance: Features Fire Performance: A, along with specified concentrated load, impact load, ultimate load, uniform load, and rolling load performance across the different model tiers.
-
Access & Wiring Utility: Designed for assembly agility, providing ample space for large wire and cable management underneath the raised floor infrastructure.
Characteristic Specifications
-
Panel Composition: Galvanized steel plates encase the wood core on six faces, with steel-sealed edges and optional corner-lock holes.
-
Accessory Setup: Die-casting steel pedestal structure with plastic gasket and square tube stringer options (535 × 20 × 30 mm).
-
Pedestal Height Options: Configurable for finished floor heights (FFH) up to 600mm, 700mm to 900mm, and 1000mm to 1500mm with custom height capabilities.
-
Application Scope: Suited for computer rooms, network service engine rooms, control rooms, monitoring cabins, and professional office spaces requiring reliable underfloor cable management and raised-floor infrastructure.
Technical Specification
| Component / Parameter | FS662 | FS800 | FS1000 | FS1250 | FS1500 |
| Panel Size | $600 \times 600 \times 32 mm$ | $600 \times 600 \times 32 mm$ | $600 \times 600 \times 32 mm$ | $600 \times 600 \times 32 mm$ | $600 \times 600 \times 32 mm$ |
| Fire Performance | A | A | A | A | A |
| Concentrated Load (lb) | $\ge 662$ | $\ge 800$ | $\ge 1000$ | $\ge 1250$ | $\ge 1500$ |
| Impact Load | $\ge 2950 N$ | $\ge 3560 N$ | $\ge 4450 N$ | $\ge 5560 N$ | $\ge 6660 N$ |
Note: Specifications follow the manufacturer’s supplied information. Users should verify specific load ratings, dimensional configurations, and applicable standards with the original manufacturer datasheet.
Conclusion
The Steel Encased Wood Core Raised Access Floor System combines full galvanized steel encasement with a wood core structure, fire performance, and specified load parameters across the FS662 to FS1500 series. Featuring an adjustable steel pedestal structure, excellent sealing properties, and extensive wire management capacity, it provides a reliable raised-floor solution for computer rooms, network service engine rooms, control rooms, monitoring cabins, and professional office spaces.
