System Sensor MP120KL 120 VAC Adapter Mounting Plate Price in Bangladesh

Description

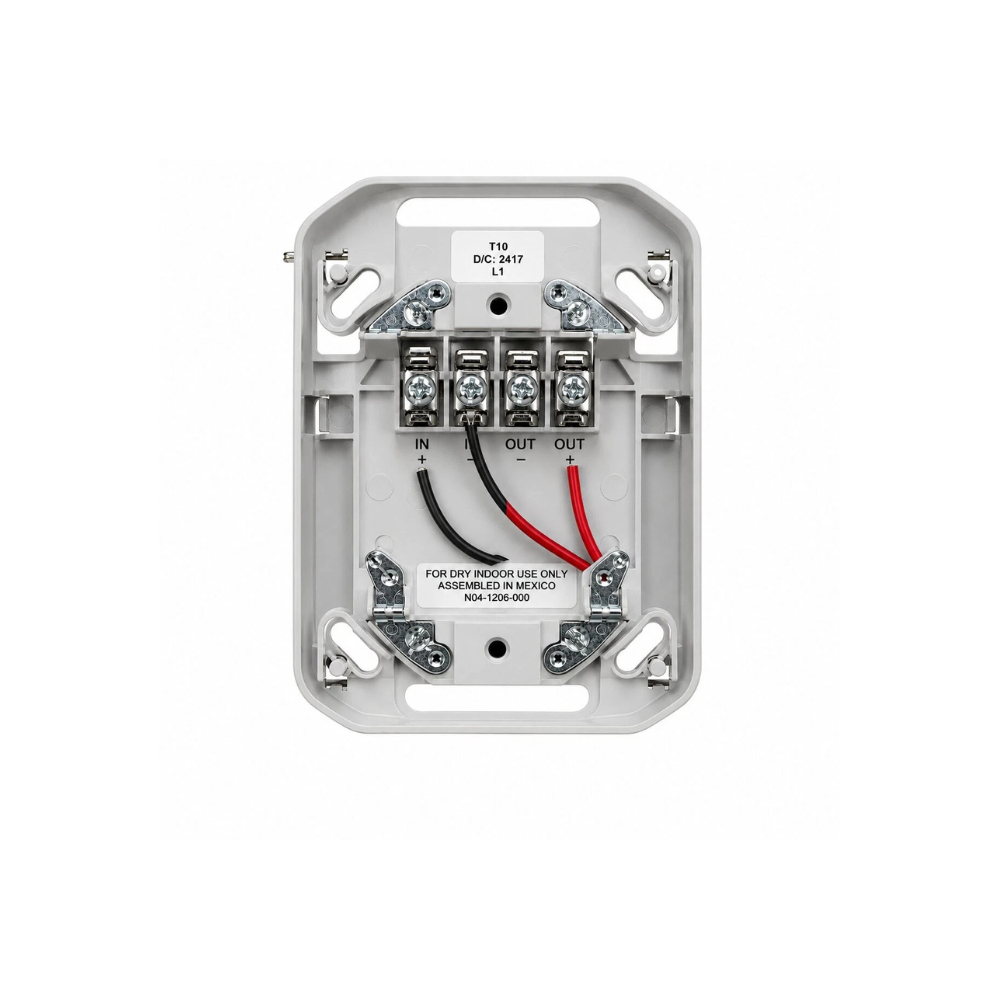

Product name: System Sensor MP120KL 120 VAC Adapter Mounting Plate Price in Bangladesh

Manufacturer: System Sensor (Honeywell)

Product Overview

The System Sensor MP120KL operates as a 120 VAC adapter mounting plate engineered to power compatible 2-wire System Sensor L-Series notification appliances from a 120 VAC electrical line supply. Furthermore, it incorporates internal power conversion circuitry that converts a regulated 120 VAC input down to a nominal 24 V FWR (Full Wave Rectified) output for the attached notification device.

In addition, the MP120KL simplifies retrofit and replacement applications where existing high-voltage 120 VAC field wiring is installed. By serving as both a voltage adapter module and a physical mounting interface, it provides reliable mechanical support for indoor L-Series horns, strobes, horn strobes, chimes, and chime strobes.

Key Benefits

• High-Voltage Circuit Integration: Adapts compatible 2-wire L-Series notification appliances to existing 120 VAC high-voltage wiring paths.

• Integrated Power Step-Down: Converts 120 VAC line power to nominal 24 V FWR output for attached appliances.

• L-Series Compatibility: Designed specifically for 2-wire L-Series indoor horns, strobes, horn strobes, chimes, and chime strobes.

• Simplified Retrofit Deployment: Fits standard 4 × 4 electrical junction boxes to facilitate system upgrades without rewiring line-voltage circuits.

Key Features & Compatibility Limitations

• Active Power Adapter Module: Built-in power supply converts 120 VAC line input directly to nominal 24 V FWR output.

• Non-Synchronous Operation Only: Operates exclusively in non-synchronous signaling applications; it is NOT compatible with System Sensor Sync•Circuit modules.

• Pigtail Field Wiring Connections: Features pre-attached pigtail lead wires designed for flexible, non-rigid wiring connections inside the electrical backbox.

• Standard Backbox Mounting: Compatible with standard 4 × 4 × 2⅛-inch electrical backboxes for indoor wall or ceiling installations.

Technical Specifications Overview

• Brand: System Sensor (Honeywell)

• Model: MP120KL

• Product Type: 120 VAC Adapter Mounting Plate

• Device Compatibility: Compatible two-wire System Sensor L-Series indoor appliances (Horn, Strobe, Horn Strobe, Chime, Chime Strobe)

• Synchronization Note: Non-synchronous applications only (Not compatible with System Sensor Sync•Circuit modules)

• Nominal Input Voltage: Regulated 120 VAC

• Operating Voltage Range: 96 V AC to 132 V AC

• Maximum AC Line Current Draw: 150 mA max

• Output Voltage: Nominal 24 V FWR

• Field Wiring Connections: Pigtail Lead Wires

• Required Backbox: 4 × 4 × 2⅛-inch Electrical Box

• Operating Temperature Range: −40°F to 151°F (−40°C to 66°C)

• Operating Humidity Range: 10% to 93% RH (non-condensing)

• Agency Compliance: UL 464 Listed

Conclusion

The System Sensor MP120KL 120 VAC Adapter Mounting Plate enables efficient integration of compatible 2-wire L-Series notification appliances with 120 VAC supply lines. Its onboard 120 VAC to nominal 24 V FWR power conversion, pigtail field wiring connections, standard 4 × 4 backbox mounting, and UL 464 listing provide reliable performance for non-synchronous commercial fire alarm retrofit and upgrade projects.
