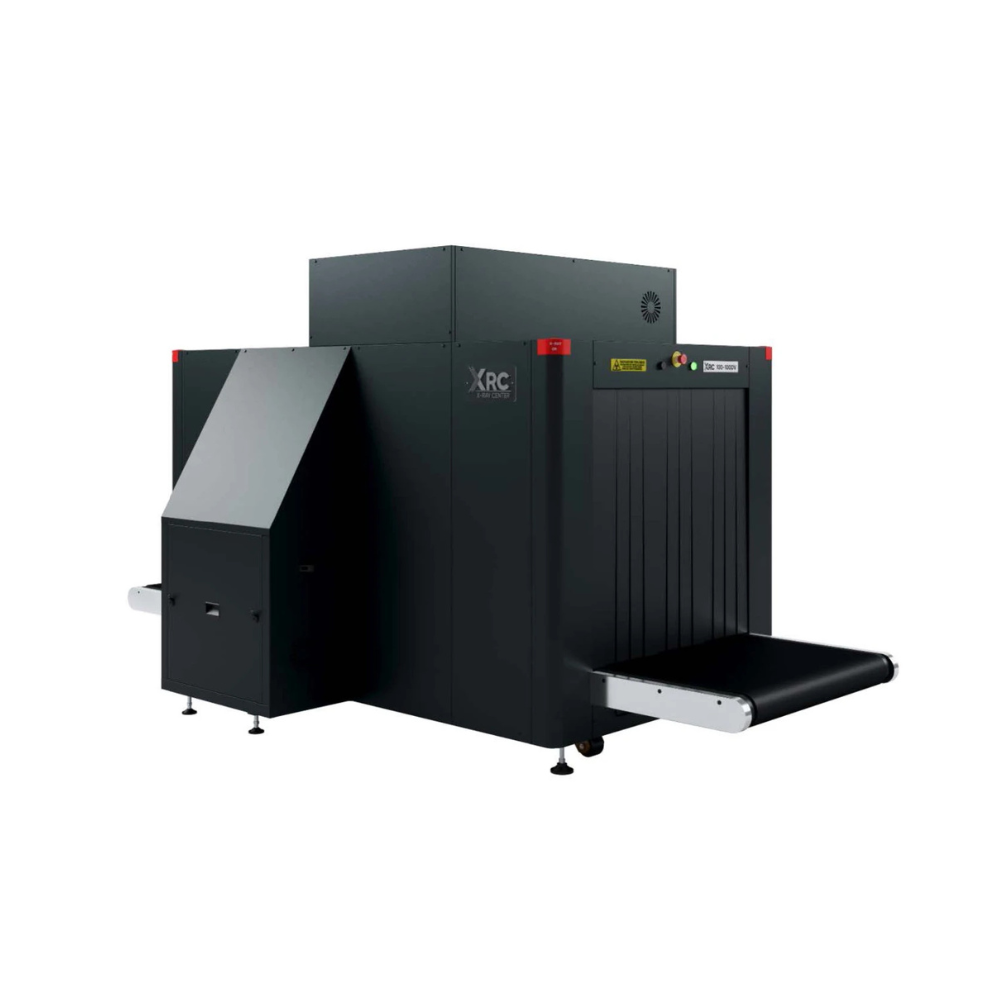

Unival XRC 100-100DV Dual-View X-Ray Baggage Scanner

Description

Product Name: Unival XRC 100-100DV Dual-View X-Ray Baggage Scanner

Manufacturer: Unival Group

Country of Origin: Germany

Product Description

The Unival XRC 100-100DV is an advanced dual-view X-ray baggage scanner. Specifically, it is engineered for high-traffic checkpoints, international logistics companies, and aviation security checkpoints. Furthermore, this high-performance system holds prestigious TSA ACSTL and STAC certifications. Featuring a spacious 1,000 mm × 1,000 mm tunnel, it smoothly handles large parcel shipments, heavy luggage, and bulky packages. Consequently, it serves as an ideal screening solution for facilities requiring rigorous security compliance without causing operational bottlenecks.

Additionally, the scanner integrates a dual-view (DV) imaging system. Indeed, this advanced setup utilizes two independent 180 kV X-ray generator sources. Moving at a steady speed of 0.20 m/sec in both forward and reverse directions, the conveyor maintains a high-volume throughput. At the same time, the dual-plane technology captures simultaneous horizontal and vertical images during a single scan. Therefore, this efficient system completely eliminates the need for package repositioning while significantly reducing overall screening error rates.

Furthermore, the machine delivers outstanding performance in threat detection. This capability is driven by a multi-diode structure that provides unique color-coded imaging. For instance, the integrated software isolates substances like organic matter, inorganic materials, and metals with precise accuracy. Moreover, it achieves a guaranteed 36 mm steel penetration and 38 AWG wire resolution. As a result, the platform provides superior effectiveness in detecting concealed objects, cutting tools, explosives, and narcotics during continuous screening workflows.

Key Features

• Dual-View Technology: The system features two independent generator sources. Therefore, it provides simultaneous horizontal and vertical imaging from a single scan. Consequently, it eliminates the need for manual package repositioning.

• Aviation-Grade Certification: Meeting international security standards can be challenging. However, this scanner is officially TSA ACSTL and STAC-certified. Thus, it fully complies with the strict mandates required for international aviation environments.

• Advanced Threat Detection: The specialized multi-diode architecture enables clear material discrimination. Specifically, it assists security operators in identifying hidden cutting tools, weapons, explosives, and narcotics efficiently.

• Deep Steel Penetration: Driven by high-voltage anode sources, the system achieves a guaranteed 36 mm steel penetration. In addition, it offers a 38 AWG wire resolution. Thus, operators can easily see through high-density parcels.

• Linux-Based Architecture: The control interface runs on a secure Linux operating system. Additionally, it is powered by an Intel Core i5 processor and a dedicated 2 GB video card to ensure smooth real-time imaging.

• Heavy Conveyor Design: Featuring a durable conveyor belt, the machine supports a maximum load capacity of 200 kg. Furthermore, a low conveyor height of 335 mm simplifies the manual loading and unloading of heavy packages.

Technical Specifications

• Product Name: XRC 100-100DV

• Manufacturer: Unival Group

• Country of Origin: Germany

• Tunnel Dimensions (W × H): 1,000 mm × 1,000 mm

• Anode Voltage: 180 kV (Operating at 165 kV)

• Tube Current: 1.0 mA

• Beam Direction: 1st: Vertical upwards / 2nd: Horizontal sideways

• Wire Resolution: 38 AWG Guaranteed (40 AWG Typical)

• Steel Penetration: 36 mm Guaranteed (40 mm Typical)

• Material Discrimination: Low Z, Medium Z, High Z to 0.5 Z accuracy (Organic, Inorganic, Metal)

• Conveyor Speed: 0.20 m/sec (Forward / Reverse)

• Conveyor Height: 335 mm

• Maximum Conveyor Capacity: 200 kg

• Cooling System: Oil and forced air cooling

• PC Specifications: Intel Core i5 Processor, 4 GB RAM, 2 GB Video Card, 1 TB Hard Drive

• Operating System: Linux

• Monitor: 21.5″ Flat Screen

• Overall Dimensions (L × W × H): 3,650 mm × 1,865 mm × 1,810 mm

• System Weight (Unpacked): ~1,340 kg

• System Power Requirements: 110/220V AC ± 10%, 50/60 Hz, 5A Max

Application Areas

High-traffic checkpoints, aviation security checkpoints, customs border crossings, city transportation hubs (metro, ferry, train stations), courier depots, prisons, and goods acceptance points.

Conclusion

For busy transit facilities and international logistics hubs in Bangladesh, maintaining strict security without delaying cargo processing is a vital objective. Fortunately, the Unival XRC 100-100DV Dual-View X-Ray Scanner addresses these challenging demands through certified multi-angle imaging and a highly efficient processing workflow.

Thus, its dual 180kV generator configuration and precise material discrimination software assist operators in identifying weapons, explosives, cutting tools, and narcotics accurately. Therefore, it makes an excellent choice for Bangladeshi airport security gates, customs ports, land border checkpoints, and courier delivery hubs.

In addition, its expansive 1,000 mm × 1,000 mm tunnel dimension and rugged 200 kg conveyor facilitate reliable freight screening in demanding workspaces. These advanced multi-diode imaging configurations successfully optimize security workflows and maintain rapid throughput rates simultaneously. Consequently, the Unival XRC 100-100DV stands out as a highly dependable, high-performance security asset for critical infrastructure in Bangladesh.

For pricing, availability, and technical consultation regarding the Unival XRC 100-100DV Dual-View X-Ray Scanner in Bangladesh, please contact us.
