Unival XRC 60-40P Compact Handbag and Parcel X-Ray Scanner

Description

Product Name: Unival XRC 60-40P Compact Handbag and Parcel X-Ray Scanner

Manufacturer: Unival Group

Country of Origin: Germany

Product Description

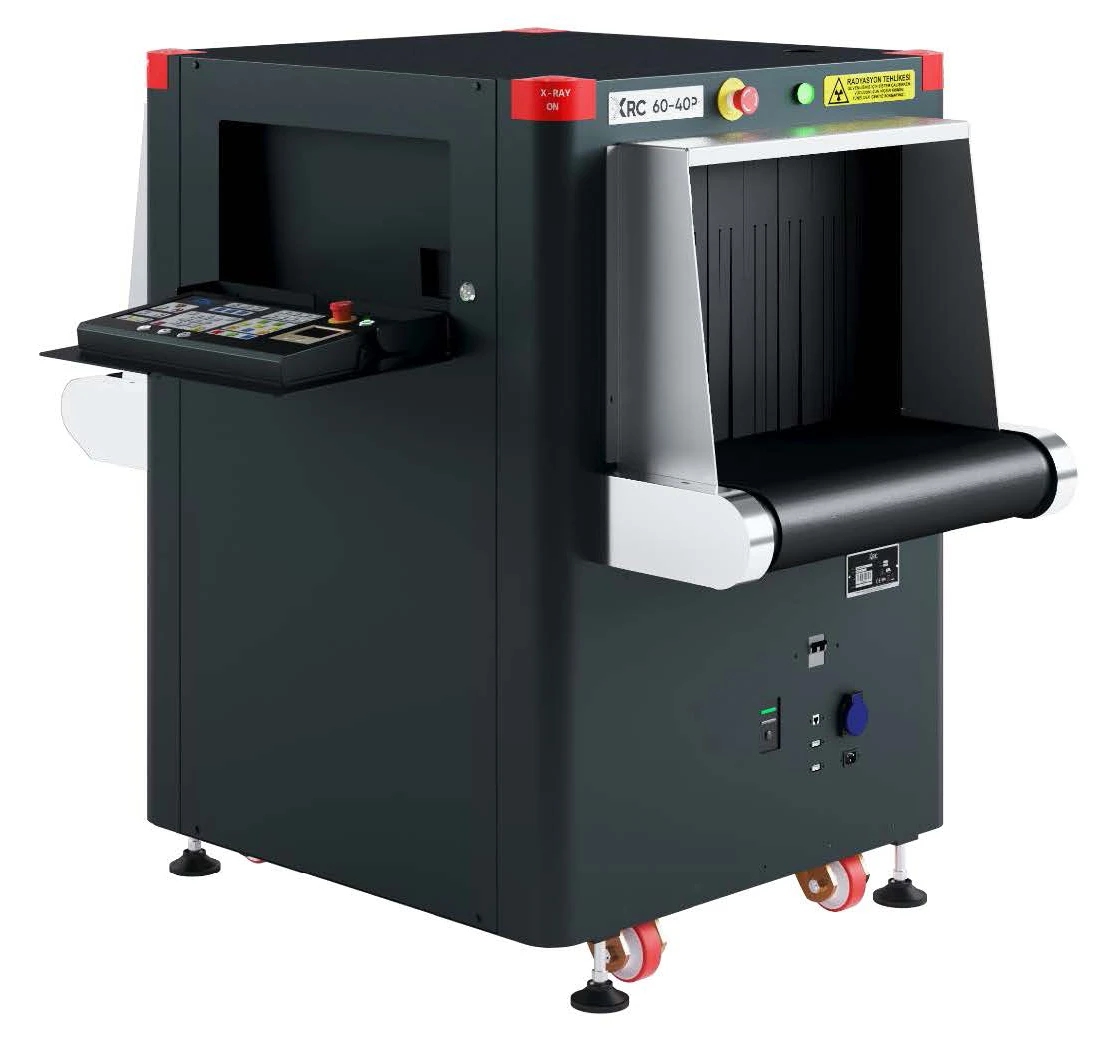

The Unival XRC 60-40P is a compact, space-efficient transmission X-ray inspection system. Specifically, it is engineered for the detailed screening of small handbags, packages, parcels, and cabin baggage. Furthermore, this agile security scanner features the specialized “P” designation, indicating a portable footprint optimized for tight security checkpoints and environments with restricted operational space. Featuring a practical 610 mm × 420 mm tunnel opening, the machine seamlessly manages standard checkpoint items. Consequently, it serves as an ideal solution for facilities requiring thorough security screening without creating pedestrian bottlenecks.

Additionally, the scanner integrates a reliable conveyor belt system built into a space-saving chassis. Indeed, this rugged mechanical setup supports an evenly distributed maximum load capacity of 165 kg. Moving at a steady pace, the system maintains consistent throughput across peak operational hours while keeping installation footprints minimal. At the same time, the optimized beam geometry passes cleanly through moving items to record immediate internal layouts. Therefore, this efficient system speeds up checkpoint clearance times while significantly improving overall processing efficiency in confined areas.

Furthermore, the system features a refined imaging architecture backed by a robust generator. Operating up to 170 kV, this high-voltage source delivers strong penetration performance and exceptional density-based color imaging. Security operators can evaluate scans with high accuracy using automated material separation algorithms. For instance, the integrated platform accurately differentiates organic, inorganic, and mixed composite materials to help reduce operator fatigue. As a result, the platform significantly assists operators in identifying hidden cutting tools, weapons, explosives, or narcotics inside small parcels and personal bags.

Key Features

• Compact Portable Architecture: Managing high-security checkpoints can be challenging in restricted environments. However, this scanner offers a highly optimized, space-saving footprint. Thus, it easily integrates into cramped entryways, narrow corridors, and temporary security setups.

• High-Voltage Penetration: Driven by a powerful anode source, the system provides up to 37 mm steel penetration and 38/40 AWG wire resolution. Thus, operators can easily see through high-density packages, cluttered handbags, and layered travel gear.

• Advanced Material Separation: The specialized multi-energy imaging structure enables clear material discrimination. Specifically, it assigns color codes to organic, inorganic, and mixed composite elements to isolate hidden threats, contraband, and metallic items.

• Durable Mechanical Engineering: Loading heavy commercial parcels causes significant impact wear over time. Fortunately, the reinforced conveyor belt handles up to 165 kg of distributed weight while maintaining a comfortable 730 mm operational height.

• Secure Hardware Control Interface: The core system runs on a highly stable infrastructure powered by an Intel Core i5 processor (or better) and extensive local storage. This modern computing setup guarantees lag-free image processing and secure system logs.

• Cost-Effective Operations: Designed with a lower power draw and an efficient internal architecture, this machine significantly reduces long-term operational costs. Additionally, it features an intuitive interface with programmable function keys for ease of use.

Technical Specifications

• Product Name: XRC 60-40P (Compact Handbag and Parcel)

• Manufacturer: unival group

• Country of Origin: Germany

• Tunnel Dimensions (W × H): 610 mm × 420 mm

• Anode Voltage: Up to 170 kV

• Steel Penetration: Up to 37 mm (depending on material density)

• Wire Resolution: 38 AWG guaranteed / 40 AWG typical

• Conveyor Height: 730 mm

• Maximum Conveyor Capacity: 165 kg (Evenly Distributed Load)

• Cooling System: Closed oil and forced air cooling

• Operational Safety: Compliant with applicable radiation safety regulations

• Standards & Safety Compliance: Compliant with CE standards

• PC Specifications: Intel Core i5 Processor (or superior), 4 GB RAM (or more), 1 TB HDD

• Overall Dimensions (L × W × H): 1427 mm x 1270 mm x 870 mm

• System Weight (Approx.): ~455 kg

Application Areas

Courts, police departments, government offices, corporate buildings, shopping malls, prisons, hotels, bank vaults, and temporary high-security event checkpoints.

Conclusion

For commercial establishments, corporate headquarters, and high-security public infrastructure in Bangladesh, managing checkpoint security without creating logistical bottlenecks is a key operational challenge. Fortunately, the Unival XRC 60-40P Compact Handbag and Parcel X-Ray Scanner addresses these demanding requirements through its space-saving portable architecture and reliable imaging capacity.

Thus, its precise generator configuration and advanced material discrimination software assist operators in identifying weapons, explosives, knives, and drugs efficiently. Therefore, it makes an ideal choice for Bangladeshi corporate offices, government institutions, shopping complexes, and secure entry points.

In addition, its optimized tunnel dimensions and robust 165 kg conveyor capacity facilitate reliable baggage and small parcel screening in demanding environments. These specialized imaging configurations successfully streamline entryway workflows and manage continuous passenger throughput effectively. Consequently, the Unival XRC 60-40P stands out as a highly dependable, high-performance X-ray baggage screening asset for critical checkpoints in Bangladesh.

For pricing, availability, and technical consultation regarding the Unival XRC 60-40P Compact Handbag and Parcel X-Ray Scanner in Bangladesh, please contact us.
