UPS Battery Price in Bangladesh

Description

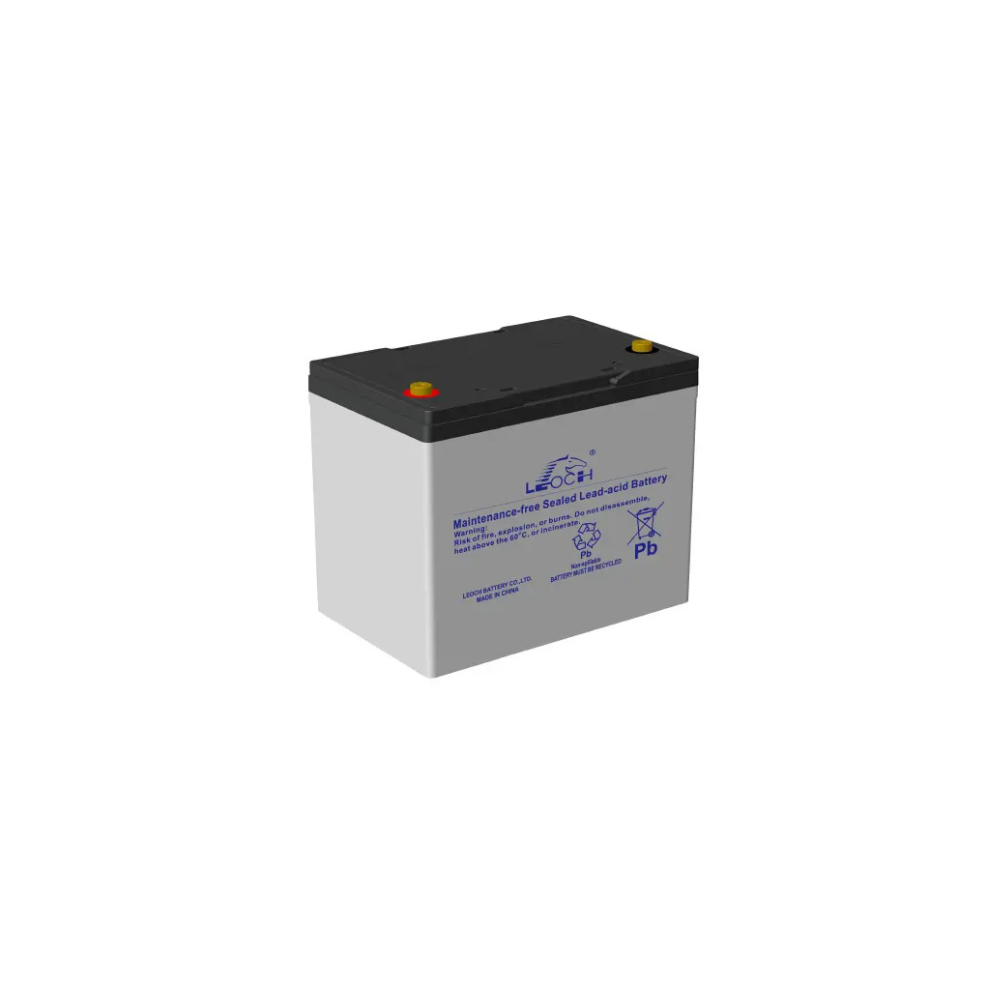

Product Name: UPS Battery Price in Bangladesh

Brand: Leoch

Product Overview

The UPS Battery is specified as a Sealed Lead Acid (SLA), Valve Regulated Lead Acid (VRLA), and maintenance-free battery. Furthermore, the quantity is specified as per requirement, totaling 20 pcs for a Vertiv 10kVA UPS bank. Moreover, this battery unit features a nominal voltage of $12\text{ V DC}$. Additionally, it provides a capacity of $40\text{ Ah}$ and T6 (M6 bolt type) terminals.

Key Features

• Type & Characteristics: The battery features a Sealed Lead Acid (SLA), Valve Regulated Lead Acid (VRLA), and maintenance-free design.

• Electrical Rating: Furthermore, it provides a nominal voltage of $12\text{ V DC}$. Additionally, it delivers a capacity of $40\text{ Ah}$ alongside a maximum charging current of $0.3\text{C}$.

• Physical Characteristics: It is built with T6 (M6 bolt type) terminals. Moreover, its dimensions measure $197\text{ mm (L)} \times 165\text{ mm (W)} \times 170\text{ mm (H)}$. Finally, it weighs approximately $13.7\text{ kg}$.

• Operating Conditions: Additionally, it offers a design life of approximately 8 years at $25^\circ\text{C}$. Furthermore, the discharge temperature ranges from $-15^\circ\text{C}$ to $+50^\circ\text{C}$. Consequently, the charging temperature ranges from $-20^\circ\text{C}$ to $+40^\circ\text{C}$.

Technical Specifications

• Item Name: UPS Battery

• Model: Leoch LP12-40

• Country of Origin: China

• Country of Manufacture: China

• Quantity: As per requirement (20 pcs for Vertiv 10kVA UPS bank)

• Performance Features: It is compatible with 20 batteries connected in series to form a $240\text{ V DC}$ bus for Vertiv 10kVA UPS systems. Furthermore, it features a maintenance-free VRLA design requiring no water refilling. Moreover, it includes a sealed leak-free and fire-safe construction. Finally, it utilizes an AGM separator with PbCaSn alloy for low self-discharge and extended service life.

• Compliance Standards: It is CE certified and complies with applicable IEC standards.

• Mandatory Requirements: The unit must measure exactly $197 \times 165 \times 170\text{ mm}$, as other sizes are unacceptable. Furthermore, it must feature T6 (M6 bolt type) terminals. Moreover, it must have a $40\text{ Ah}$ capacity, since lower or higher capacities are unacceptable for the UPS bank. Additionally, it must feature a minimum design life of 8 years @ $25^\circ\text{C}$. Finally, it must support the Vertiv UPS 10kVA DC bus configuration.

Compliance and Support Details

• Warranty & Service Support: The bidder shall provide 3 Years Comprehensive Service Support with Warranty. Furthermore, this includes free spare parts and installation assistance.

Conclusion

In conclusion, the UPS Battery utilizes the Leoch LP12-40 model. Therefore, it successfully meets all technical, physical, and capacity requirements for high-availability backup power systems.
