VDWall LVP605 LED Video Wall Controller Price in Bangladesh

Description

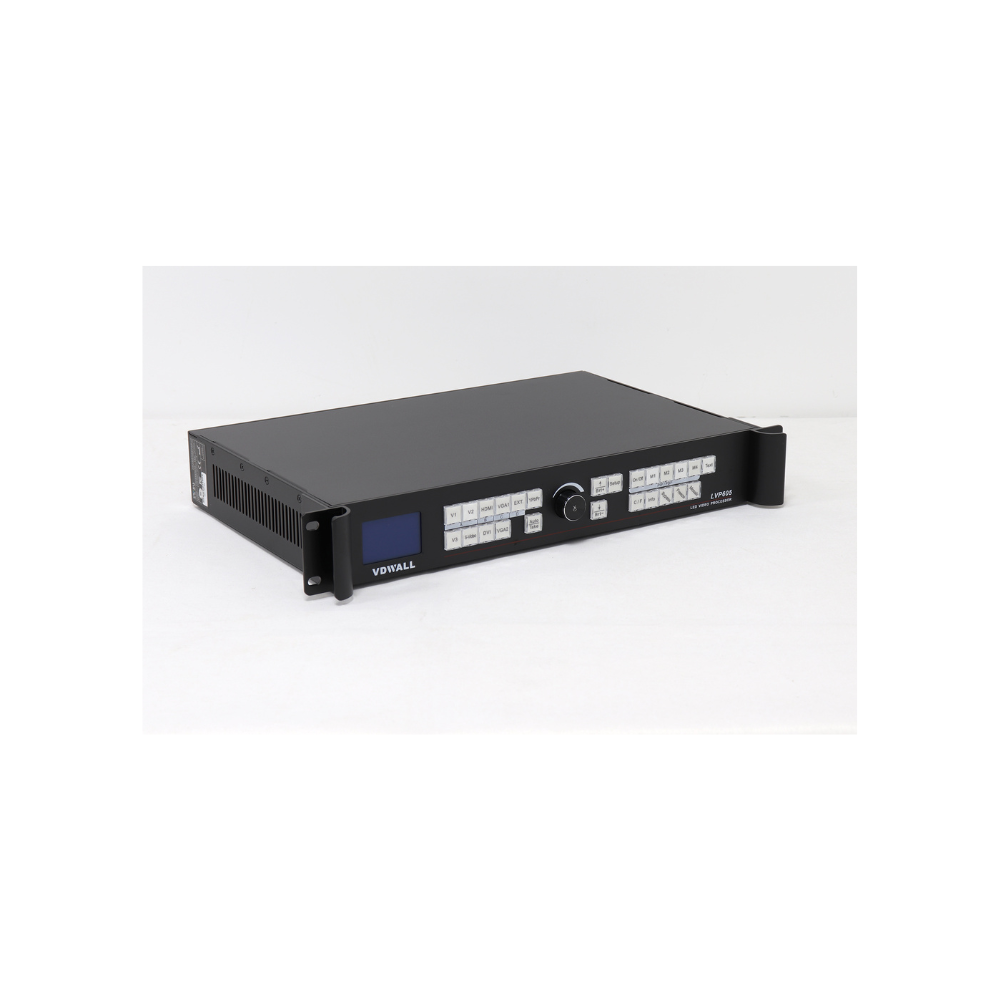

Product Name: VDWall LVP605 LED Video Wall Controller Price in Bangladesh

Brand: VDWall

Product Overview

The video wall controller is specified for video wall controller applications. Furthermore, it is specifically designated as the LVP605 LED Video Processor Controller for Stage Events & Video Walls model. Moreover, the system provides 10+ bit Faroudja DCDI cinema processing, 4×4 pixel interpolation scaling, and multi-unit parallel installation capabilities.

Key Features

• Video Processing & Scaling: The controller features Faroudja Real Color and Faroudja TrueLife video enhancers. Furthermore, it uses advanced 4×4 pixels interpolation scaling with independent H and V scaling ratios.

• Channels & Inputs: It supports 10 total input channels including 3 composite, 1 S-video, 1 YPbPr, 2 VGA, 1 HDMI, 1 DVI, and 1 EXT. Therefore, the system accommodates PC resolutions up to 2048 x 1152 at 60Hz and SD/HD standards up to 1920 x 1080 at 60Hz.

• Outputs & Display Features: The unit provides 1 VGA and 2 DVI outputs with a maximum resolution of 2048 x 1152 for a single unit. Furthermore, it supports seamless switching, fade-in/fade-out, 4 PIP/POP modes, HD text/graphics/logo overlay, and picture freeze.

• Audio & Control: It supports 5-channel synchronous switching including 2 external stereo plus DVI/HDMI/SDI audio, with an audio scope/impedance of 2.0Vp-p / 10 kΩ. Moreover, it features front panel buttons/knobs and RS232 command support for operational control.

Technical Specifications

• Item Name: Video Wall Controller

• Model: LVP605 LED Video Processor Controller for Stage Events & Video Walls

• Build & Dimensions: The unit features product dimensions of 483 mm (W) x 66.75 mm (H) x 326 mm (D) with a net weight of 3.2 kg and gross weight of 5.0 kg.

• Power & Environment: It operates on 100-240VAC, 50/60Hz with a power consumption of 35W. Furthermore, it supports an operating temperature of 5–40°C with 15–85% humidity.

• Transmission Card Support: Features built-in support for 2 LED transmission cards (optional sending cards).

Standards, Compatibility & Support

• Standards & Approvals: The system supports HDCP for HDMI and DVI inputs, HDMI 1.3a specifications, SMPTE 274M, 296M, and 292M compliance. Furthermore, it adheres to VESA PC display standards support up to 2048 x 1152 at 60Hz, CEA-861 SD/HD television standards, and PAL/NTSC composite video systems.

• Warranty: Not specified in the offered data.

Conclusion

In conclusion, the VDWall LVP605 Video Wall Controller features Faroudja video processing, 10 input channels, multi-unit parallel installation capabilities, Hot Spare function, and 24/7 application suitability.
