Emerson Vertiv™ CoolPhase Perimeter Compact Cooling System PX011 (29kW, R454B) | Data Center Cooling in Bangladesh

Description

Product Name: Vertiv™ CoolPhase Perimeter Compact Cooling System PX011 (11kW, R454B) | Data Center Cooling in Bangladesh

Manufacturer: Vertiv

Product Overview

The Vertiv™ CoolPhase Perimeter (PX011) is a compact direct expansion precision cooling system designed for mission-critical environments. It comes standard with R-454B refrigerant for low GWP regulatory compliance, delivering reliable, efficient cooling capacity that reduces environmental impact without compromising on performance.

Key Features and Benefits

• High Efficiency: Standard EC fans, optimized heat exchangers, and industry-leading intelligent controls deliver superior energy optimization.

• Low GWP Refrigerant: Utilizes R-454B refrigerant to reduce carbon footprint and meet environmental standards.

• Flexible Design: High-density design supports loads of more than 3.6kW per square foot with multiple system designs including air-cooled, water/glycol cooled, glycol-free cooling, and dual cool modes.

• Air Configurations: Upflow, downflow, front or side air discharge configurations with a split-system design allowing high application flexibility.

• Self-Optimizing Controls: Integrated controls with advanced algorithms for air temperature and fan speed coordination automatically manage unit operation to maximize performance.

Technical Specifications

• Brand: Vertiv

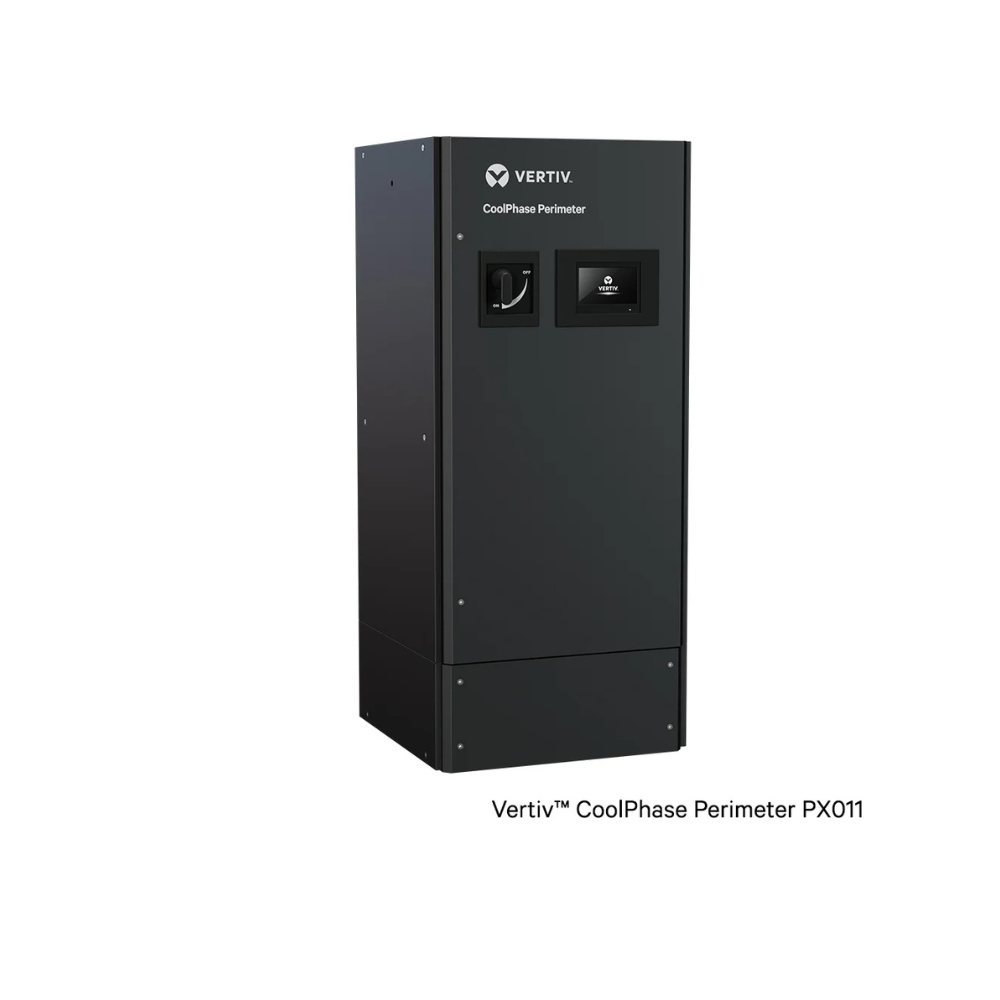

• Model: PX011 (Vertiv™ CoolPhase Perimeter)

• Nominal Cooling Capacity: 11 kW (37.5 kBTU/hr)

• Net Sensible Capacity: 9.5 kW (32.4 kBTU/hr)

• Nominal Air Flow: 1,800 CFM (approx. 3,060 $m^3/h$)

• Unit Dimensions (H × W × D): 1,970 mm × 876 mm × 879 mm (77.375 in × 34.5 in × 34.625 in)

• Unit Weight: 272 kg (600 lbs)

• Refrigerant Type: R-454B

• Air Filter: MERV 8 or MERV 11

• Optional Add-ons: Electric Reheat, Humidifier

• Operating Air Temperature Limits: Minimum Return Air 68°F (20°C); Maximum Return Air 100°F (37.7°C); Maximum Dew Point 59°F (15°C)

Ideal Applications

• Small and medium data centers

• Telecommunications switching offices

• Industrial process control

• Laboratories and medical imaging suites

Conclusion

The Vertiv™ CoolPhase Perimeter PX011 delivers 11 kW of precision cooling capacity in a space-saving compact form factor, providing small to medium IT environments with high energy efficiency, low GWP R-454B refrigerant compliance, and flexible deployment configurations.

Contact Us

For accurate pricing inquiries, stock availability, and enterprise/bulk procurement of Vertiv data center cooling solutions in Bangladesh, get in touch with our team:

• Phone: +8801737118246

• Email: [email protected]
