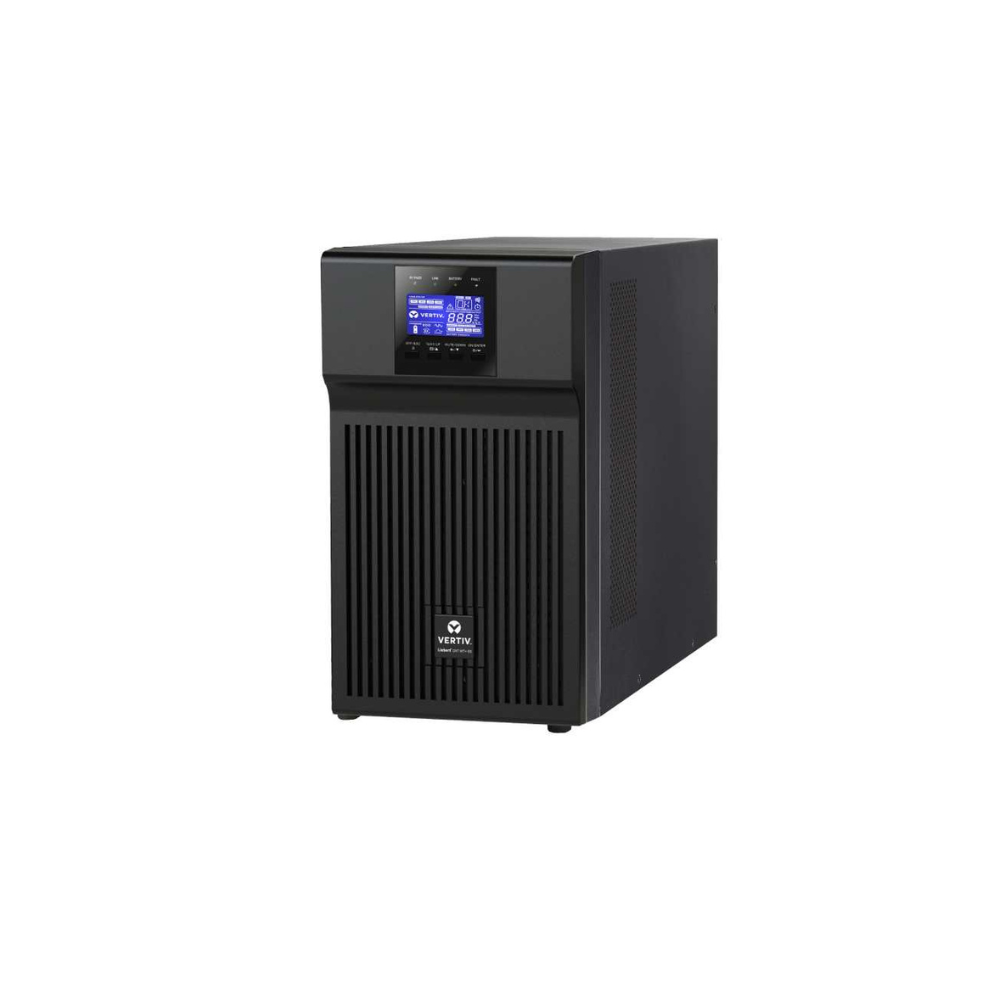

Vertiv Liebert GXT MT+EX 6KVA Online UPS Best Price in Bangladesh

Description

Product Name: Vertiv Liebert GXT MT+EX 6KVA Online UPS Best Price in Bangladesh

Manufacturer: Vertiv

Product Overview

The Vertiv Liebert GXT MT+EX 6KVA is a high-performance true online double-conversion UPS designed for long-backup, mission-critical applications. Incorporating advanced DSP control technology and an IGBT-based rectifier, it delivers up to 93% efficiency, a 0.9 output power factor, and reliable pure sine wave protection for enterprise servers, communication systems, data centers, and sensitive IT infrastructure across Bangladesh.

Key Features and Benefits

• True Online Double Conversion: Continuously converts incoming AC to DC and back to AC, completely isolating connected electronics from spikes, surges, sags, and utility power interruptions.

• DSP Control & IGBT Rectifier: Advanced microprocessor control and IGBT-based rectification guarantee superior system performance, high reliability, and low harmonic distortion.

• High Efficiency & Power Factor: Offers up to 93% double-conversion efficiency, active input power factor correction ($\ge 0.99$), and a 0.9 output power factor.

• 4-Stage Extendable Charging Design: Features adjustable battery charging current (1/2/4/6 Amps) to optimize performance and lifespan across various battery bank capacities.

• Wide Input Voltage & Frequency Window: Accommodates a broad input range (110V–300V based on load) and 46Hz–64Hz frequency range, ensuring seamless generator compatibility.

• Real-Time Graphical LCD Display: Provides comprehensive system data, real-time status updates, load/battery levels, and built-in fault diagnostics.

• Flexible Communication & Management Options: Includes standard RS232/USB ports alongside intelligent slots for optional SNMP, Modbus, dry contact, or Vertiv Liebert IntelliSlot™ RDU120 cards.

Technical Specifications

• Brand: Vertiv

• Country of Origin: USA

• Country of Manufacture: China

• Model: GXT MT+EX (6KVA Long-Run Model)

• Configuration: Single phase with ground (1 Phase In / 1 Phase Out)

• Capacity (VA / Watts): 6000VA / 5400W (0.9 Output Power Factor)

• Nominal Input Voltage: 208 / 220 / 230 / 240 VAC

• Input Voltage Range: 110V – 300 VAC (Based on load at 50%); 176V – 300 VAC (Based on load at 100%)

• Input Frequency Range: 40–70 Hz

• Input Power Factor: $\ge 0.99$ @ nominal voltage (100% load)

• Output Voltage Options: 208 / 220 / 230 / 240 VAC (Configurable)

• AC Voltage Regulation: $\pm 1\%$

• Output Waveform: Pure Sine Wave

• Transfer Time:0 ms (AC→Battery), 4 ms (Inverter→Bypass)

• Harmonic Distortion: $<2\%$ THD (linear load); $<5\%$ THD (non-linear load)

• AC-to-AC Efficiency: Up to 93%

• Battery Mode Efficiency: Up to 91%

• Battery Configuration: Long-run model supporting external battery banks (16 to 20 blocks; default based on 16 pcs)

• Charging Current & Voltage: Default 4A (settable to 1/2/4/6A); Charging Voltage: 218 VDC $\pm 1\%$ (for 16 pcs batteries)

• Physical Dimensions (Long-run Model): 369 × 190 × 318 mm

• Net Weight: 12 kg

• Communication Ports: Smart RS232 / USB, built-in intelligent slot for optional cards

• Management Support: Supports Windows, Linux, Unix, and MAC operating systems; optional SNMP, Modbus, or dry contact management

• Operating Environment: 0°C to 40°C (Humidity: 0% to 95% non-condensing, Operation Altitude: $<1000\text{ m}$, Noise Level: Less than 55 dBA at 1 meter)

Ideal Applications

• Small to Medium Data Centers and Server Rooms

• Enterprise IT Infrastructure and Telecom Equipment

• VoIP and Critical Communication Systems

• Financial ATM Networks and POS Terminals

• Industrial Control Rooms and Sensitive Medical Devices

Conclusion

The Vertiv Liebert GXT MT+EX 6KVA Online UPS combines high energy efficiency, robust external battery support, and advanced digital control, making it an ideal long-backup power solution for critical business operations across Bangladesh.
