Description

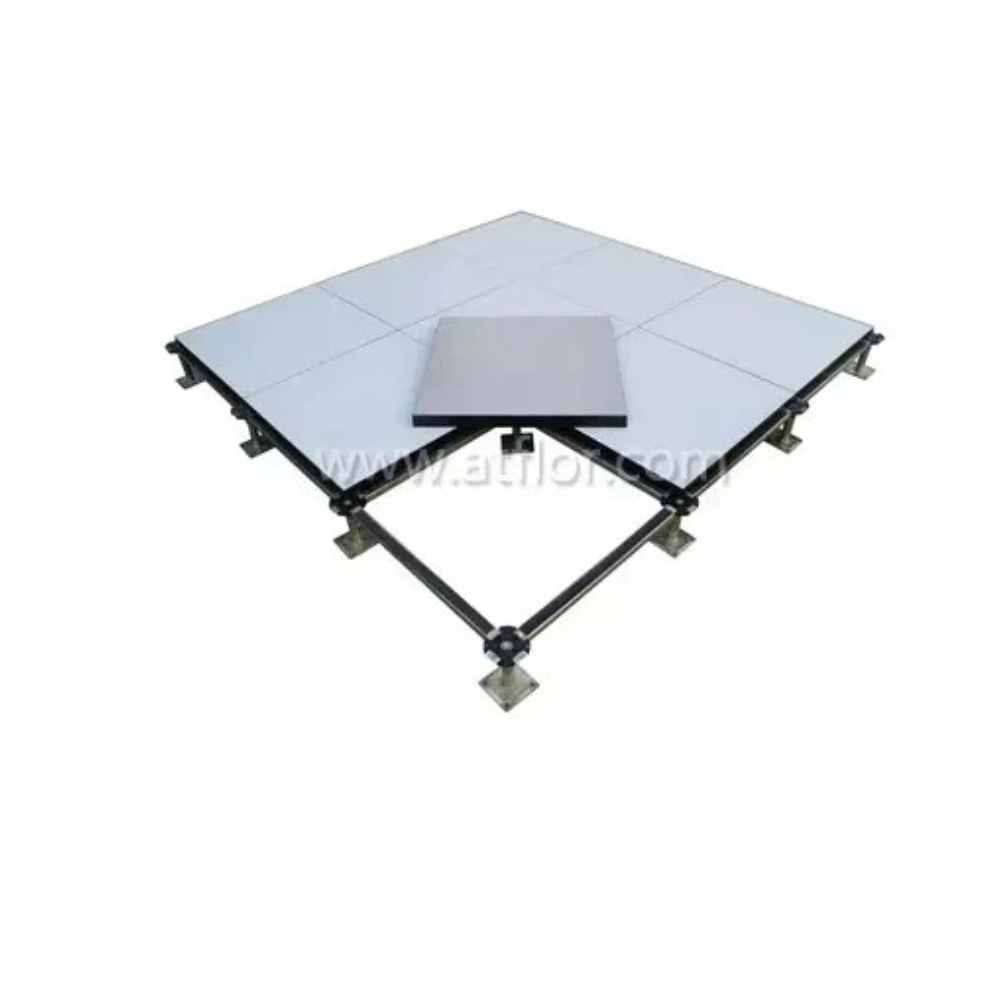

Product Name: Wood Core Raised Access Floor System in Bangladesh
Manufacturer: Atflor
Product Overview
The Wood Core Raised Access Floor System (Product Types: FS440, FS662, FS800, and FS1000) is engineered using high-density particle board with sound-proof properties and PVC/ABS edge trim. Built to deliver high dimensional precision, strong structural loading ability, and shockproof performance, it provides an adaptable raised-floor solution for computer rooms, control rooms, and modern professional environments.
Key Features
-
High-Density Wood Core Construction: Features a 30mm or 38mm thick high-density particle board core with PVC/ABS covered four edges and steel or aluminum bottom plates.
-
Versatile Surface Finish Compatibility: Compatible with a wide selection of top finish options including carpet, HPL, PVC, steel plates, aluminum foil, or other preferred surface tiles.
-
Adjustable Pedestal System: Utilizes a die-casting steel structure pedestal with a top plastic gasket and adjustable height configurations ranging from 70mm to 1500mm, with or without square tube stringers for system stability.
-
Fire & Structural Performance: Features a B1 fire performance rating, offering dependable concentrated load, impact load, and mechanical performance across various model tiers.
-
Access & Wiring Utility: Designed for assembly agility, providing ample space for large wire and cable management underneath the raised floor infrastructure.
Characteristic Specifications
-
Panel Composition: High-density particle board core, PVC/ABS edge trim, steel/aluminium bottom plate, and customizable top tiles.
-
Accessory Setup: Die-casting steel pedestal structure with plastic gasket and square tube stringer options ($535 \times 20 \times 30 mm$).
-
Pedestal Height Options: Configurable for finished floor heights (FFH) up to 600mm, 700mm to 900mm, and 1000mm to 1500mm with custom height capabilities.
-
Application Scope: Suited for computer rooms, network service engine rooms, control rooms, monitoring cabins, and top-grade office spaces requiring sturdy wire management and static-control infrastructure.
Technical Specification
| Component / Parameter | FS440 | FS662 | FS800 | FS1000 |
| Panel Size | $600 \times 600 \times 32 mm$ | $600 \times 600 \times 40 mm$ | $600 \times 600 \times 40 mm$ | $600 \times 600 \times 40 mm$ |
| Fire Performance | B1 | B1 | B1 | B1 |
| Concentrated Load | $\ge 440 kgf/6.45cm^2$ | $\ge 662 kgf/6.45cm^2$ | $\ge 800 kgf/6.45cm^2$ | $\ge 1000 kgf/6.45cm^2$ |
| Impact Load | $\ge 1960 N$ | $\ge 2950 N$ | $\ge 3560 N$ | $\ge 4450 N$ |
Note: Specifications follow the manufacturer’s supplied information. Users should verify specific load ratings, dimensional configurations, and applicable standards with the original manufacturer datasheet.
Conclusion
The Wood Core Raised Access Floor System combines high-density particle board construction with flexible surface finish options, B1 fire performance, and specified load parameters across the FS440 to FS1000 series. Featuring an adjustable steel pedestal structure and extensive wire management capacity, it provides a reliable raised-floor solution for computer rooms, data centers, and modern office spaces.
