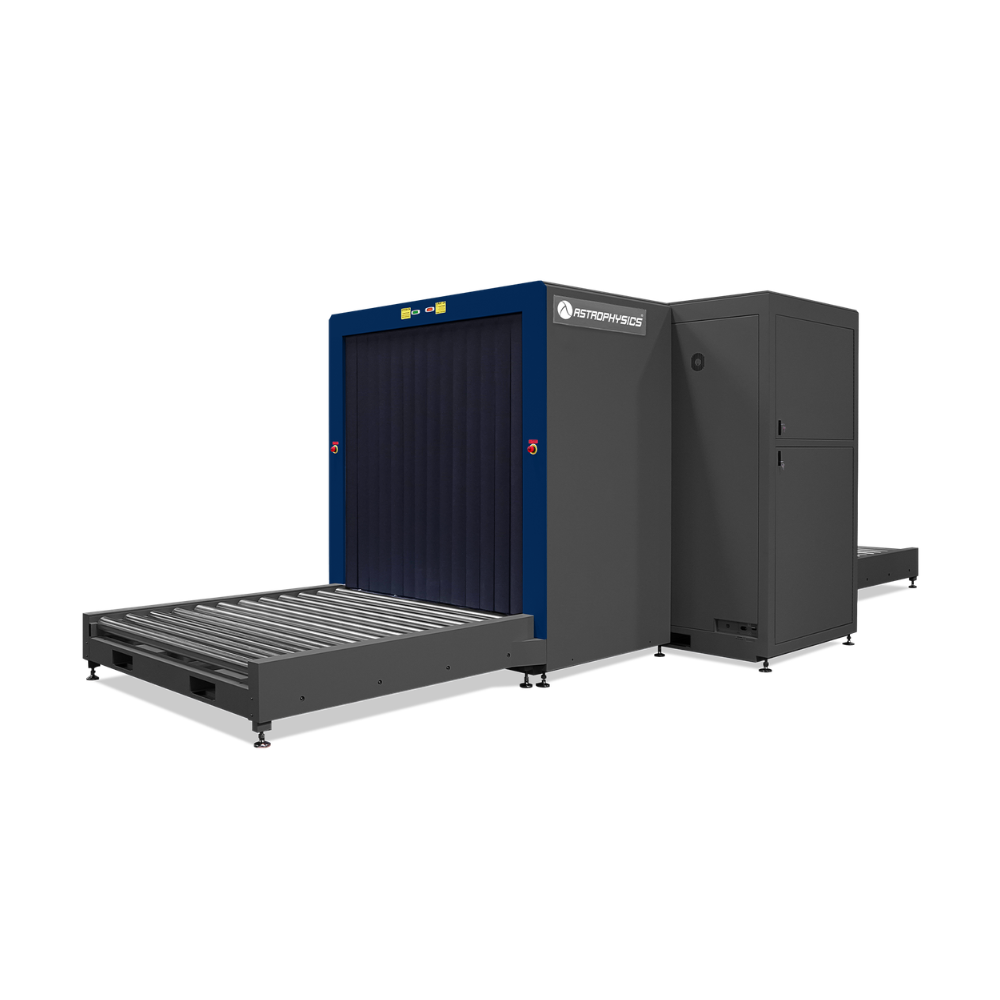

XIS-1818 200kV X-Ray Inspection System

Description

Product Name: XIS-1818 200kV X-Ray Inspection System

Manufacturer: Astrophysics Inc.

Country of Origin: USA

Product Description

The XIS-1818 200kV is a premier, high-capacity X-Ray Inspection System (XIS) explicitly engineered for screening heavy cargo, large pallets, and bulky freight. Designed to meet the stringent security demands of airports, seaports, and major transportation facilities, this robust system ensures unparalleled threat detection without compromising operational speed. It features a heavy-duty roller bed integrated with a low-profile conveyor system positioned just 38.6 cm (15.2”) from the ground, making the loading and unloading of massive freight exceptionally convenient and safe.

Equipped with a shortened tunnel architecture and continuous roller operation, the XIS-1818 200kV enables rapid, high-throughput screening. Backed by Astrophysics’ best-in-class software design, the system delivers real-time imaging and exceptional penetration capabilities, providing security customs and checkpoint operators with maximum agility, accuracy, and efficiency during complex cargo inspections.

Key Features

• High-Performance Imaging & Deep Penetration: Driven by a powerful 200kV generator, the system achieves a 40 AWG typical wire resolution and up to 52 mm of steel penetration. Coupled with Enhanced Imaging™ Mode and High Penetration functions, it ensures meticulous analysis of dense cargo.

• Advanced Material Discrimination: Features Organic/Inorganic Imaging and Material Discrimination capabilities. By utilizing 3 & 6 color mapping and atomic Z-number measurements, it isolates potential threats dynamically on-screen.

• Real-Time Image Manipulation & Continuous Zoom: Operators can manipulate images on the fly using continuous zoom up to 64x, 9-quadrant zoom, and color inversion (monochrome/reverse mode) to detect hidden illicit items quickly.

• Heavy-Duty High-Capacity Conveyor: Built for industrial-scale tasks, the low-profile, continuous-motion roller bed supports a massive, evenly distributed load of up to 3,000 kg (6,614 lbs).

• Network Integration & Accessibility: Supports network integration and multi-tier accessibility. Includes comprehensive image annotation tools and real-time self-diagnostics to ensure minimal downtime and reliable operations.

• Automated Image Archiving: Offers automated image saving (RGB) and effortless conversion to JPEG format, allowing security agencies to maintain reliable digital logs for audit and compliance.

Technical Specifications

• Product Name: XIS-1818 200kV

• Manufacturer / Origin: Astrophysics Inc. / USA

• Tunnel Dimensions (W × H): 180.7 cm × 180.4 cm (71.1” × 71.0”)

• Equipment Dimensions (L × W × H): 731.2 cm × 289.6 cm × 235.3 cm (287.9” × 114.0” × 92.6”)

• Net Weight: 4,037 kg (8,900 lbs)

• Shipping Weight: 4,806 kg (10,595.4 lbs)

• Wire Resolution: 40 AWG Typical, 38 AWG Standard

• Steel Penetration: 52 mm Typical, 50 mm Standard

• X-Ray Generator (Voltage / Current): 200kV / 1.0 mA

• Beam Direction: Horizontally Sideward

• Cooling System: Sealed Di-Electric Oil Bath with Forced Air

• Duty Cycle: 100% (No Warm-Up Procedure Required)

• Conveyor Speed: 10 cm/s (Forward/Reverse)

• Conveyor Height: 38.6 cm (15.2”) from Floor

• Maximum Conveyor Capacity: 3,000 kg (6,614 lbs) Evenly Distributed Load

• Radiation Safety (Leakage): Less than 0.1 mR/hr (Exceeds U.S. Federal Standards)

• Standard Software Functions: Baggage counter, continuous scanning, pseudo-color, inverse color, atomic Z-number measurement, geometric distortion correction, multi-tier access.

• Application Areas: Airports, seaports, customs facilities, transportation hubs, logistics centers, and cargo screening operations.

Conclusion

For high-security entry points and cargo terminals in Bangladesh, managing heavy freight while maintaining rigorous threat screening is a critical operational challenge. The XIS-1818 200kV perfectly bridges this gap by merging industrial-grade weight capacity with superior imaging precision. Its advanced material discrimination and deep 52 mm steel penetration enable security personnel at key transportation hubs, customs checkpoints, and large logistics centers to accurately isolate contraband or undeclared goods.

With its 100% duty cycle, high-throughput short tunnel design, and robust 3,000 kg conveyor capacity, this system empowers operators to make swift, well-informed decisions. The Astrophysics XIS-1818 200kV stands out as an indispensable, reliable asset for any major screening facility in Bangladesh demanding large-scale, real-time X-ray inspections.

Get instant stock availability and the best price for the XIS-1818 200kV X-Ray Inspection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
