XIS-6040 X-Ray Inspection System

Description

Product Name: XIS-6040 X-Ray Inspection System

Manufacturer: Astrophysics Inc.

Country of Origin: USA

Product Description

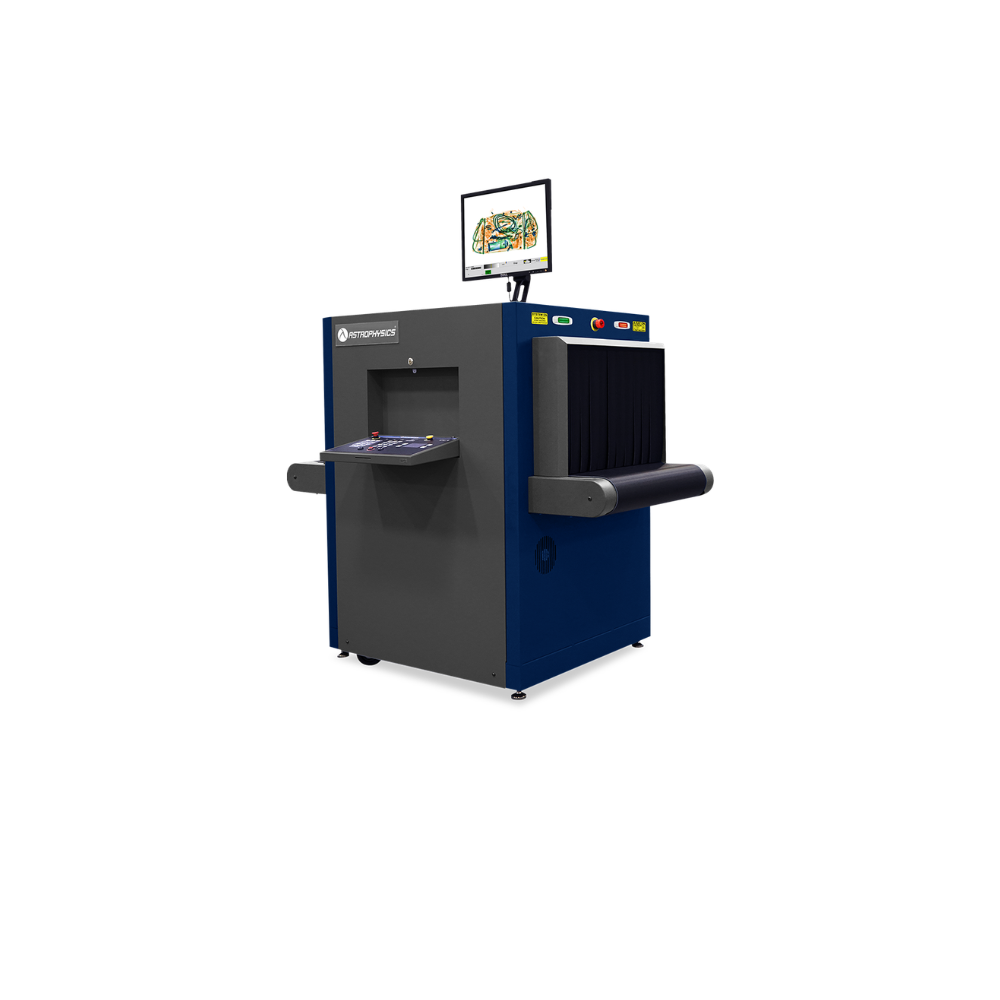

The XIS-6040™ is a high-performance X-ray inspection system engineered for screening backpacks, purses, mail, and parcels. With a standard 60.0 cm x 40.0 cm tunnel, it is the preferred choice for security checkpoints requiring unsurpassed image quality and proven field reliability.

Built on a robust Windows® 10 OS platform with 8 GB RAM and a 256 GB SSD, this system ensures rapid image processing and seamless data management. Its compact footprint makes it perfect for tight spaces in government buildings, hotels, and corporate offices, while the diagonally upward beam orientation provides comprehensive coverage for various baggage dimensions.

Key Features

• Advanced Material Discrimination: Features 3 & 6 color imaging alongside Atomic Z-Number Measurement for precise identification of organic, inorganic, and mixed materials.

• Superior Imaging Tools: Includes Enhanced Imaging™, Pseudo Color, and Reverse Monochrome functions to help operators detect suspicious items more effectively.

• High Penetration & Clarity: Delivers a typical steel penetration of 41 mm and a typical wire resolution of 40 AWG, ensuring detailed analysis of dense parcels.

• Operational Efficiency: Equipped with real-time self-diagnostics, a baggage counter, and a continuous scanning mode with up to 64x zoom for thorough inspection.

• Reliable Power Management: The system includes an Automatic Voltage Regulator (AVR, 600VA) to protect against voltage fluctuations, ensuring long-term system stability.

Technical Specifications

• Tunnel Dimensions: 60.0 cm x 40.0 cm (23.6” x 15.8”)

• Equipment Dimensions: 143.3 cm x 84.6 cm x 124.5 cm (56.4” x 33.3” x 49.0”)

• Equipment Weight: Net: 389 kg (858 lbs) | Shipping: 487 kg (1074 lbs)

• Conveyor Capacity: 165 kg (364 lbs) evenly distributed

• Conveyor Speed: 0.23 m/s (45 ft/min) at 71.6 cm (28.2”) height

Imaging & Generator

• Generator: 160kV (Operating at 150kV) | 0.7 mA Tube Current

• Steel Penetration: 41 mm Typical (39 mm Standard)

• Wire Resolution: 40 AWG Typical (38 AWG Standard)

• Beam Direction: Diagonally Upward

• Cooling: Sealed Di-Electric bath with Forced Air (100% Duty Cycle)

System & Power

• OS & Hardware: Windows® 10 OS | 8 GB RAM | 256 GB SSD

• Display: 21.5” Flat Panel Color Monitor (1920 x 1080)

• Power Requirements: 110 VAC +/- 10% (15 Amp Max) / 220 VAC +/- 10% (10 Amp Max)

• Safety & Compliance: Radiation leakage < 0.1 mR/hr (USFDA 21-CFR 1020.40 compliant) | Film Safety: ISO 1600

Conclusion

Precision in Screening For high-security checkpoints in Bangladesh, the XIS-6040™ offers elite-level accuracy. With a typical steel penetration of 41 mm, it ensures that even small threats hidden in dense packages are clearly visible. Security personnel in airports, courthouses, and corporate offices can rely on its 40 AWG wire resolution for identifying fine wires and prohibited items with ease.

Continuous Operational Speed With a 100% duty cycle and no warm-up procedure required, the equipment supports continuous, high-speed operations. Furthermore, the integration of an Automatic Voltage Regulator (AVR) and Windows 10 platform ensures that the system remains stable and efficient under constant use. The XIS-6040™ remains the global standard for organizations demanding a balance between a compact design and high-contrast imaging.

Get instant stock availability and the best price for the Astrophysics XIS-6040 X-Ray Inspection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
