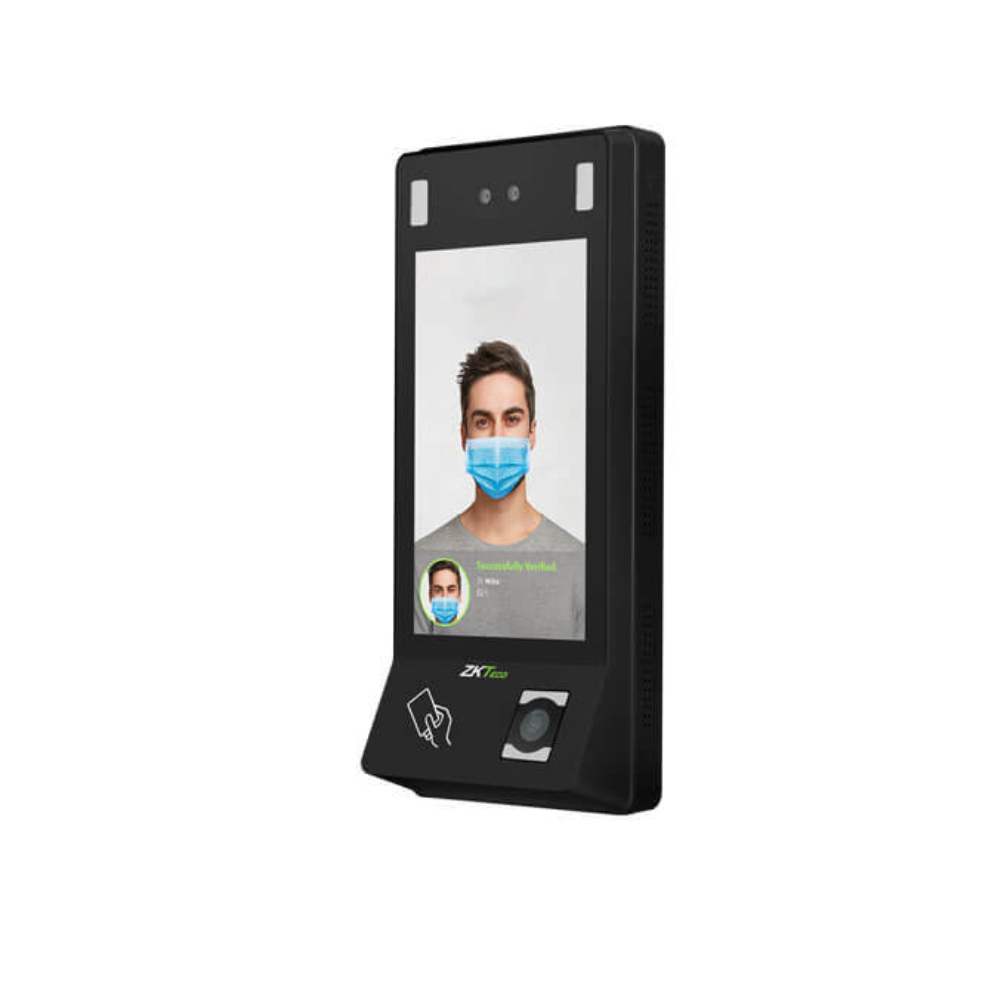

ZKTeco G4 Pro Multi-biometric Terminal

Description

Product Name: ZKTeco G4 Pro Multi-biometric Terminal

Manufacturer: ZKTeco

Product Overview

The ZKTeco G4 Pro is a high-performance multi-biometric terminal powered by an upgraded Android 9.0 system. Designed for diverse deployment requirements, it supports PoE (IEEE 802.3af/at) power supply and optional 4G connectivity for greater installation flexibility. Building on the strengths of the G4, the G4 Pro features ZKTeco’s enhanced Visible Light Facial Recognition technology and an integrated mini QR code reader. This scanner supports dynamic QR codes via the ZKBio CVSecurity mobile application, as well as various barcode formats for third-party project integration. With its developer-friendly Android LCDP tool, the G4 Pro provides an efficient, scalable solution for enterprise-grade security and attendance management.

Key Features

• Android 9.0 Platform: Fully upgraded system for better performance, stability, and easier application development.

• Advanced Recognition: Features enhanced Visible Light Facial Recognition with a high-speed matching time of ≤ 1 second.

• Integrated QR Code Scanner: Equipped with a mini scanner for T&A and A&C dynamic QR codes, supporting QR Code, PDF417, Data Matrix, MicroPDF417, and Aztec barcode formats.

• Massive Capacity: Supports up to 50,000 users, 50,000 faces, and 1,000,000 transactions, ideal for large-scale enterprise deployments.

• Software Compatibility: Supports ZKBio Time (Time Attendance firmware), ZKBio CVSecurity, Android LCDP, and PUSH SDK.

• Developer-friendly: Provides simplified hardware interfaces, algorithm interfaces, and business logic integration for third-party Android application development.

Technical Specifications

• Display: 7-inch Touch Screen (720*1280 Pixels)

• User/Face/Card Capacity: 50,000 / 50,000 / 50,000

• Transaction Capacity: 1,000,000

• CPU: 64bit Octa-core Customized Computer Vision 1.8GHz CPU

• Memory/Storage: 2GB LPDDR3 / 16GB eMMC

• Camera: 2MP Binocular Camera

• Communication: TCP/IP, USB Host, Wi-Fi, Bluetooth, Optional 4G

• Access Control Interface: RS485 (OSDP v2.1.7), Wiegand Input/Output, Lock Relay Output, Exit Button, Alarm Output, Auxiliary Input, Door Sensor, External Bell

• Biometric Options: Z-ID Fingerprint Sensor (Optional: 30,000 fingerprints)

• Recognition Distance: 0.3m to 1.2m

• Power Supply: DC 12V 3A, IEEE 802.3af / at (PoE)

• Dimensions: 264mm × 120mm × 51mm

• Storage Temperature: -25°C to 65°C (-13°F to 149°F)

• Certifications: CE, FCC, ISO9001, ISO14001, ISO20000

Conclusion

Dream Technologies BD is a trusted supplier of the ZKTeco G4 Pro in Bangladesh. We provide professional installation, software configuration, and dedicated after-sales support to ensure your business enjoys a highly secure and efficient time attendance and access control experience.

Contact Us for Quotations or Technical Support:

• Phone: +8801737118246

• Email: [email protected]
