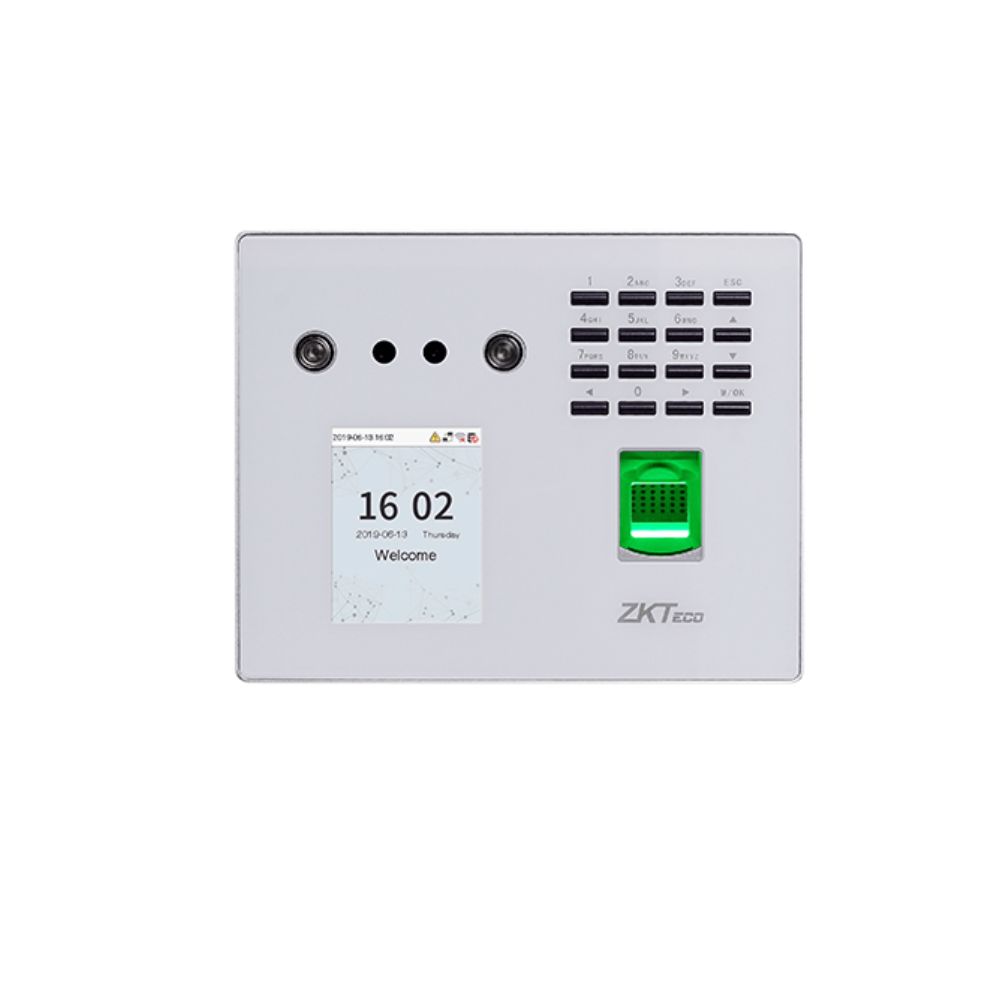

ZKTeco MB560-VL Multi-biometric Terminal

Description

Product Name: ZKTeco MB560-VL Multi-biometric Terminal

Manufacturer: ZKTeco

Product Overview

The ZKTeco MB560-VL is a multi-biometric identification terminal featuring ZKTeco’s innovative Visible Light Facial Authentication technology. With the latest algorithm, the device can recognize targets at a distance from 0.3m to 2m and operates automatically upon detecting a human face. This provides superior authentication speed and accuracy compared to near-infrared terminals. Enhanced by a Deep Learning algorithm, it offers improved pose angle tolerance (head rotation ±25°, tilt ±35°) and robust anti-spoofing capabilities. Combined with a 3D Neuron Fingerprint Algorithm and support for mainstream card modules and Wi-Fi, the MB560-VL is an ideal fit for diverse working environments.

Key Features

• Visible Light Facial Authentication: Rapid and accurate face recognition from 0.3m to 2m.

• Enhanced Security: Deep Learning technology improves anti-spoofing performance against various spoofing attacks while enhancing recognition accuracy in dynamic environments.

• Advanced Biometrics: Features ZKFace V4.0 algorithm and ZKFingerprint V13.0 (Standard) for high-speed verification.

• Flexible Identification: Supports multiple verification methods including Fingerprint, Face, Card, and Password.

• Reliable Connectivity: Includes TCP/IP, optional Wi-Fi, and interfaces for Electric Lock, Door Sensor, and Exit Button.

• Large Data Capacity: Supports up to 10,000 users, 3,000 face and fingerprint templates (expandable to 5,000), and 100,000 transaction records (expandable to 200,000).

Technical Specifications

• Display: 2.8-inch TFT Color LCD Screen (240*320)

• Camera: Binocular Camera @ 1MP WDR

• Operation System: Linux

• Hardware: Dual Core @1.0GHz CPU, 512MB RAM, 8GB ROM

• User Capacity: 10,000

• Face Capacity: 3,000 (Optional: 5,000)

• Fingerprint Capacity: 3,000 (Optional: 5,000)

• Card Capacity: 10,000

• Transaction Capacity: 100,000 (Optional: 200,000)

• Verification Speed: ≤0.35 sec (Face), ≤0.5 sec (Fingerprint)

• Communication: TCP/IP, Wi-Fi (Optional)

• Access Control Interface: Electric Lock, Door Sensor, Exit Button

• Power Supply: DC 12V 1.5A

• Operating Conditions: 0°C to 45°C; 20% to 80% RH

• Dimensions: 170 mm × 138 mm × 38.55 mm

Conclusion

Dream Technologies BD is a trusted supplier of the ZKTeco MB560-VL terminal in Bangladesh. We provide professional installation, software configuration, and dedicated after-sales support to ensure your business in Bangladesh enjoys a seamless and secure attendance management experience.
