160KVA Online UPS Vertiv Hipulse U Best Price in Bangladesh

Description

Product Name: 160KVA Online UPS Vertiv Hipulse U Best Price in Bangladesh

Manufacturer: Vertiv

Product Overview

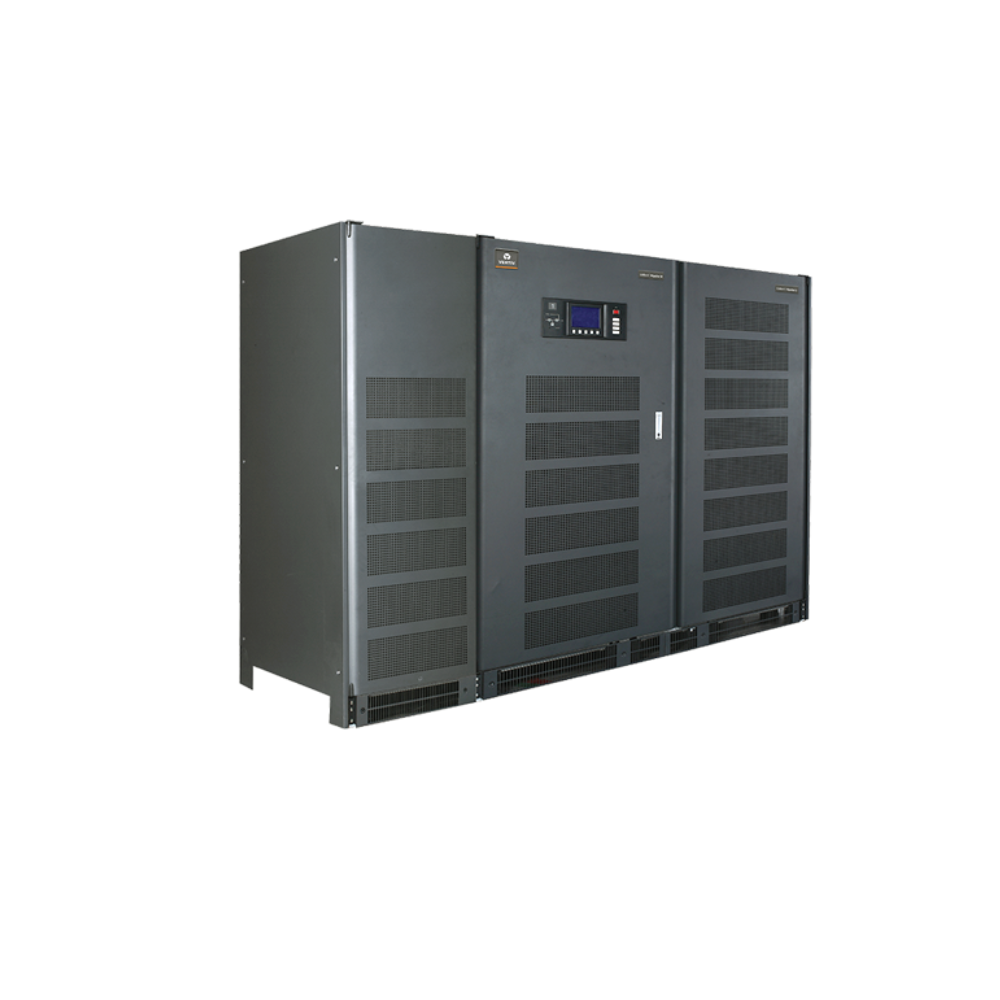

The Vertiv Hipulse U 160KVA is a fully digital, twin DSP-controlled online double-conversion UPS engineered to deliver exceptional reliability, scalability, and performance for mission-critical applications. Featuring an IGBT-based inverter and a 0.9 output power factor, it provides robust power protection, handling 100% non-linear and unbalanced loads seamlessly while lowering the total cost of ownership.

Key Features and Benefits

• Fully Digital Control: Advanced twin DSP-controlled architecture ensures high operational precision and stability.

• Optimized Power Delivery: Rated at a 0.9 output power factor to deliver more active power to connected loads.

• High Overload Tolerance: Exceptional static bypass and inverter overload capabilities for demanding industrial conditions.

• Complete Load Adaptability: Built to handle high crest factor loads, 100% non-linear loads, and 100% unbalanced loads without performance compromise.

• Easy Maintenance Design: Integrated maintenance bypass with front-access architecture for effortless spare parts replacement and preventive maintenance.

• Dual Bus Architecture: Supports easy dual bus configuration architecture for enhanced system availability and redundancy.

• Smart Protocols: Equipped with ModBus / JBus field protocols and SNMP network protocols for remote management.

Technical Specifications

• Brand: Vertiv

• Model: Vertiv Hipulse U 160kVA

• Nominal Rating / Capacity: 160 kVA

• Rectifier Type: 6P

• Nominal Input Voltage: 380 / 400 / 415 Vac (4-wire plus ground)

• Input Voltage Range: 323 to 478 Vac

• Nominal Input Frequency: 50 / 60 Hz

• Input Frequency Range: 45 to 55 Hz / 55 to 65 Hz

• Nominal Output Voltage: 380 / 400 / 415 Vac (4-wire plus ground)

• Output Power Factor: 0.9

• Voltage Stability: $\pm 1\%$ (Steady state); $\pm 5\%$ (Transient state)

• Transient Recovery Time: 20 milliseconds (max)

• Frequency Stability: $\pm 0.1\%$ (Synchronized with internal clock); $\pm 6\%$ max (Synchronized with bypass)

• Inverter Overload Capability: 101 to 110% for 60 minutes; 111 to 125% for 10 minutes; 126 to 150% for 1 minute

• Voltage Distortion (Linear Load): $<1\%$

• Voltage Distortion (100% Non-Linear Load): $<5\%$

• Permissible Load Unbalance: 100%

• Non-Linear Load Capability: 100%

• Load Handling Without kVA Derating: 0.5 lagging to 0.9 lagging

• Phase Angle Displacement Accuracy: $\pm 1^\circ$ (100% balanced and unbalanced load)

• Physical Dimensions (W x D x H): $1640 \times 855 \times 1900\text{ mm}$

• Safety & Compliance Requirements: IEC 62040-1 (General and safety), IEC 62040-2 (EMC), VFI-SS-111 (UPS Classification)

Ideal Applications

• Enterprise Data Centers and Server Farms

• Industrial Automation and Control Rooms

• Telecommunication Infrastructure

• Healthcare and Precision Medical Diagnostic Equipment

• Mission-Critical Commercial Facilities

Conclusion

The Vertiv Hipulse U 160KVA Online UPS offers robust industrial-grade architecture, high reliability, advanced digital control, and efficient power protection for mission-critical infrastructure across Bangladesh.
