1KVA Online UPS Vertiv Liebert GXT MT+CX Best Price in Bangladesh

Description

Product Name: 1KVA Online UPS Vertiv Liebert GXT MT+CX Best Price in Bangladesh

Manufacturer: Vertiv

Product Overview

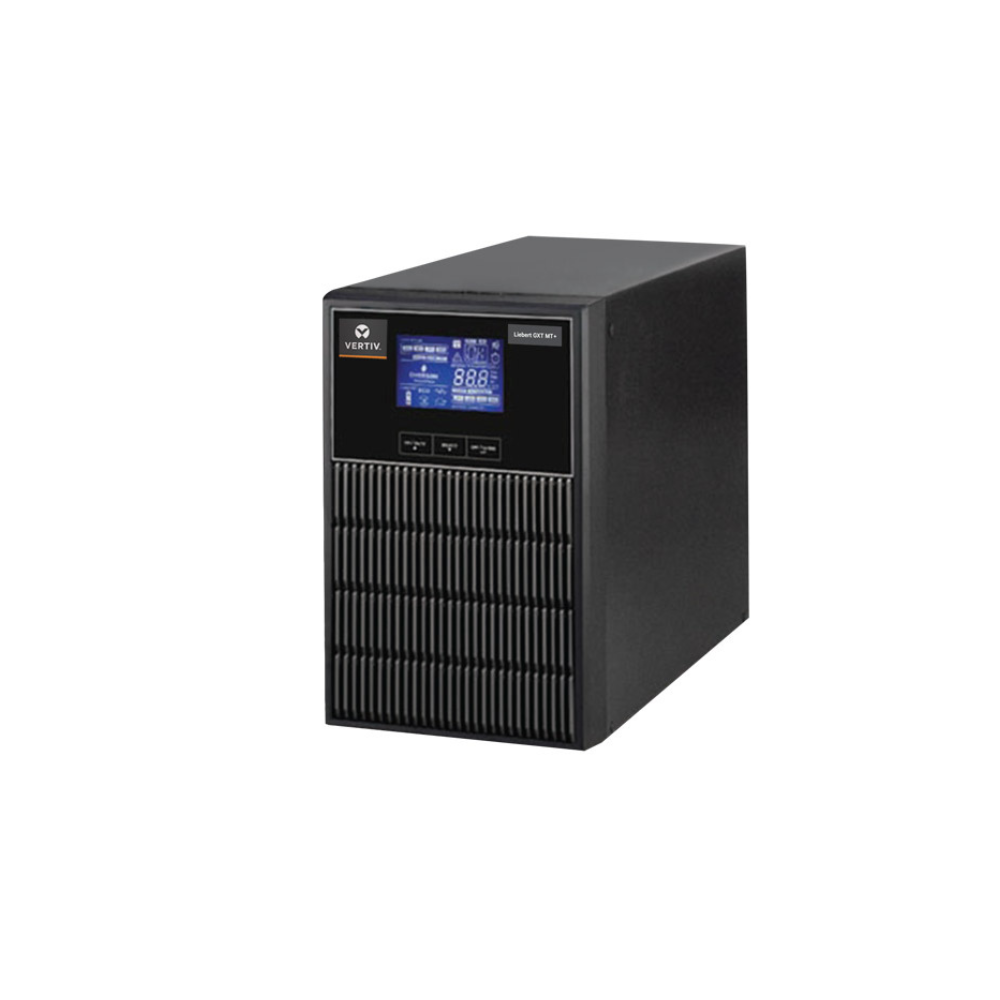

The Vertiv Liebert GXT MT+CX (Model: GXT MT+ CX4 1K SB) is an advanced 1KVA true online double-conversion UPS designed to deliver mission-critical power protection. Featuring state-of-the-art DSP control technology and an IGBT-based rectifier, it ensures high reliability, zero transfer time, and clean, uninterrupted power for sensitive servers, medical equipment, networking gear, and critical corporate workstations in Bangladesh.

Key Features and Benefits

• True Online Double Conversion: Delivers continuous, high-quality pure sine wave power by converting incoming AC to DC and back to AC, completely isolating connected loads from mains power disturbances.

• DSP Control Technology: Advanced microprocessor control guarantees superior system performance, high reliability, and precise regulation.

• IGBT-Based Rectifier: Enhances input power quality, reduces harmonic distortion, and optimizes energy conversion efficiency.

• New Graphical LCD Display: Provides real-time UPS status, load/battery levels, input/output voltages, discharge timers, and built-in fault diagnostics.

• High Efficiency & Power Factor: Offers up to 89% double-conversion efficiency and features active input power factor correction (up to 0.99) for efficient power utilization alongside a 0.8 output power factor (800W capacity).

• Wide Input Voltage & Frequency Window: Accommodates a broad input range (110V–280V) and 40Hz–70Hz frequency range, ensuring seamless generator compatibility and maximum battery preservation.

• Intelligent Monitoring Options: Supports optional Vertiv Liebert IntelliSlot™ RDU120, RS485, Dry Contact, and SNMP communication cards.

Technical Specifications

• Brand / Manufacturer: Vertiv (Liebert Series)

• Model: GXT MT+ CX4 1K SB

• Configuration: 1 Phase In / 1 Phase Out

• Capacity (VA / Watts): 1000VA / 800W

• Nominal Input Voltage: 230 Vac

• Input Voltage Range: 110V – 280 VAC (Low line loss down to 110 VAC at 50% load / 160 VAC at 100% load)

• Input Frequency Range: 40 Hz ~ 70 Hz (Generator Compatible)

• Input Power Factor: 0.95 @ nominal voltage

• Output Voltage Options: 200 / 208 / 220 / 230 / 240 VAC (Configurable)

• AC Voltage Regulation (Batt. Mode): ±1%

• Output Waveform: Pure Sine Wave

• Transfer Time: Zero (AC Mode to Batt. Mode), 4ms typical (Inverter to Bypass)

• Battery Type & Number: 12V / 9Ah x 4 internal batteries

• Recharge Time: 4 hours to recover 90% capacity (Typical)

• Charging Current & Voltage: 2.0 A max, 27.4 VDC (±1%)

• AC to AC Efficiency: Up to 89% at 100% load

• Indicators & Alarms: Comprehensive graphical LCD panel with multi-tier audible alarms for battery mode, low battery, overload, and faults

• Physical Dimensions (D x W x H): 397 x 145 x 220 mm

• Net Weight: 17 kg

• Operating Environment: 0°C to 50°C (Humidity: 0–95% RH non-condensing, Noise Level: Less than 45 dBA at 1 meter)

• Management Software Support: Windows, Linux, Unix, and MAC via Smart RS-232/USB; optional SNMP card support

Ideal Applications

• Corporate Servers and Small Data Centers

• IT Infrastructure and Networking Equipment

• Medical Laboratory and Diagnostic Equipment

• CCTV Surveillance Systems and DVR Equipment

• Financial POS Terminals, Telecom Equipment, and ATM Networks

Conclusion

The Vertiv Liebert GXT MT+CX 1KVA Online UPS combines advanced double-conversion technology, robust build quality, and comprehensive monitoring capabilities, making it an ideal power backup solution for businesses, IT infrastructure, healthcare facilities, financial institutions, and other critical applications across Bangladesh.
