ABB 1600A 25kA VD4 VCB Best price in Bangladesh

Description

Product Name: ABB 1600A 25kA VD4 VCB Best price in Bangladesh

Manufacturer: ABB

Product Overview

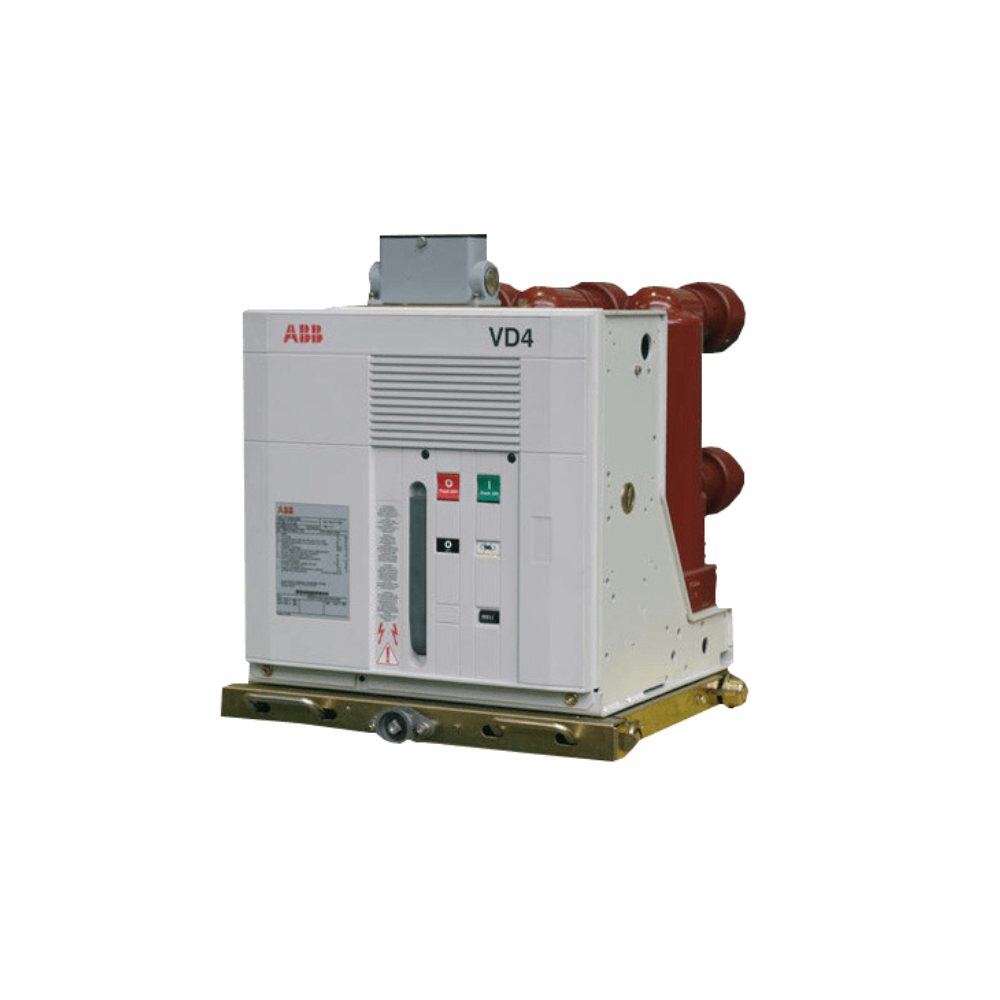

The ABB VD4/P Medium Voltage Vacuum Circuit-Breaker (VCB) series (Model: VD4/P 12.16.25 p210) utilizes advanced vacuum interruption technology. Engineered as an indoor medium-voltage circuit breaker designed in accordance with IEC 62271-100, this withdrawable version delivers robust and reliable switching performance for medium-voltage switchgear installations.

Key Features

• Vacuum Interruption Technology: Employs vacuum interrupters for safe, efficient, and reliable arc extinguishing.

• Withdrawable Design: Specifically engineered for withdrawable configurations to match switchgear requirements.

• Pole-Centre Distance: Fixed at 210 mm (p210) as precisely specified for this exact model configuration.

• Standard Compliance: Designed in accordance with IEC 62271-100.

Technical Specifications

• Manufacturer: ABB

• Series: VD4/P

• Exact Model: VD4/P 12.16.25 p210

• Application: Indoor medium-voltage circuit breaker

• Technology: Vacuum

• Installation: Withdrawable

• Rated Voltage ($U_r$): 12 kV

• Rated Frequency ($f_r$): 50–60 Hz

• Rated Normal / Continuous Current ($I_r$): 1600 A at 40°C

• Rated Short-Circuit Breaking Current ($I_{sc}$): 25 kA

• Rated Short-Time Withstand Current ($I_k$): 25 kA for 3 s

• Rated Making Capacity ($I_p$): 63 kA peak

• Power-Frequency Withstand Voltage ($U_d$): 28 kV / 1 min

• Lightning Impulse Withstand Voltage ($U_p$): 75 kV

• Operating Sequence: O – 0.3 s – CO – 15 s – CO

• Opening Time: 33–60 ms

• Arcing Time: 10–15 ms

• Total Breaking Time: 43–75 ms

• Closing Time: 60–80 ms

• Pole Centre Distance ($P$): 210 mm (p210)

• Standard Service Temperature: −5°C to +40°C

• Standard: IEC 62271-100

Conclusion

The ABB VD4/P 12.16.25 p210 VCB provides a standardized, high-performance medium-voltage switching solution. Verifying the exact pole-centre configuration (p210) ensures seamless physical integration and compliance with your specific switchboard design.
