ABB 2500A 20kA VD4 VCB Best price in Bangladesh

Description

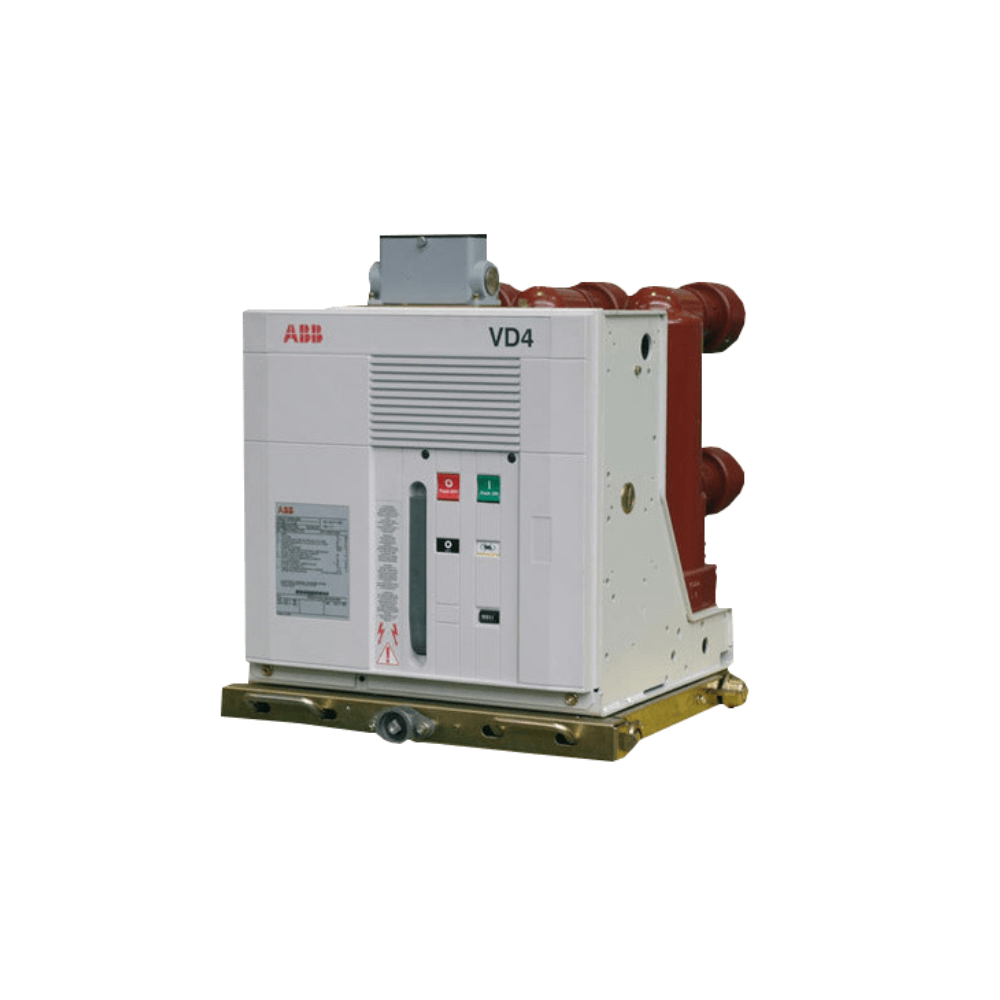

Product Name: ABB 2500A 20kA VD4 VCB Best price in Bangladesh

Manufacturer: ABB

Product Overview

The ABB VD4 Medium Voltage Vacuum Circuit-Breaker (VCB) series utilizes vacuum interruption technology combined with a stored-energy mechanical mechanism featuring a free trip. Designed for reliability and safety in medium-voltage power distribution systems, this series is available in fixed and withdrawable versions and is engineered in accordance with IEC 62271-100, VDE 0671, and CEI 17-1 standards.

Key Features

• Vacuum Interruption Technology: Employs vacuum interrupters for safe and efficient current interruption.

• Mechanical Mechanism: Features a stored-energy mechanical mechanism with a free trip.

• Flexible Configurations: Available in both fixed and withdrawable versions.

• Pole-Centre Options: Exact model ordering accommodates specific pole-centre distance variants (p210 and p275) to match switchboard layouts.

• Standards Compliance: Designed in accordance with IEC 62271-100, VDE 0671, and CEI 17-1 standards.

Technical Specifications

• Manufacturer: ABB

• Product Series: VD4

• Product Type: Medium Voltage Vacuum Circuit-Breaker (VCB)

• Exact Model: VD4 12.25.20 p210 / VD4 12.25.20 p275

• Rated Voltage ($U_r$): 12 kV

• Rated Current ($I_r$): 2500 A at 40°C

• Rated Short-Circuit Breaking Current ($I_{sc}$): 20 kA

• Rated Short-Time Withstand Current ($I_k$): 20 kA for 3 seconds

• Rated Frequency: 50–60 Hz

• Power-Frequency Withstand Voltage ($U_d$): 28 kV / 1 min

• Lightning Impulse Withstand Voltage ($U_p$): 75 kV

• Rated Peak Withstand Current (Ip): 50 kA

• Operating Sequence: O–0.3 s–CO–15 s–CO

• Opening Time: 33–60 ms

• Arcing Time: 10–15 ms

• Total Breaking Time: 43–75 ms

• Closing Time: 60–80 ms

• Standard Service Temperature: −5°C to +40°C

• Interruption Technology: Vacuum

• Operating Mechanism: Stored-energy mechanical mechanism with free trip

• Pole-Centre Options: 210 mm (p210) / 275 mm (p275)

Conclusion

The ABB VD4 2500A 20kA VCB provides a standardized medium-voltage switching solution. By selecting the correct exact model configuration (VD4 12.25.20 p210 or VD4 12.25.20 p275), engineers and buyers can ensure proper physical alignment and compliance with switchboard specifications.
