ABB 63A 6kA TP MCB Best Price in Bangladesh

Description

Product Name: ABB 63A 6kA TP MCB Best Price in Bangladesh

Manufacturer: ABB

Product Overview

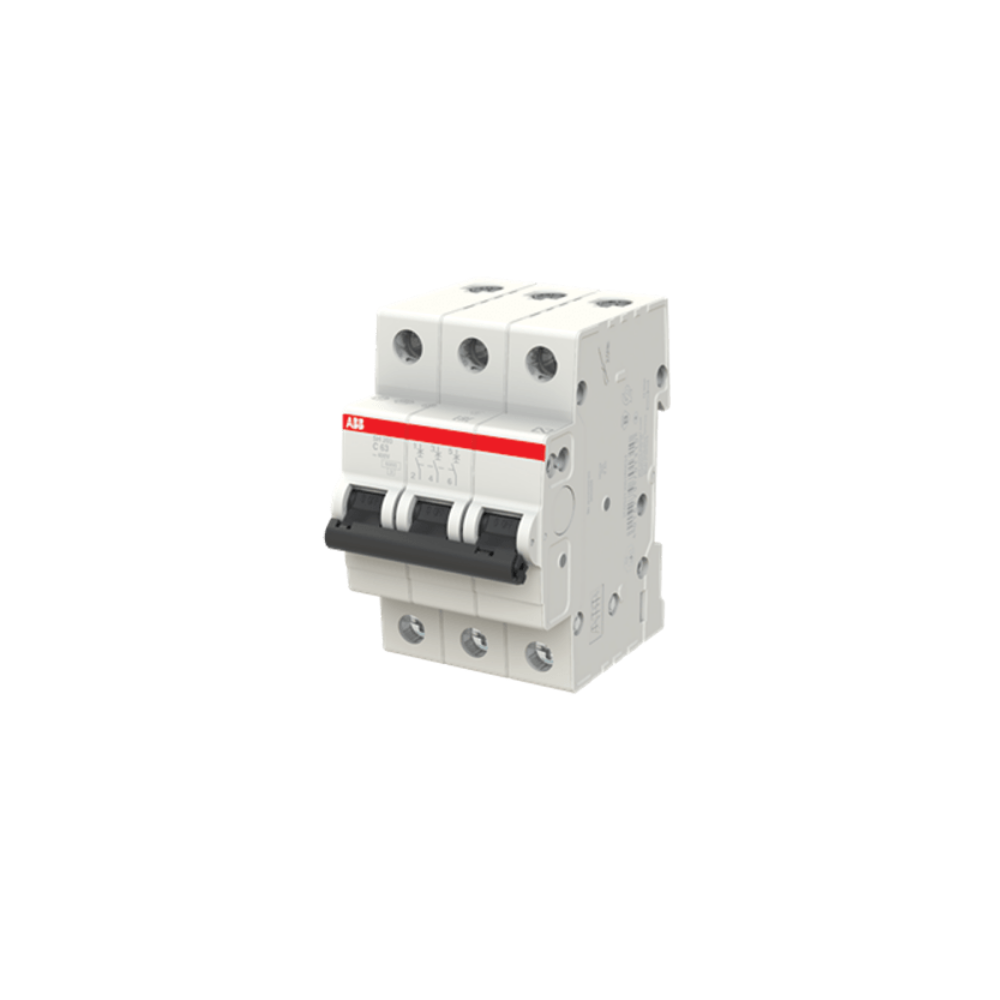

The ABB SH203-C63 (Extended Product Type: SH203-C63, Product ID: 2CDS213001R0634) is a 3-pole miniature circuit breaker designed for reliable circuit protection in low-voltage electrical systems. Engineered to meet international standards, this 63 A device provides overload and short-circuit protection (6 kA breaking capacity) with a C-curve tripping characteristic, making it suitable for standard commercial, residential, and industrial sub-distribution applications across Bangladesh.

Key Features and Benefits

• Rated Current: Configured with a 63 A rated current capacity suitable for sub-distribution panels.

• Tripping Characteristic C: Optimized with a C-curve tripping characteristic, making it suitable for circuits with moderate inrush currents.

• Short-Circuit Capacity: Features a robust 6 kA interruption rating (at 400 V AC) conforming to IEC 60898-1 standards.

• Compact 3-Pole Design: Integrated 3P configuration spanning 3 modular spacings (52.5 mm width) for compact switchboard integration.

• EcoSolutions Profile: Manufactured with an EcoSolutions profile featuring a 92.1% recyclability rate according to EN45555 standards.

Technical Specifications

• Product Line: ABB Miniature Circuit Breakers (SH200 Series)

• Extended Product Type: SH203-C63

• Product ID / Catalog No.: 2CDS213001R0634

• EAN / UPC: 4016779701310

• Number of Poles: 3-Pole (3P)

• Rated Current ($I_n$): 63 A

• Tripping Characteristic: C

• Rated Short-Circuit Capacity: 6 kA (400 V AC)

• Rated Operational Voltage: 400 V AC (acc. to IEC 60898-1)

• Energy Limiting Class: 3

• Rated Frequency: 50 / 60 Hz

• Power Loss: 14.4 W (4.8 W per pole)

• Terminal Type & Capacity: Screw Terminals (Cage Terminal), Conductor up to 25 mm²

• Tightening Torque: 2 N·m

• Degree of Protection: IP20 (Enclosure with Cover IP40)

• Ambient Air Temperature: Operation: -25 … +55 °C | Storage: -40 … +70 °C

• Dimensions (W x H x D): 52.5 mm x 85 mm x 69 mm

• Product Net Weight: 0.33 kg

• Standards / Compliance: IEC 60898-1, RoHS, REACH, WEEE Category: 5 (Business to Business)

Ideal Applications

• Low-Voltage Electrical Distribution Systems in Bangladesh

• Commercial Building Sub-Distribution Boards

• Residential Electrical Panels and Switchboards

• General Circuit Protection and Sub-Main Switchgear

Conclusion

Ultimately, the ABB 63A 6kA TP MCB (SH203-C63) delivers dependable circuit protection, energy efficiency, and reliable performance for low-voltage electrical installations across Bangladesh, ensuring safety against overloads and short circuits.
