ABB AF265-30-11-13 3-Pole Contactor Best Price in Bangladesh

Description

Product Name: ABB AF265-30-11-13 3-Pole Contactor Best Price in Bangladesh

Manufacturer: ABB

Product Overview

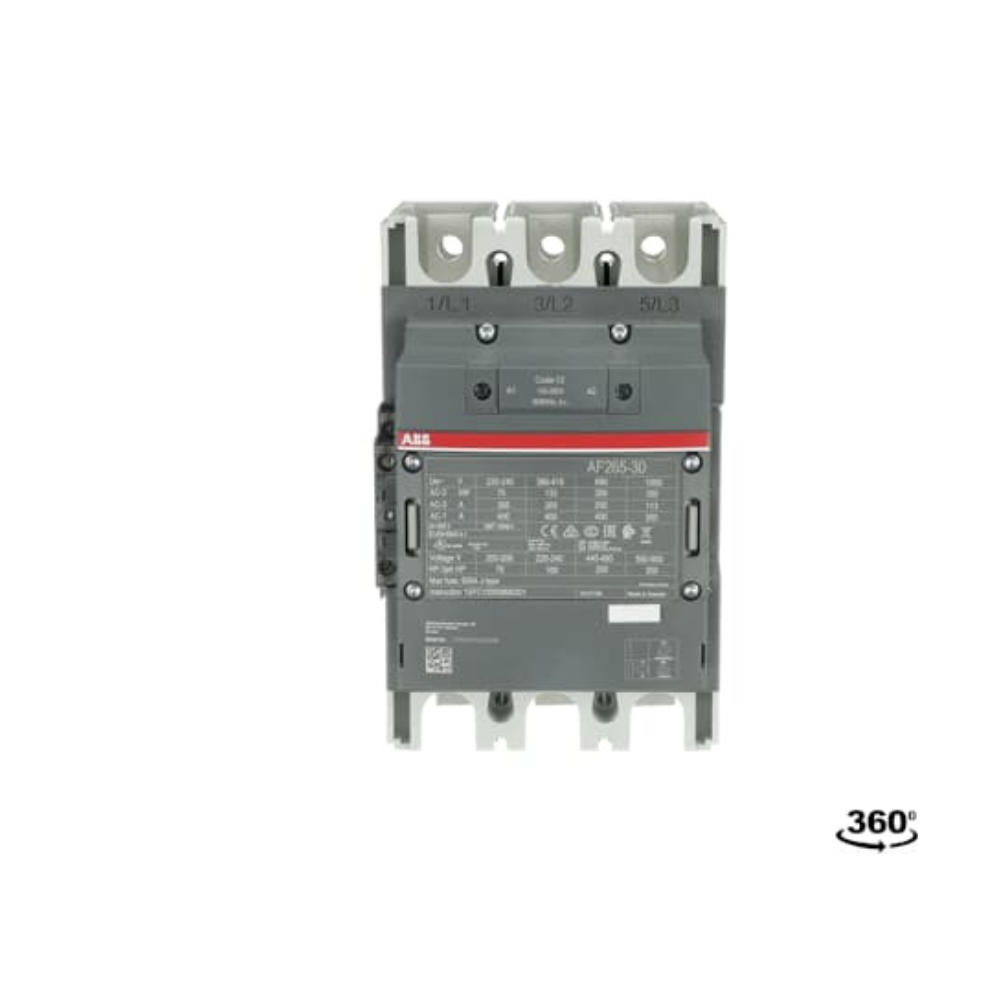

The ABB AF265-30-11-13 is a 3-pole block magnetic contactor engineered for heavy-duty industrial power switching and motor control applications. Designed in accordance with IEC 60947-4-1 standards, this high-performance unit handles motor control up to 132 kW / 400 V AC (AC-3) or 200 hp / 480 V UL, and switches power circuits up to 400 A (AC-1) at 690 V. Equipped with advanced AF technology, it features a wide control voltage range of 100–250 V AC/DC for reliable contactor operation across a broad control voltage range.

Key Features

• AF Technology: Features a wide control voltage range of 100–250 V AC/DC, providing reliable contactor operation across a broad control voltage range.

• Pre-mounted Auxiliary Contacts: Comes equipped with factory-fitted auxiliary contacts (1 NO and 1 NC) and main circuit bars.

• Design Standard: Built in accordance with IEC 60947-4-1 standards for high reliability and safety.

Technical Specifications

• Manufacturer: ABB

• Series: AF Series (AF265)

• Product ID: 1SFL547002R1311

• Number of Poles: 3P (3 Main Contacts NO, 0 NC)

• Auxiliary Contacts: 1 NO / 1 NC

• Rated Operational Voltage ($U_e$): Main Circuit 1000 V

• Rated Operational Current AC-1 ($I_e$): 400 A @ 40°C / 350 A @ 55°C / 290 A @ 70°C at 690 V; 350 A @ 40°C / 300 A @ 55°C / 240 A @ 70°C at 1000 V

• Rated Operational Current AC-3 ($I_e$): 265 A @ 55°C, 380–500 V / 250 A @ 55°C, 690 V / 113 A @ 55°C, 1000 V

• Rated Operational Power AC-3 ($P_e$): 132 kW @ 380/400 V / 132 kW @ 415 V / 160 kW @ 440 V / 160 kW @ 500 V / 200 kW @ 690 V / 160 kW @ 1000 V

• Conventional Free-Air Thermal Current ($I_{th}$): 400 A (at 40°C)

• Rated Control Circuit Voltage ($U_c$): 100…250 V 50/60 Hz and DC

• Rated Insulation Voltage ($U_i$): 1000 V (acc. to IEC 60947-4-1) / 1000 V (acc. to UL/CSA)

• Rated Impulse Withstand Voltage ($U_{imp}$): Main Circuit 8 kV

• Mechanical Durability: 5 million cycles

Dimensions & Weight

• Product Net Width: 140 mm

• Product Net Depth / Length: 180 mm

• Product Net Height: 225 mm

• Product Net Weight: 3.9 kg

Conclusion

The ABB AF265-30-11-13 3-pole magnetic contactor provides reliable power switching and motor control for industrial applications, featuring a wide control voltage range of 100–250 V AC/DC.
