Description

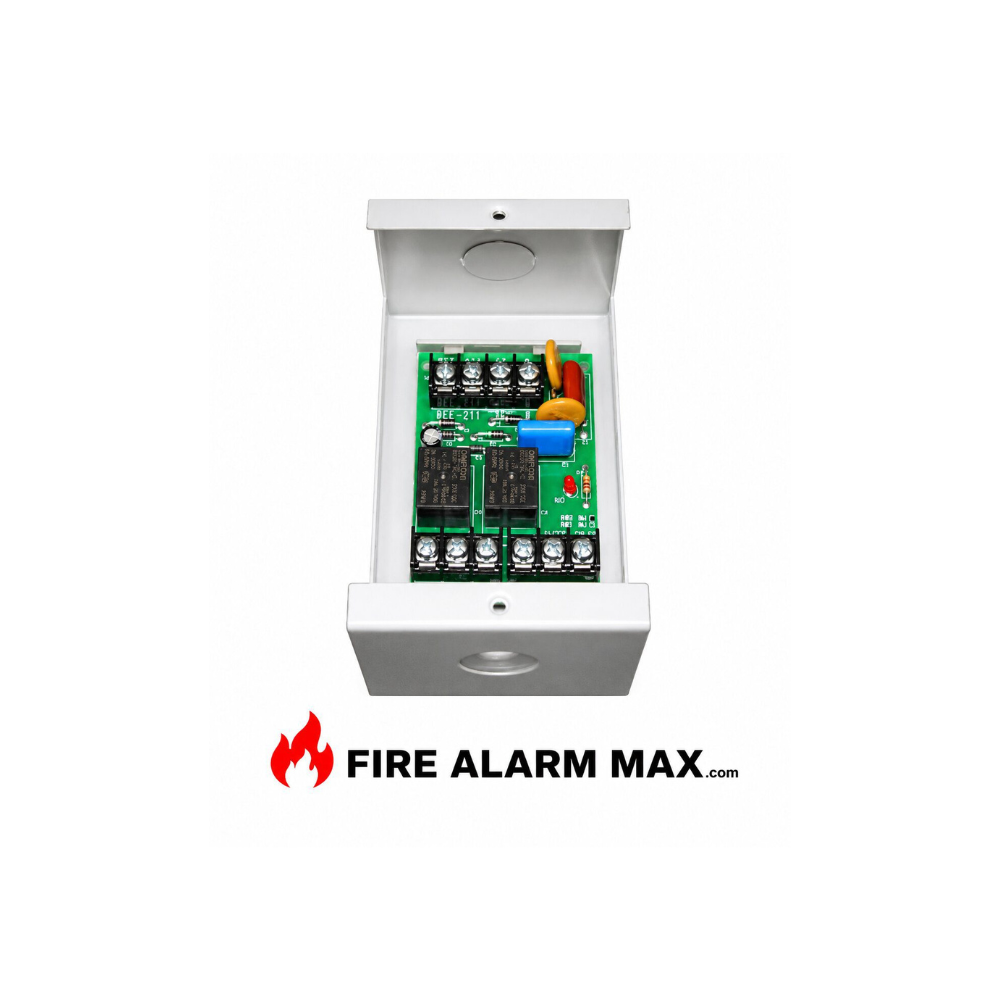

Product name: Air Products & Controls MR-201/C Relay Assembly Price in BD
Brand / Manufacturer: Air Products & Controls (APC / Space Age Electronics)
Product Overview
The Air Products & Controls MR-201/C functions as an enclosure-mounted multi-voltage control relay assembly designed for fire alarm circuits and auxiliary safety control applications. Technicians utilize this relay assembly to switch auxiliary equipment loads, HVAC fan shutoff systems, and emergency door holder circuits based on control panel signals.
Furthermore, the MR-201/C supports multi-voltage operation and energizes from a single input control voltage source. Specifically, installers connect power to appropriate terminals using $24\text{ (18–35) VDC}$, $24\text{ VAC}$, $120\text{ VAC}$, or $230\text{ VAC}$ inputs. Additionally, DC input control terminals require strict polarity verification during installation.
Key Features
-
Multi-Voltage Input Options: Operates from $24\text{ (18–35) VDC}$, $24\text{ VAC}$, $120\text{ VAC}$, or $230\text{ VAC}$ input control sources.
-
Polarized DC Inputs: Incorporates polarized DC control input terminals to prevent reverse polarity connection errors.
-
Enclosure-Mounted Assembly: Features a protective metal backbox enclosure for standalone surface mounting.
-
Auxiliary Load Switching: Controls external safety circuits, emergency door releases, HVAC shutdowns, and visual alarm signals.
-
UL Listed Assembly: Meets UL listed safety standards as a complete control unit accessory assembly for fire protective signaling systems.
Installation & System Compatibility Notes
-
Control Panel Integration: Intended for use with compatible fire alarm control panels and auxiliary control circuits.
-
Voltage Selection: Installers must verify wiring to the correct input terminals based on the selected operating voltage ($24\text{ VDC/VAC}$, $120\text{ VAC}$, or $230\text{ VAC}$).
-
Enclosure Installation: Install the assembly according to the manufacturer’s mounting and wiring instructions.”
Technical Specifications Overview
-
Brand: Air Products & Controls (APC)
-
Model: MR-201/C
-
Product Type: Multi-Voltage Control Relay (Enclosure Mounted)
-
Operating Input Voltages: $24\text{ (18–35) VDC}$, $24\text{ VAC}$, $120\text{ VAC}$, $230\text{ VAC}$
-
DC Input Polarity: Polarized DC input
-
Operating Temperature Range: $0^\circ\text{C}$ to $49^\circ\text{C}$ ($32^\circ\text{F}$ to $120^\circ\text{F}$)
-
Enclosure Dimensions ($\text{H} \times \text{W} \times \text{D}$): $5.125\text{ in.} \times 3.125\text{ in.} \times 2.50\text{ in.}$ (approx. $130\text{ mm} \times 79\text{ mm} \times 64\text{ mm}$)
-
Agency Compliance: UL Listed Assembly
-
Application Environment: Indoor fire alarm and auxiliary life safety control circuits
Conclusion
The Air Products & Controls MR-201/C Control Relay Assembly delivers reliable auxiliary circuit switching for life safety systems. In addition, its multi-voltage capability ($24\text{ VDC/VAC}$, $120\text{ VAC}$, $230\text{ VAC}$), polarized DC inputs, robust enclosure design, and UL listing support structured control integration across commercial facilities.
