Industrial Medium Enterprise Environment Monitoring System, 48VDC Power — E-5D-IND48VLT

Description

Product Name: Industrial Medium Enterprise Environment Monitoring System, 48VDC Power — E-5D-IND48VLT

Manufacturer: NTI (Network Technologies Inc)

Product Overview

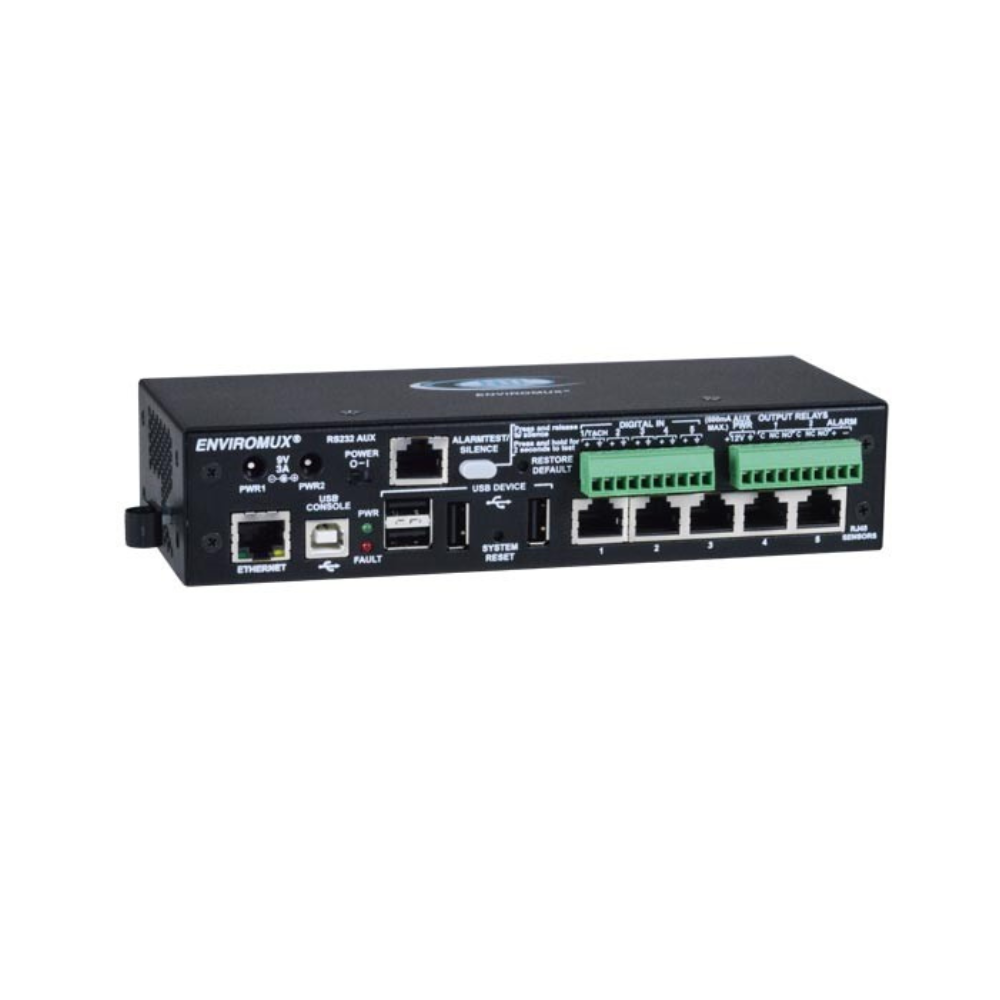

The ENVIROMUX® E-5D-IND48VLT is a high-performance environment monitoring system (EMS). It is expertly engineered for extreme industrial and telecom environments. The system provides continuous, real-time monitoring of critical conditions, including temperature, humidity, and water presence. Additionally, it tracks power status, intrusion, and smoke levels. Furthermore, the system triggers immediate alerts whenever sensor readings deviate from configured thresholds. You can receive these notifications via email, LEDs, alarm beacons, or sirens. Moreover, it supports SNMP, voice phone calls, and SMS messages through an external USB 3G modem.

Key Features

• Extreme Thermal Range: This model is specifically built for harsh, outdoor, or industrial settings. Consequently, it supports an ultra-wide operating temperature range of -40 to 185°F (-40 to 85°C).

• Telecom-Grade 48VDC Power: The unit is perfectly suited for 48V telecom sites. It accepts 36~72VDC (48VDC nominal) to ensure seamless power integration.

• Integrated & Scalable Sensing: The system features two internal sensors for precise temperature and humidity tracking. Moreover, it supports five external sensors, five digital inputs, and two output relays for comprehensive control.

• Smart Alerting & Logic: You can configure up to 50 distinct events and 20 “Smart Alerts.” As a result, the system uses complex event combinations to trigger specific responses. It also supports SSH commands to perform remote machine shutdowns or reboots.

• Cascading Capability: You can easily cascade up to five compatible ENVIROMUX systems. This allows for centralized, streamlined monitoring of all units through a single web interface.

• Advanced Security: The system prioritizes security using protocols like HTTPS, SSHv2, SSLv3, and IP Filtering. Furthermore, it supports LDAPv3 and AES 256-bit encryption. Finally, access is strictly managed via 16-character authentication.

• IP Camera Integration: The unit seamlessly integrates with NTI’s IP network cameras. Therefore, you can view live video alongside your environmental data and trigger snapshots based on specific events.

Technical Specifications

• Power Input: 36~72VDC (48VDC nominal).

• Internal Sensors:

  • Temperature: -40 to 185°F (-40 to 85°C). Accuracy is ±1.62°F (for -40 to 14°F) and ±0.72°F (for 14 to 185°F).

  • Humidity: 15% to 90% relative humidity. Accuracy is ±3% (15–80% RH) and ±4% (80–90% RH).

• Digital I/O: 5 screw terminal pairs for dry contact devices and 2 potential-free output relays.

• Connectivity: 5 RJ45 sensor ports, 1 × 10/100Base-T Ethernet port, 4 × USB Type-A ports, 1 × USB Type-B console port, 1 × RS232 AUX port, and 1 Alarm port.

• Operating Environment: Temperature range is -40 to 185°F (-40 to 85°C). Relative humidity is 15% to 90% non-condensing.

• Reliability & Compliance: CE and RoHS compliant. It includes a 2-year warranty for your peace of mind.

Conclusion

Dream Technologies BD is a premier provider of NTI environmental monitoring solutions in Bangladesh. We offer professional guidance and dedicated technical support. Whether you need to deploy systems in extreme industrial sites or critical telecom facilities, we are here to help. Finally, let our team protect your valuable assets with expert integration services.
