APC 9K Series Switched 0U Rack PDU Price in Bangladesh (APDU9966)

Description

Product Name: APC  9K Series Switched 0U Rack PDU Price in Bangladesh (APDU9966)

Manufacturer: APC (Schneider Electric)

Product Overview

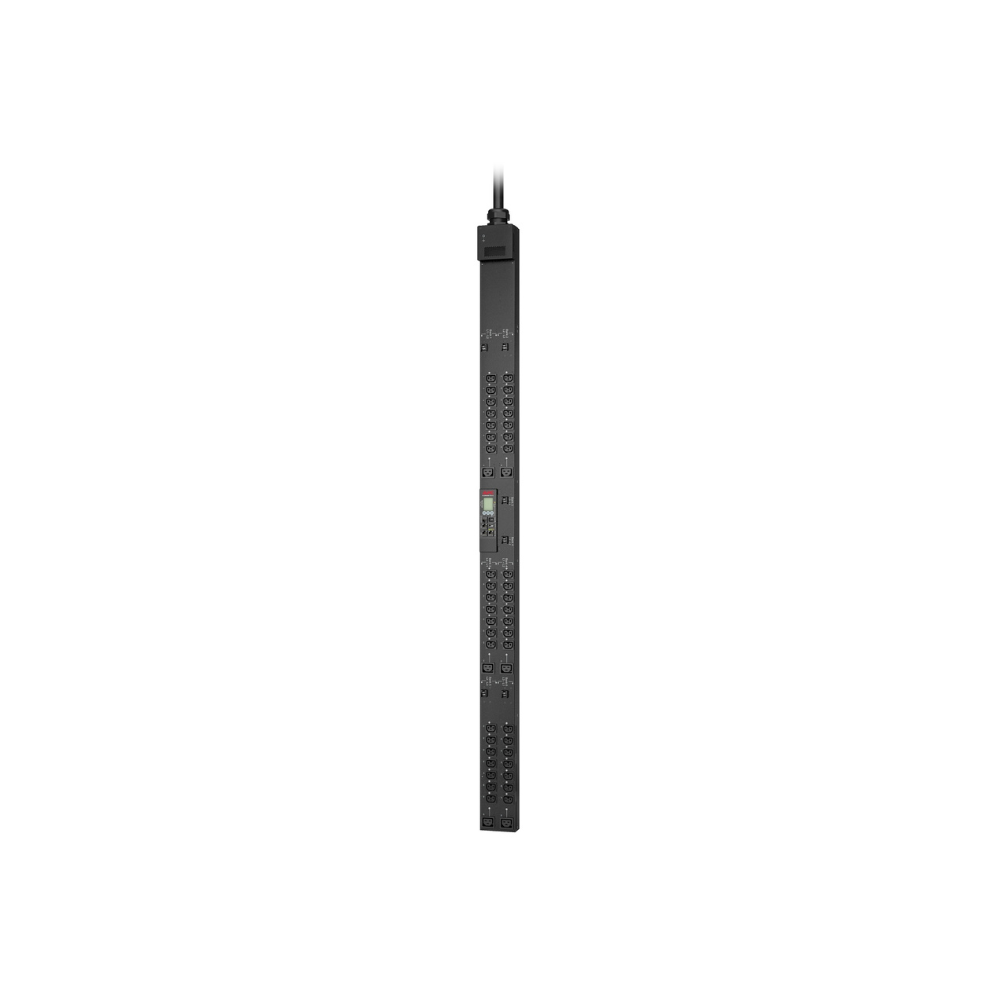

The APC NetShelter Switched Rack PDU, 9K series, 0U, 60A, 208V 3-phase (Model: APDU9966) is a high-density, enterprise-grade power distribution unit engineered to provide user-customizable power control and remote management. Featuring a maximum power capacity of 17.3 kW, an IEC 60309 60A 3P+PE input connection plug with a 2 m (6.5 ft) cord, and 32 total outlets comprising 20 IEC C13/C15 hybrid outlets and 12 IEC C19/C21 hybrid outlets, this switched PDU supports high-power data center environments. It includes reliable circuit breaker protection (six 20A double-pole breakers across 6 banks), 60°C operating temperature support under full load, and comprehensive remote monitoring and control capabilities.

Key Features and Benefits

• Advanced Switched Capabilities: Enables individual outlet-level remote On/Off control for power recycling, power sequencing, and preventing unauthorized use of specific ports.

• Remote Monitoring and Control: Supports remote oversight and power management to help administrators efficiently track electrical loads and system status.

• 0U Vertical Rack Integration: Designed for efficient side mounting inside standard server racks, preserving valuable horizontal U-space for IT hardware.

• High-Density Hybrid Outlets: Equipped with 20 C13/C15 and 12 C19/C21 versatile hybrid outlets capable of operating at up to 60°C ambient temperature.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: APDU9966 (NetShelter Switched Rack PDU, 9K Series)

• Product Type: Switched Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 208V, 3-phase

• Main Output Voltage: 208V

• Network Frequency: 50/60 Hz

• Input Current Limits / Line Rated Current: 60A input limit / 48A derated line rated current

• Maximum Power Capacity: 17.3 kW

• Input Connection Type: IEC 60309 60A 3P+PE (with 2 m / 6.5 ft cable)

• Output Outlets: 20 × IEC C13/C15 hybrid outlets, 12 × IEC C19/C21 hybrid outlets

• Overcurrent Protection: Six (6) 20A double-pole circuit breakers (6 output banks)

• Dimensions (H × W × D): 1833 × 111 × 76 mm (72.15 × 4.37 × 3.01 in)

• Net Weight: 14 kg (30.85 lb)

• Certifications & Standards: cULus Listed (UL 62368-1), FCC Part 15 / ICES-003, RoHS Compliant

Ideal Applications

• Enterprise and Hyperscale Data Centers

• High-Density Three-Phase Server Racks and Blade Systems

• Telecom Distribution Hubs Requiring 0U Vertical Power Management

• Mission-Critical IT Environments Requiring Outlet-Level Switching and High-Temperature Resilience

Conclusion

The APC NetShelter Switched 9K Series APDU9966 combines a high-capacity 17.3 kW three-phase power distribution framework with a balanced outlet layout (20 C13/C15 & 12 C19/C21) and granular outlet-level switching, making it an exceptional choice for modern high-density data centers across Bangladesh.
