APC NetShelter Metered-by-Outlet Rack PDU Price in Bangladesh (AP8481)

Description

Product Name: APC NetShelter Metered-by-Outlet Rack PDU Price in Bangladesh (AP8481)

Manufacturer: APC (Schneider Electric)

Product Overview

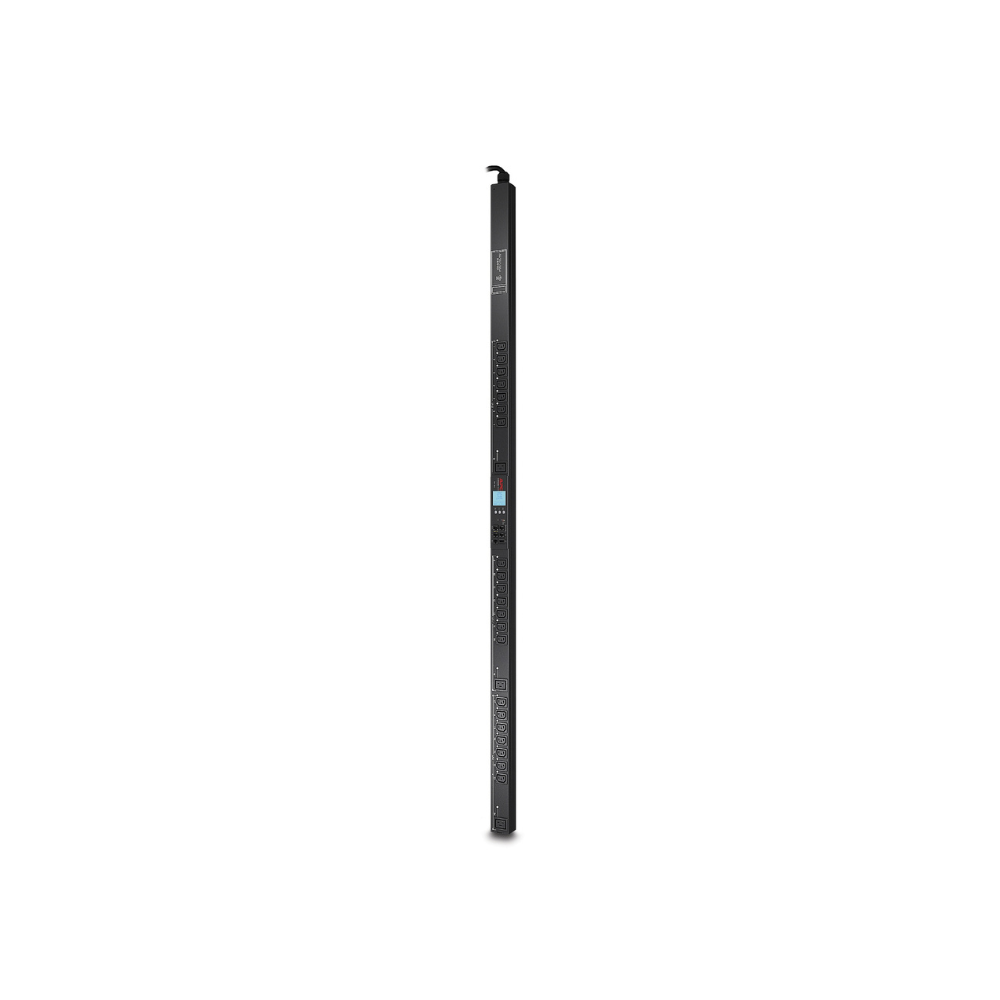

The APC NetShelter Metered-by-Outlet Rack PDU, 2G, 0U, 11.0kW, 230V, 21 C13 and 3 C19 outlets (Model: AP8481) provides individual outlet power metering to enable energy optimization and circuit protection. Current metering delivers real-time remote monitoring of connected loads, providing power utilization data that allows Data Center Managers to make informed decisions on load balancing and right-sizing IT environments to lower total cost of ownership. It includes real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra-low profile circuit breakers, with access through secure Web, SNMP, or Telnet interfaces.

Key Features and Benefits

• Metered-by-Outlet: Provides individual outlet power metering for detailed energy optimization and precise circuit protection.

• Active Power Monitoring: Delivers real-time remote monitoring of connected loads and power utilization data to assist with load balancing and capacity planning.

• Sensor Port: Includes an integrated temperature/humidity sensor port for environmental monitoring within the rack.

• Locking IEC Receptacles: Compatible with locking power cords to prevent accidental disconnections.

• Ultra-Low Profile Circuit Breakers: Designed with compact breakers to maximize usable space and ease installation.

• 0U Vertical Rack Integration: Designed for efficient, tool-less side mounting on standard vertical server enclosures.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8481 (NetShelter Metered-by-Outlet PDU 2G)

• Product Type: Metered Outlet Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 400V 3-phase

• Main Output Voltage: 230V

• Input Frequency: 50/60 Hz

• Input Current Limits: 16A

• Line Rated Current: 16A

• Maximum Total Current Draw per Phase / Max Line Current: 16A

• Load Capacity: 11000 VA (11.0 kW)

• Input Connection Type: IEC 60309 16A / 20A, 3P+N+PE (with 5.9 ft / 1.8 m cable)

• Output Outlets: 21 × IEC 60320 C13 and 3 × IEC 60320 C19

• Operating Temperature Range: 23°F to 140°F (-5°C to 60°C)

• Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)

• Operating Altitude: 0 to 10,000 ft

• Storage Altitude: 0 to 50,000 ft (0 to 15,240 m)

• Dimensions (H × W × D): 72.008 in × 2.2 in × 2.008 in (1829 mm × 56 mm × 51 mm)

• Net Weight: 18.10 lb (8.21 kg)

• Provided Equipment: CAN Port Terminator, Installation Guide, Rack Mounting Brackets, Safety Guide, Serial Configuration Cable

• Product Certifications: cUL Listed, UL Listed, VDE

• Standards: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003

Ideal Applications

• High-Density Data Centers and Colocation Facilities

• Enterprise Server Rooms Requiring Outlet-Level Power Metering

• Mission-Critical IT Racks Managed via Web or SNMP Infrastructure

Conclusion

The APC NetShelter AP8481 Metered-by-Outlet Rack PDU delivers an 11.0 kW 3-phase load capacity across 24 outlets (21 × C13 and 3 × C19) in a space-saving 0U vertical form factor, providing enterprise data centers with precise individual outlet monitoring and power distribution control.
