APC NetShelter Metered Rack PDU Price in Bangladesh (AP8862)

Description

Product Name: APC NetShelter Metered Rack PDU Price in Bangladesh (AP8862)

Manufacturer: APC (Schneider Electric)

Product Overview

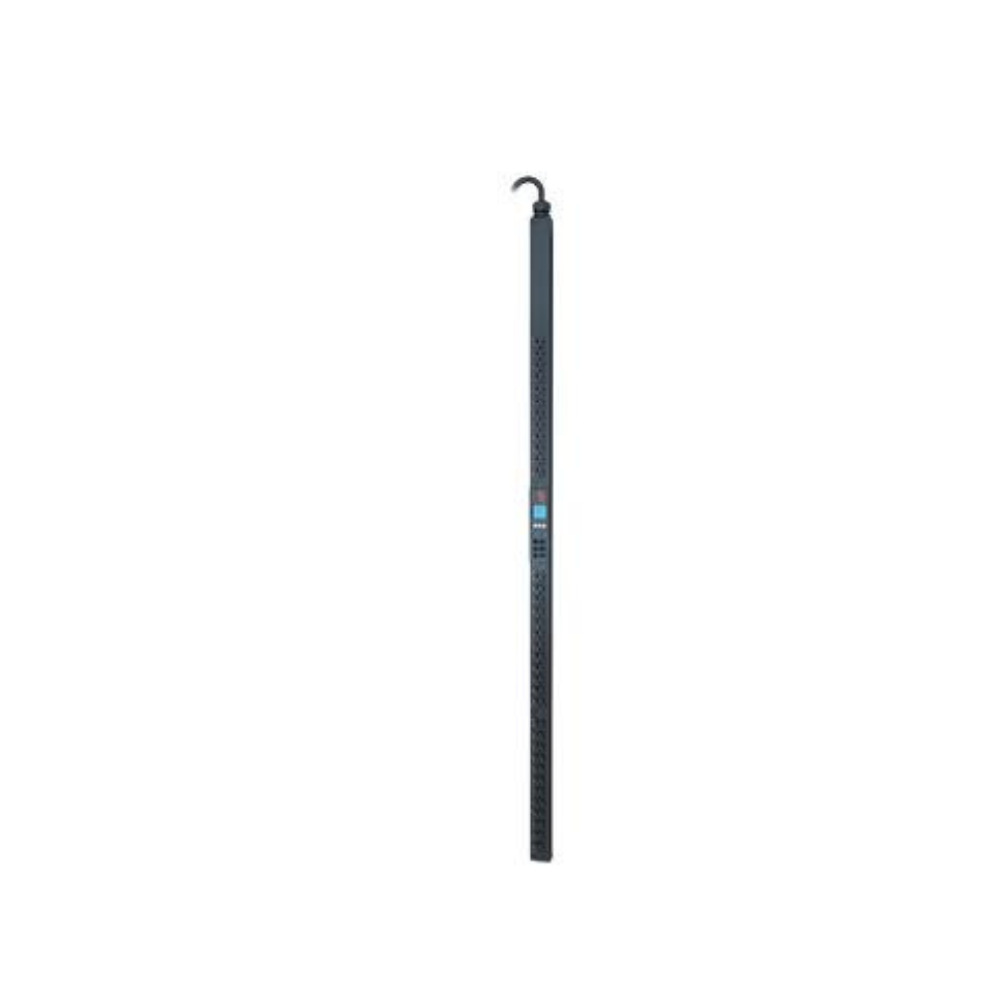

The APC NetShelter Metered Rack PDU, 2G, 0U, 20A, 120/208V, 3 phase, 36 NEMA 5-20R outlets (Model: AP8862) is an intelligent power distribution unit engineered to deliver active metering for energy optimization and circuit protection. Featuring a 5,760 VA load capacity, a NEMA L21-20P input connection plug with a 5.97 ft (1.82 m) cord, and 36 × NEMA 5-20R output outlets, this metered PDU supports enterprise server rooms and data centers. It features a 0U vertical form factor designed for side mounting inside server racks while offering real-time power monitoring and user-defined alarm thresholds.

Key Features and Benefits

• Active Power Metering: Provides real-time remote and local monitoring of connected loads to enable energy optimization and efficient load balancing.

• Power Utilization Monitoring: Provides power utilization data for amps, volts, kW, and kWh to support capacity planning and right-sizing.

• Secure Network Management: Supports real-time remote monitoring and management through web, SNMP, or Telnet interfaces.

• User-Defined Alarms: Features customizable alert thresholds to warn of potential circuit overloads before critical IT failures occur.

• 0U Vertical Rack Integration: Designed for efficient side mounting inside standard server cabinets, preserving internal space for IT hardware.

• Comprehensive Management Interfaces: Supported by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8862 (NetShelter Metered Rack PDU 2G)

• Product Type: Metered Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 208V 3-phase

• Main Output Voltage: 120V

• Input Frequency: 50/60 Hz

• Input Current Limit: 20A

• Line Rated Current: 16A

• Maximum Total Current Draw per Phase: 16A

• Load Capacity: 5760 VA

• Input Connection Type: NEMA L21-20P (with 5.97 ft / 1.82 m cable)

• Output Outlets: 36 × NEMA 5-20R outlets

• Operating Temperature Range: -5°C to 60°C (23°F to 140°F)

• Storage Temperature Range: -25°C to 65°C (-13°F to 149°F)

• Dimensions (H × W × D): 1791 mm × 56 mm × 44 mm (70.5 in × 2.2 in × 1.7 in)

• Net Weight: 6.04 kg (13.32 lb)

• Certifications & Standards: cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1

Ideal Applications

• Enterprise Server Rooms and Data Centers Requiring Active Power Metering

• Server Rack Environments Requiring 0U Vertical Power Distribution

• Mission-Critical Facilities Requiring Load Balancing and Right-Sizing

• IT Environments Utilizing Secure Web/SNMP Management Infrastructure

Conclusion

The APC NetShelter Metered Rack PDU AP8862 combines a 5,760 VA load capacity 0U vertical form factor with 36 × NEMA 5-20R outlets, alongside real-time active metering, serving as a power management solution for modern server rack environments.
