APC NetShelter Metered Rack PDU Price in Bangladesh (AP8888)

Description

Product Name: APC NetShelter Metered Rack PDU Price in Bangladesh (AP8888)

Manufacturer: APC (Schneider Electric)

Product Overview

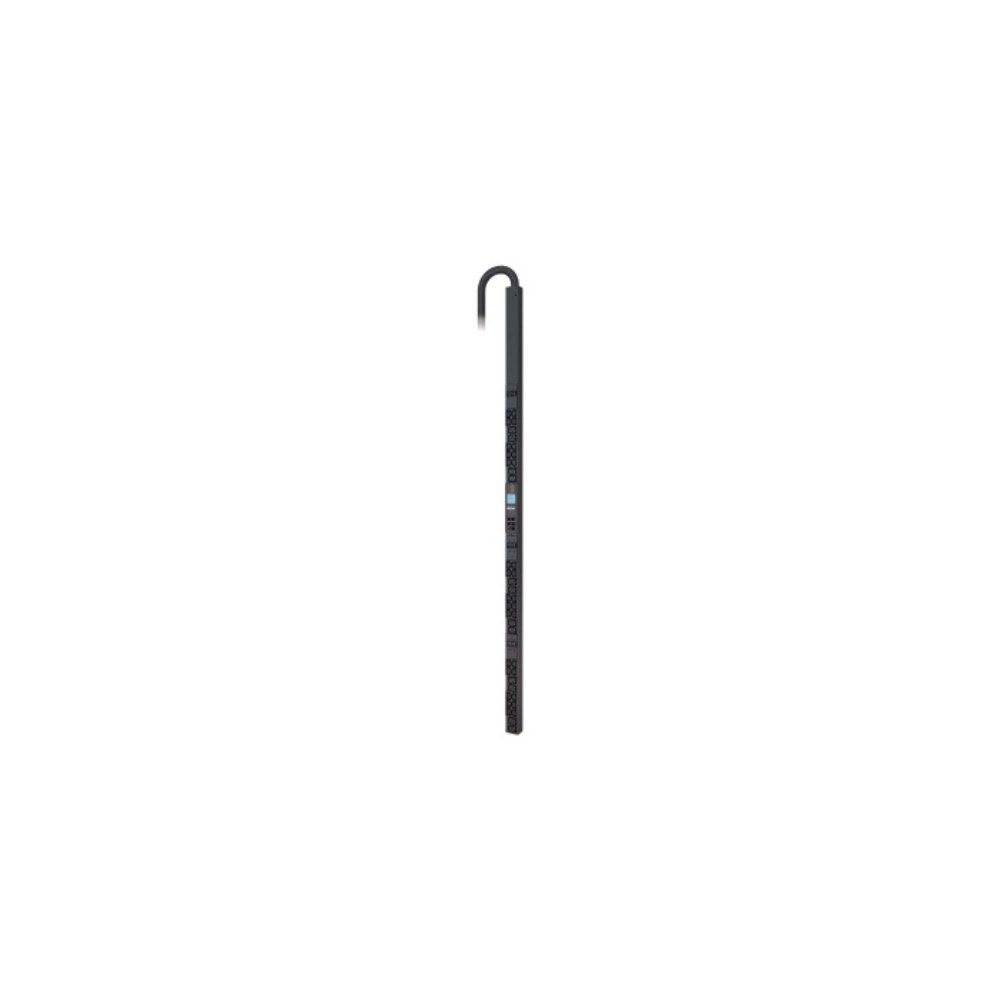

The APC NetShelter Metered Rack PDU, 2G, 0U, 23.0kW, 240V, 30 C13 and 12 C19 outlets (Model: AP8888) is an advanced intelligent power distribution unit engineered to deliver active metering for energy optimization and circuit protection in high-density IT environments. Featuring a 23,000 VA load capacity, an IEC 60309 60A 3P+N+E input connection plug with a 5.97 ft (1.82 m) cord, 30 × IEC 60320 C13 output outlets, and 12 × IEC 60320 C19 output outlets, this metered PDU supports enterprise server rooms, network closets, and large-scale data centers. It features a space-saving 0U vertical form factor designed for side mounting inside server racks while offering real-time power monitoring and user-defined alarm thresholds.

Key Features and Benefits

• Active Power Metering: Provides real-time remote and local monitoring of connected loads to enable energy optimization and efficient load balancing.

• User-Defined Alarms: Features customizable alert thresholds to warn of potential circuit overloads before critical IT failures occur.

• 0U Vertical Rack Integration: Designed for efficient side mounting inside standard server cabinets, preserving internal U space for IT hardware.

• Comprehensive Management Interfaces: Supports secure Web, SNMP, and Telnet access, complemented by APC Centralized Management platforms.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8888 (NetShelter Metered Rack PDU 2G)

• Product Type: Metered Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 400V 3-phase

• Main Output Voltage: 240V

• Input Frequency: 50/60 Hz

• Input Current Limit: 40A

• Line Rated Current: 32A

• Maximum Total Current Draw per Phase: 32A

• Load Capacity: 23000 VA

• Input Connection Type: IEC 60309 60A 3P+N+E (with 5.97 ft / 1.82 m cable)

• Output Outlets: 30 × IEC 60320 C13 outlets, 12 × IEC 60320 C19 outlets

• Operating Temperature Range: -5°C to 60°C (23°F to 140°F)

• Storage Temperature Range: -25°C to 65°C (-13°F to 149°F)

• Dimensions (H × W × D): 1829 mm × 56 mm × 51 mm (72.008 in × 2.2 in × 2.008 in)

• Net Weight: 10.1 kg (22.3 lb)

• Certifications & Standards: cUL Listed, UL Listed, VCCI Class A, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003

Ideal Applications

• Enterprise Server Rooms and Data Centers Requiring Active Power Metering

• High-Density IT Racks Requiring 0U Vertical Power Distribution

• Mission-Critical Facilities Requiring Load Balancing and Right-Sizing

• IT Environments Utilizing Secure Web/SNMP Management Infrastructure

Conclusion

The APC NetShelter Metered Rack PDU AP8888 combines a high-capacity 0U vertical form factor with 30 × C13 outlets, 12 × C19 outlets, and real-time active metering, serving as a robust power management solution for modern high-density IT environments.
