Description
Product Name: ATFLOR 600mm Trunking Bare Steel Raised Access Floor System Price in Bangladesh
Manufacturer: ATFLOR
Product Overview

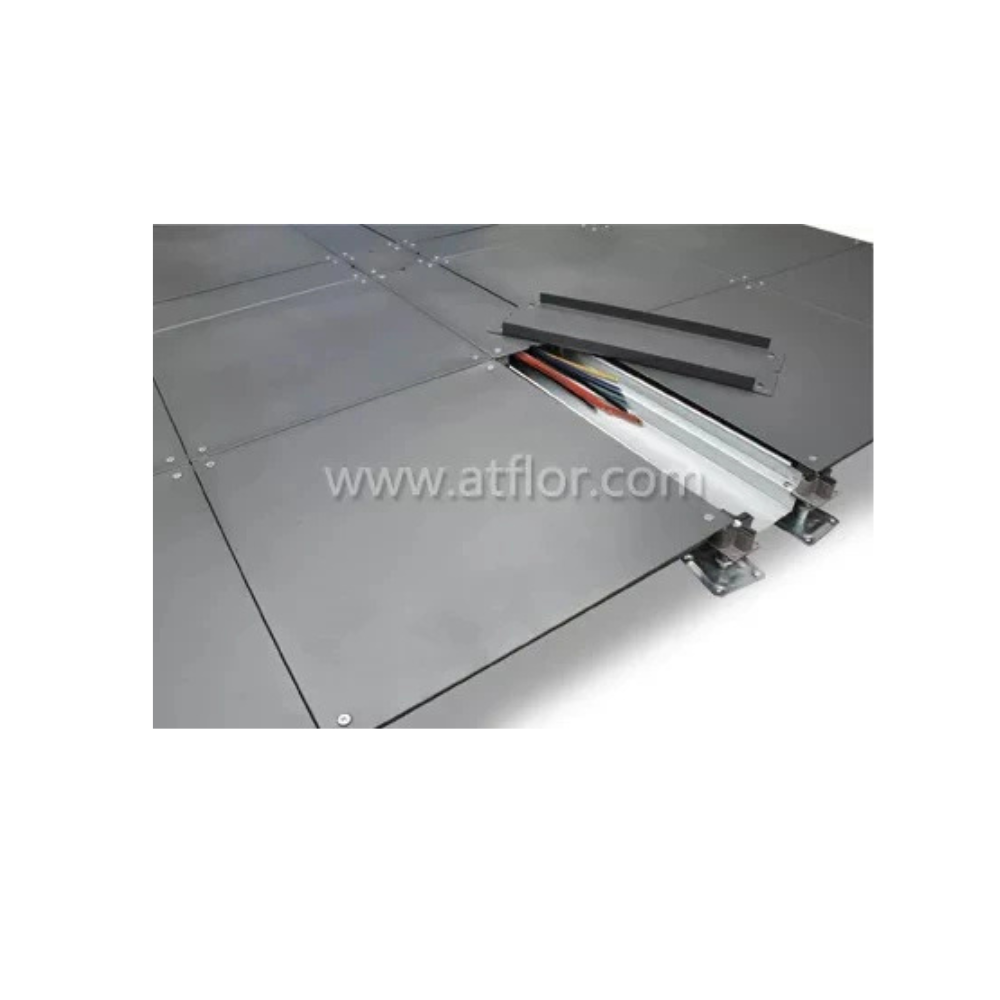

The ATFLOR 600mm Trunking Bare Steel Raised Access Floor System features a trunking layout designed for efficient cable management, making wire arrangement and relocation effortless. Spanning product types FS440 to FS1500, this system provides a low-profile height range from 60 mm to 300 mm. It allows for wire connections at any point without cutting the floor and adapts smoothly to various plug socket terminals.
Main components include panels, trunk over plates, and corner cover plates, alongside optional accessories such as electrical outlets, trunk bottom plates, and corner bottom plates.
Key Features
-
Integrated Trunking Layout: Features a design tailored for cable management space, making arrangement and relocation straightforward.
-
Flexible Wiring & Terminals: Convenient for connecting wires at any point without cutting the floor and compatible with all types of plug socket terminals.
-
Modular Components & Accessories: Comprises panels, trunk over plates, and corner cover plates, with optional electrical outlets and trunk bottom plates.
-
Low-Profile Height Range: Available in heights from 60 mm to 300 mm, making it well-suited for new office spaces and surface wire retrofits in older buildings.
Characteristic Specifications
-
Cable & Wire Layout: Trunkings can be applied at any unit according to the volume of cable and wire, solving traditional wiring hazards.
-
Material & Lifecycle Benefits: High recyclability and convenient removal help reduce long-term costs, ensuring a long performance life.
Technical Specification
| Model | Size (mm) | Fire Performance | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (N) 10 Times | Rolling Load (N) 10,000 Times |
| FS440 | 600×600×34 | A | $\ge 440$ | $\ge 1,960$ | $\ge 200$ | $\ge 295$ | $\ge 5,880$ | $\ge 9,720$ | 1,958 | 1,566 |
| FS662 | 600×600×34 | A | $\ge 662$ | $\ge 2,950$ | $\ge 301$ | $\ge 445$ | $\ge 8,850$ | $\ge 12,500$ | 2,946 | 2,356 |
| FS800 | 600×600×34 | A | $\ge 800$ | $\ge 3,560$ | $\ge 363$ | $\ge 536$ | $\ge 10,680$ | $\ge 16,100$ | 3,560 | 2,670 |
| FS1000 | 600×600×34 | A | $\ge 1,000$ | $\ge 4,450$ | $\ge 450$ | $\ge 670$ | $\ge 13,350$ | $\ge 23,000$ | 4,450 | 3,560 |
| FS1250 | 600×600×34 | A | $\ge 1,250$ | $\ge 5,560$ | $\ge 567$ | $\ge 780$ | $\ge 16,680$ | $\ge 33,000$ | 5,560 | 4,450 |
| FS1500 | 600×600×34 | A | $\ge 1,500$ | $\ge 6,660$ | $\ge 680$ | $\ge 1,005$ | $\ge 19,980$ | $\ge 34,500$ | 6,675 | 5,340 |
Ideal Applications
-
5 class office buildings
-
Computer rooms and technical facilities
-
Locations requiring overhead cable routing and large wire volumes
-
Surface wire remodeling projects in aging office buildings
Conclusion
The ATFLOR 600mm Trunking Bare Steel Raised Access Floor System delivers structural load performance, Class A fire safety, and integrated side-trunking management for modern offices and computer rooms. By combining flexible wire connection options, customizable trunking units, and low-profile height configurations from 60 mm to 300 mm, this system provides an effective foundation for overhead cable routing.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
