Description
Product Name: ATFLOR Calcium Sulphate Raised Access Floor System Price in Bangladesh
Manufacturer: ATFLOR
Product Overview

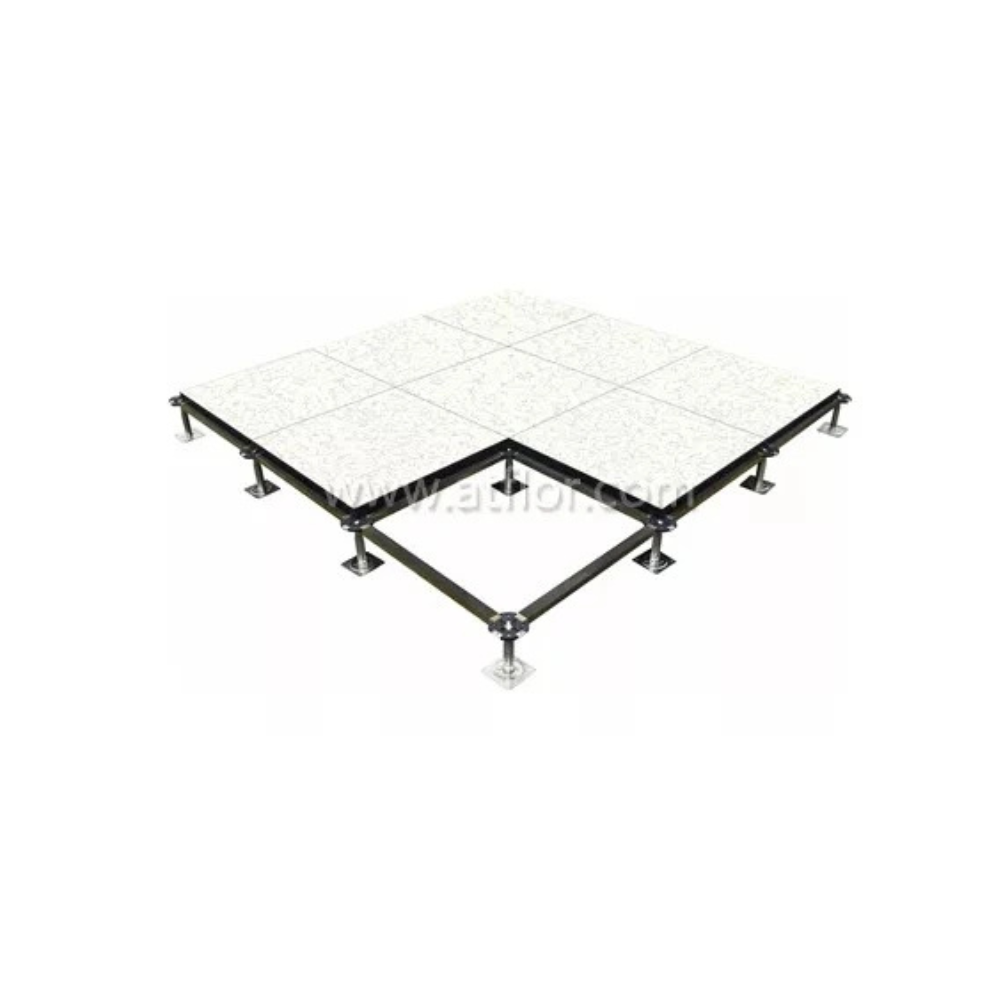

The ATFLOR Calcium Sulphate Raised Access Floor System is built using an environment-friendly calcium sulphate board with PVC/ABS-covered edges and steel or aluminum bottom plates. Delivering antistatic properties, Class A fire resistance, soundproofing, dustproofing, and electromagnetic shielding, this system maintains stable performance under varying humidity and temperature conditions.
The product range is specified for the FS800 to FS1500 product types, utilizing 600 × 600 mm panels with a thickness available from 25 mm to 38 mm.
Key Features
-
Protective & Environmental Properties: Prevents static effectively while offering Class A fire resistance, antiskid, soundproof, dustproof, and electromagnetic shielding benefits with environment-friendly composition.
-
Versatile Surface Compatibility: Features panels with PVC/ABS-covered edges and compatibility with widespread brand top tiles such as carpet, HPL, PVC, ceramic stone, and alternative finishes.
-
Stable Environmental Performance: Designed to maintain stable performance under varying humidity and temperature conditions.
-
Robust Support Framework: Integrates die-casting steel structure pedestals with plastic top gaskets, with or without square tube stringers for flexible system connectivity.
-
Height Adjustability & Cabling: Accommodates finished floor heights (FFH) ranging from 70 mm to 1500 mm with flexible assembly, large wire capacity, and good exchangeability.
Characteristic Specifications
-
Panel Construction: Calcium sulphate board with PVC/ABS-covered edges, steel or aluminum bottom plates, and customizable top tiles (carpet, HPL, PVC, ceramic stone, etc.). Panel thickness varies from 25 mm to 38 mm.
-
Pedestal & Stringer Construction: Die-casting steel structure pedestal with plastic gasket on top, featuring heights from 70 mm to 1500 mm, with or without square tube stringers (standard size: 535 × 20 × 30 mm).
-
Application Scope: Ideal for computer rooms, network service rooms, monitoring centers, electronic workshops, cleanrooms, dustless chambers, 5A class office buildings, security union plazas, and futures trading buildings.
Technical Specification
| Model | Size (mm) | Fire Performance | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (N) 10 Times | Rolling Load (N) 100,000 Times |
| FS800 | 600×600 | A | $\ge 800$ | $\ge 3,350$ | $\ge 363$ | $\ge 536$ | $\ge 11,250$ | $\ge 16,100$ | 3,560 | 2,670 |
| FS1000 | 600×600 | A | $\ge 1,000$ | $\ge 4,550$ | $\ge 450$ | $\ge 670$ | $\ge 13,350$ | $\ge 23,000$ | 4,450 | 3,560 |
| FS1250 | 600×600 | A | $\ge 1,250$ | $\ge 5,560$ | $\ge 567$ | $\ge 780$ | $\ge 16,680$ | $\ge 33,000$ | 5,560 | 4,450 |
| FS1500 | 600×600 | A | $\ge 1,500$ | $\ge 6,675$ | $\ge 670$ | $\ge 1,005$ | $\ge 19,892$ | $\ge 34,500$ | 6,675 | 5,340 |
Standard Pedestal and Stringer Specifications
-
Finished Floor Height (FFH) $\le$ 600 mm: Tube Diameter 25 mm, Adjustment +25 / -25 mm
-
FFH 700 ~ 900 mm: Tube Diameter 32 mm, Adjustment +25 / -25 mm
-
FFH 1000 ~ 1500 mm: Tube Diameter 42 mm, Adjustment +25 / -25 mm
-
Note: Other heights can be customized.
-
Standard Stringer Size: 535 × 20 × 30 mm
Conclusion
The ATFLOR Calcium Sulphate Raised Access Floor System delivers high load performance from FS800 to FS1500, Class A fire rating, and robust environmental stability for computer rooms, cleanrooms, and corporate offices. By combining adjustable steel pedestals, stringer connections, and versatile tile options, it provides a secure flooring infrastructure for modern technical environments.
