Bosch DCNM-WAP DICENTIS Wireless Access Point Price in Bangladesh

Description

Product Name: Bosch DCNM-WAP DICENTIS Wireless Access Point Price in Bangladesh

Manufacturer: Bosch

Product Overview

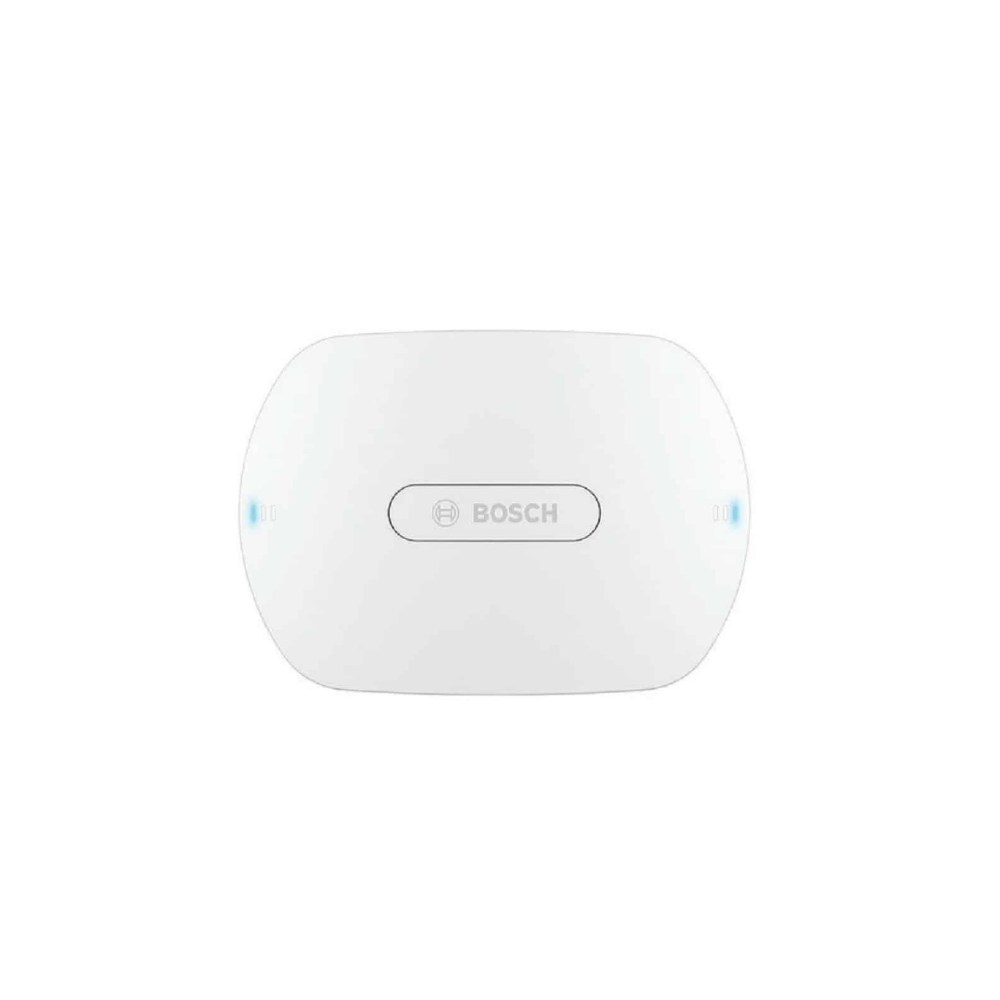

The Bosch DCNM-WAP Wireless Access Point is the central device of the DICENTIS Wireless Conference System. It links the Wireless Devices (DCNM-WD and DCNM-WDE) by means of secure wireless WPA2 communication. Featuring a built-in web browser interface, it provides a stand-alone usage option without requiring any central control unit to set up, configure, and control the conference system.

Key Features and Benefits

• Stand-Alone Usage: Operates entirely on its own with no central control unit needed.

• Standard WiFi Architecture: Built on standard WiFi according to IEEE 802.11n for clear visibility and co-existence within IT infrastructures.

• Secure Communication: Utilizes WPA2 encryption for complete communication security.

• Seamless Frequency Switching: Automatically switches frequencies across license-free 2.4 GHz and 5 GHz bands to maintain zero interference.

• High Capacity Control: Controls up to 120 DICENTIS devices for participants.

• Flexible Powering: Powered via a power supply adapter, Power over Ethernet (PoE), or DICENTIS system cable.

• Modular Expansion: Features and functionality are modularly expandable via software licensing.

Technical Specifications

• Brand / Manufacturer: Bosch

• Series: DICENTIS

• Model: DCNM-WAP

• Input Voltage (VAC): 100 VAC – 240 VAC

• Power Frequency: 50 Hz; 60 Hz

• Input Voltage (VDC): 48 VDC

• Power Consumption: 10 W

• Frequency Response (-3 dB): 80 Hz – 20,000 Hz

• Total Harmonic Distortion + Noise: 0.10%

• Minimum Dynamic Range: 98 dBA

• Minimum Signal-to-Noise Ratio: 96 dBA

• Ethernet Type: 10/100/1000BASE-T

• Audio Inputs Nominal / Max Level: -18 dBV / 18 dBV

• Audio Outputs Nominal / Max Level: -18 dBV / 20 dBV

• Wi-Fi Standard: IEEE 802.11n

• Frequency Band: 2.4 GHz and 5 GHz (ISM license free)

• Mounting Type: Ceiling-mounted, Floor-mounted, or Wall-mounted (using included universal bracket)

• Dimensions (H x W x D): 285 mm x 202 mm x 65 mm (11.20 in x 8 in x 2.60 in)

• Weight (without bracket): 725 g (1.60 lb)

• Weight (with bracket): 958 g (2.11 lb)

• Color (RAL): RAL 7035 Light gray

• Operating Temperature: 5 °C – 45 °C (41 °F – 113 °F)

• Storage Temperature: -20 °C – 70 °C (-4 °F – 158 °F)

• Operating Relative Humidity: 5% – 95% (non-condensing)

Ideal Applications

• Corporate Boardrooms and Meeting Spaces

• Government Conference Halls and Municipal Chambers

• International Summit and Multilingual Discussion Venues

• Educational Auditoriums and Institutional Meeting Rooms

• Professional Audio-Visual and Legal Communication Centers
