Bosch PLM-4P220 PLENA Matrix DSP Power Amplifier Price in BD

Description

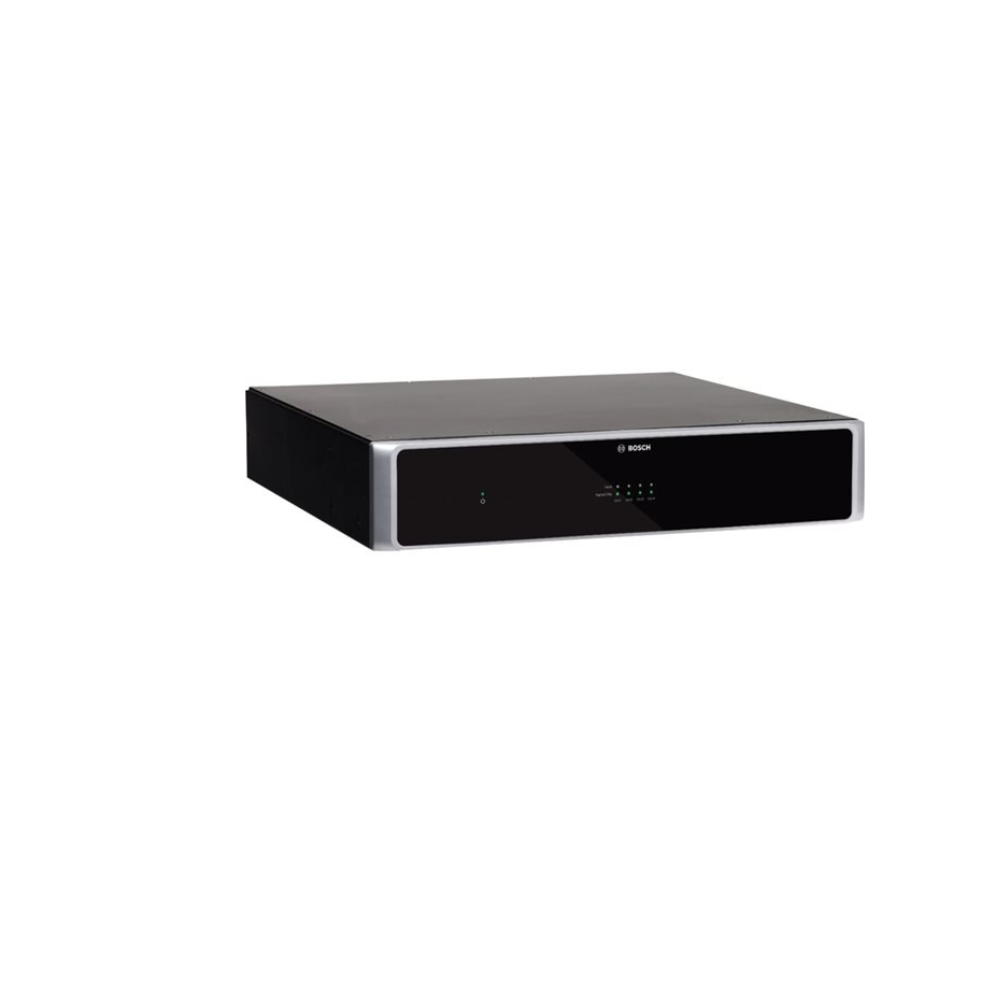

Product Name: Bosch PLM-4P220 PLENA Matrix DSP Power Amplifier Price in BD

Manufacturer: Bosch

Product Overview

The Bosch PLM-4P220 PLENA Matrix DSP Power Amplifier is a multi-channel DSP power amplifier engineered for high-quality audio and flexible control. Equipped with a built-in digital signal processor featuring a comprehensive loudspeaker library for Bosch, EV, and Dynacord products, it offers advanced multi-channel routing. Additionally, it incorporates a power-saving mode and “Amp Link” connectivity for straightforward integration with the PLM-8M8 8 Channel DSP Matrix Mixer.

Key Features and Benefits

• 4-Channel Multi-Channel Amplification: Built to provide reliable, cost-effective amplification suitable for versatile commercial audio setups.

• Built-In DSP Processor: Features an input mixer, 8th-order crossovers, 8-band parametric output EQ, 120ms delay per channel, and a Dynamic Range Compressor (DRC).

• Dynamic Bass Enhancement: Automatically adjusts the low-frequency response to provide a full sound profile when listening at lower volume levels.

• Smart Standby Mode: Reduces power consumption and operating costs, capable of automatic activation via motion detectors with sub-second wake-up response.

• Amp Link Technology: Connects directly via a shielded CAT 5 cable to transfer 4 audio channels from the PLM-8M8 DSP Matrix Mixer without separate configuration.

• Flexible Output Configuration: Supports simultaneous multi-impedance and voltage outputs including 100V, 70V, 8-ohm, and 4-ohm loads.

Technical Specifications

• Manufacturer: Bosch

• Product Name: Bosch PLM-4P220 PLENA Matrix DSP Power Amplifier

• Series: PLENA Matrix

• Model: PLM-4P220

• Mains Voltage (Nominal): 100 – 240 VAC ±10%, 50/60 Hz

• Input Voltage Limits: 90 – 264 VAC

• Power Consumption (-6dB / Idle / Standby): 412 W / 36 W / 6 W

• Rated Output Power: 220 W per channel (Continuous & Burst)

• Bridged Output Power: 385 W continuous / 445 W burst (for CH 1-2 / 3-4)

• Frequency Response (-1dB): 65 Hz to 20 kHz (+0/-3 dB)

• Inputs: 4x 3-pin XLR balanced, 4x 3-pole Phoenix terminal, 1x RJ45 (Amp Link)

• Outputs: 4x 3-pole Phoenix terminal (100V, 70V, 8 ohm, 4 ohm)

• Dimensions (H x W x D): 90 x 440 x 417 mm (19″ wide, 2RU high)

• Weight: Approx. 18 kg (39.7 lb)

• Color: Traffic black (RAL 9017) / Silver (RAL 9006)

Ideal Applications

• Shopping Centers, Schools, and Restaurants

• Bars, Nightclubs, Cafes, and Gyms

• Churches, Warehouses, and Office Buildings

• Boardrooms, Meeting Rooms, and Conference Facilities

• Regional Airports, Train Stations, and Bus Terminals

Conclusion

The Bosch PLM-4P220 PLENA Matrix DSP Power Amplifier provides a multi-channel amplification solution with integrated DSP processing, simultaneous output support, and energy-saving standby modes. Designed for applications requiring flexible audio control and reliable performance, it integrates seamlessly into standard rack configurations.
