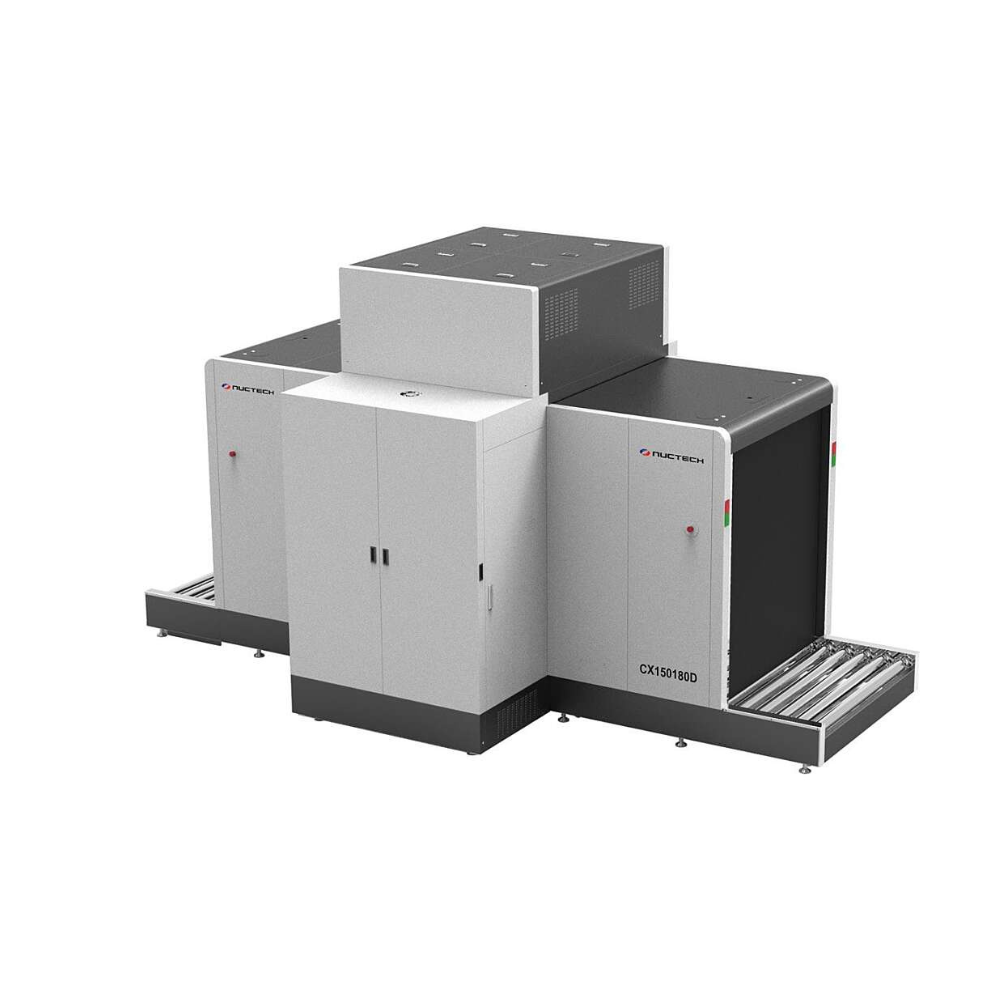

CX150180D Dual-View X-Ray Inspection System

Description

Product Name: CX150180D Dual-View X-Ray Inspection System

Manufacturer: Nuctech Company Limited

Country of Origin: China

Product Description

The CX150180D Dual-Energy Dual-View X-Ray Scanner is a next-generation security screening solution. Manufacturing teams built this extra-large system specifically for inspecting large parcels, pallets, and container volumes. It employs an innovative dual-view design that displays comprehensive scan images on dedicated monitors. Consequently, operators can efficiently detect dangerous objects and contraband hidden beneath deeply overlapping palletized regions.

This high-performance system stands out with an intuitive interface architecture and advanced image processing capabilities. Nuctech, a global leader originating from Tsinghua University, engineering groups manufacture this versatile product line to deliver exceptional screening results for ULD cargo. Furthermore, its reliable design helps logistics facility managers maintain strict safety standards without disrupting high-volume checkpoint throughput.

Most importantly, the system utilizes color-coded material classification based on atomic number signatures to assist security personnel. It smoothly separates different threat types on screen while utilizing an ergonomic interface with a professional keyboard layout. Featuring an extra-large 1550 mm by 1840 mm tunnel footprint, it easily handles massive weights up to 2000 kg. Therefore, it serves as an ideal screening choice for airports, customs facilities, railway stations, ports, logistics companies, and warehouses alike.

Key Features

• Advanced Dual-View Technology: The dual-view configuration displays comprehensive scan information on separate monitors. This setup ensures that operators quickly locate threats and contraband hidden in dense, overlapping palletized volumes.

• Optional Automated Threat Pinpointing: It features an optional automatic detection and alarm function for explosives and narcotics. As a result, terminal screening teams can perform focused threat evaluations on cargo immediately.

• High-Performance Imaging & Zoom: The system delivers superior image quality with 38 AWG wire resolution and steel penetration up to 50 mm. Additionally, it offers progressive, continuous local zoom up to 32× with a local magnifier tool.

• Advanced Image Processing & TIP: It supports processing functions like color/black & white, organic/inorganic discrimination, and high-density zone alerts. You can also add an optional Threat Image Projection (TIP) system for continuous operator performance monitoring.

• Extra-Large Tunnel & Capacity: The massive 1550 mm width and 1840 mm height tunnel footprint is perfectly designed. It effortlessly accommodates tall palletized cargo, oversized boxes, and heavy industrial parcels.

• International Safety & Certification: The machine complies with international health and radiation safety standards for X-ray leakage. Furthermore, the entire heavy-duty solution holds official ISO 9001:2000 and ISO 14001:2004 certifications.

Technical Specifications

• Product Series: CX Series

• Manufacturer: Nuctech Company Limited

• Country of Origin: China

• Device Type: Dual-Energy Dual-View X-Ray Pallet Scanner

• Technology: Dual-View X-Ray Imaging with Advanced Material Classification based on Atomic Number Signatures

• Tunnel Dimensions: 1550 mm (Width) × 1840 mm (Height)

• Wire Resolution: 38 AWG

• Steel Penetration: Up to 50 mm

• Zoom Capability: Up to 32× step and continuous local zoom with magnifier

• Maximum Load: 2000 kg

• Conveyor Speed: 0.20 m/s

• Conveyor Height: 400 mm

• Dimensions / Weight: 8735 mm (L) × 3186 mm (W) × 3645 mm (H) / 7200 kg

• Image Storage Capacity: Up to 50,000 images

• Display Resolution: 1280 × 1024 pixels

• Image Export Formats: BMP, JPG, PNG (via USB storage devices)

• Threat Detection Capabilities: Enhanced location of dangerous objects via dual-view imaging; optional automatic explosives/narcotics detection and high-density zone alerts.

• Application Areas: Airports, customs facilities, railway stations, ports, logistics companies, and warehouses.

Conclusion

For facility managers and security authorities in Bangladesh, deploying a modern screening infrastructure is vital. It is all about striking the right equilibrium between rapid throughput and rigorous security verification. Fortunately, the CX150180D redefines this balance by delivering superior threat detection within an extra-large tunnel footprint. For example, it allows local transport networks, government buildings, and mega-event venues to achieve high safety standards without sacrificing spatial logistics.

By streamlining these checkpoint workflows, the system significantly mitigates congestion during peak entry hours. Consequently, this directly elevates both operator efficiency and the overall visitor experience. Furthermore, with its advanced automated detection capabilities and scalable configuration options, the CX150180D offers a future-proof, highly reliable solution. Investing in this technology provides a critical strategic advantage. Thus, it ensures that commercial, diplomatic, and transport hubs across Bangladesh remain resilient, compliant, and optimized for modern security demands.
