Cypress CPRO-U8T HDMI Splitter Price in Bangladesh

Description

Product Name: Cypress CPRO-U8T HDMI Splitter Price in Bangladesh

Manufacturer: Cypress

Product Overview

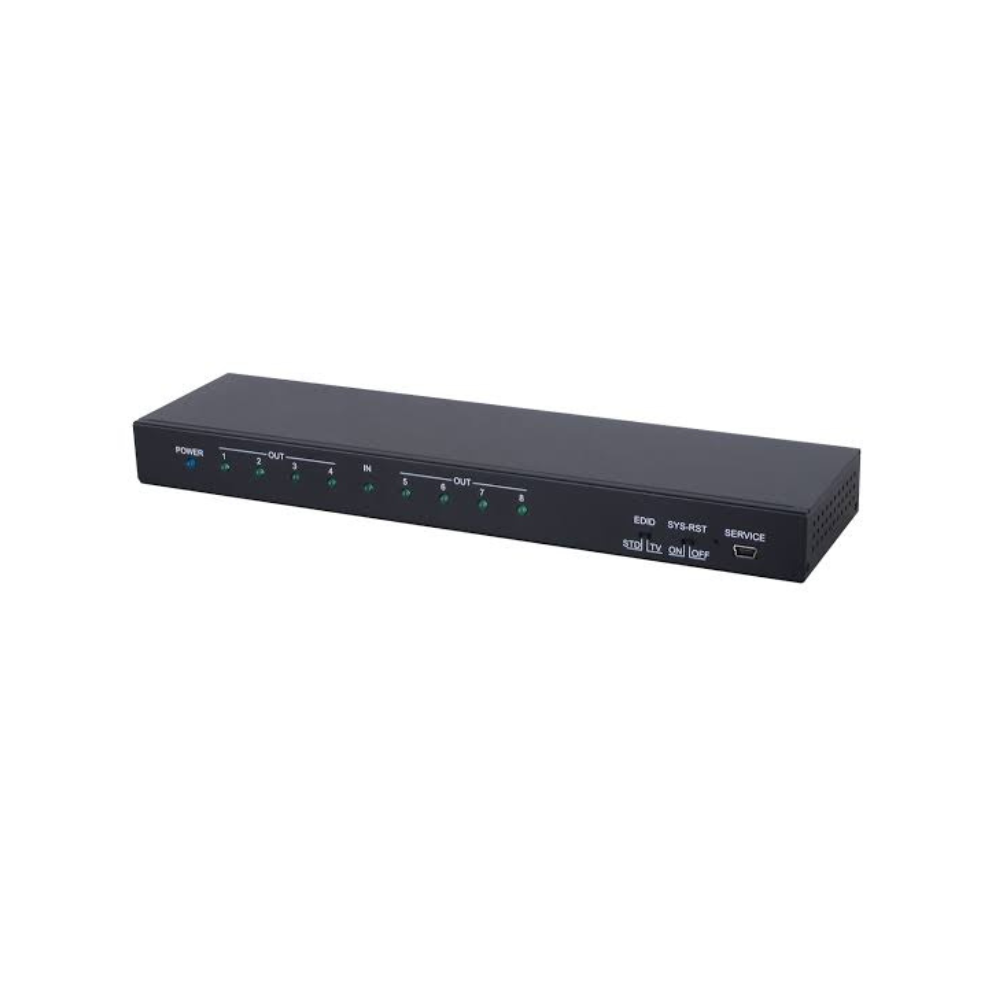

The Cypress CPRO-U8T is a 1-input to 8-output HDMI splitter featuring HDMI 2.0 with 4Kx2K support, HDCP 1.4 compliance, and DVI compatibility. It enables simultaneous distribution of a single ultra high-definition source to up to 8 UHDTV displays. Equipped with a System Reset function utilizing CEC commands, 3D pass-through, and adjustable EDID settings (‘Standard’ and ‘TV’ modes), it ensures reliable signal distribution for commercial video systems.

Key Features and Benefits

• 1-to-8 HDMI Distribution: Features 1 HDMI input and 8 HDMI outputs for simultaneous display of a single Ultra HD source on up to 8 UHDTV screens.

• High-Resolution Support: Handles UHDTV resolutions up to 4Kx2K (3840×2160 and 4096×2160) alongside 3D pass-through.

• High Definition Audio Pass-Through: Supports multi-channel audio formats including LPCM 2/5.1/7.1CH, Dolby Digital, DTS, Dolby TrueHD, Dolby Atmos, and DTS-HD Master Audio.

• System Reset Function (SYS-RST): Triggers CEC active source commands to force connected displays to switch back to their corresponding HDMI input automatically.

• Flexible EDID Management: Supports ‘Standard’ mode (searching a suitable resolution across all connected displays at 1080p and LPCM 2 channel) and ‘TV’ mode (automatically detecting and storing output 1 sink EDID data).

Technical Specifications

• Manufacturer: Cypress

• Product Name: Cypress CPRO-U8T HDMI Splitter

• Model: CPRO-U8T

• Video Bandwidth: 300 MHz / 9 Gbps

• Input Ports: 1 x HDMI, 1 x USB (Service)

• Output Ports: 8 x HDMI

• Supported Resolutions: VGA ~ WUXGA, 480i ~ 1080p @24/50/60, 4K2K @24/25/30, 4K2K @50/60 (YUV420)

• HDMI Cable I/O Distance: 5m @4K2K/60_YUV420, 10m @1080p

• ESD Protection: Human Body model: ±8kV (air-gap discharge), ±4kV (contact discharge)

• Power Supply: 5VDC/2.6A (US/EU standards, CE/FCC/UL certified)

• Dimensions (Jacks included): 260mm (W) x 76.5mm (D) x 26mm (H)

• Weight: 488 g

• Chassis Material: Metal

• Silkscreen Color: Black

• Operating Temperature: 0°C ~ 40°C

• Storage Temperature: -20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F

• Relative Humidity: 20 ~ 90% RH (no condensation)

• Power Consumption: 3.63 W

Ideal Applications

• Multi-Display Digital Signage and Retail Showrooms

• Corporate Boardrooms and Conference Room Video Distribution

• Control Rooms and Monitoring Centers

• Hospitality and Entertainment Venue Multi-Screen Setup

Conclusion

The Cypress CPRO-U8T HDMI Splitter provides a reliable 1-to-8 Ultra HD signal distribution solution with robust EDID management, CEC system reset functionality, and multi-channel audio pass-through. Built with a durable metal chassis, it ensures stable and high-performance video routing for professional multi-display environments.
