Esser 784840.10 Essernet Module 62.5kBd Price in BD

Description

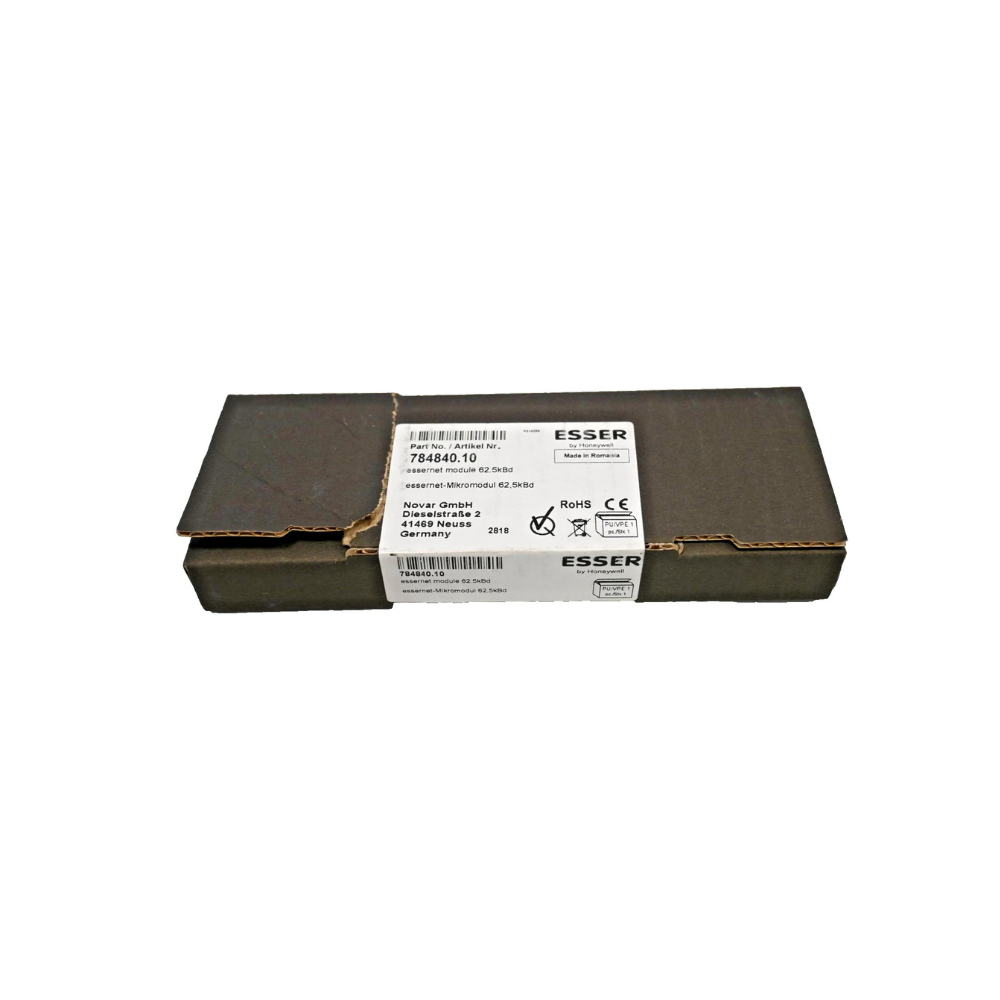

Product Name: Esser 784840.10 Essernet Module 62.5kBd Price in BD

Manufacturer: Esser by Honeywell (Novar GmbH)

Product Overview

The Esser 784840.10 essernet module serves as a network interface module designed for networking ESSER fire alarm control panels. It operates at a transmission rate of 62.5 kBd and enables connection for up to 16 network participants. Furthermore, the module utilizes a token-passing protocol (similar to DIN 19245-1 / Profibus) operating within a ring loop topology. This design provides interruption and short-circuit tolerance across networked systems.

Key Benefits

• Network Integration: Facilitates fire alarm system networking across up to 16 network participants.

• Fault-Tolerant Topology: Supports interruption and short-circuit tolerance within the essernet ring topology.

• Standardized Protocol: Uses a token-passing communication protocol similar to DIN 19245-1 / Profibus.

• System Application: Designed for IQ8Control applications; verify compatibility with the installed system before purchase.

• Quiescent Current: Draws a quiescent current of approximately 150 mA at 12 VDC.

Key Features & Technologies

• Transmission Rate: Operates at a data transfer speed of 62.5 kBd.

• Network Capacity: Connects up to 16 participants per essernet network segment.

• Token-Passing Protocol: Employs token-passing communication based on DIN 19245-1 / Profibus standards.

• Fault-Tolerant Ring Topology: Features short-circuit and open-circuit interruption tolerance within a ring loop topology.

• Cable Requirement: Uses IY(St)Y n × 2 × 0.8 mm telecommunications cable with a maximum length of 1000 m between two network participants.

Technical Specifications Overview

• Brand: Esser by Honeywell (Novar GmbH)

• Part Number / MPN: 784840.10

• Product Type: essernet network interface module

• Transmission Speed: 62.5 kBd

• Max. Network Participants: 16 participants

• Communication Protocol: Token-passing protocol (similar to DIN 19245-1 / Profibus)

• Network Topology: Ring structure with interruption and short-circuit tolerance

• Cable Specification: IY(St)Y n × 2 × 0.8 mm telecommunications cable

• Max. Cable Distance: 1000 m between two network participants

• Quiescent Current: Approx. 150 mA @ 12 VDC

• System Compatibility: Designed for IQ8Control applications; verify compatibility with the installed system before purchase

Conclusion

The Esser 784840.10 essernet module delivers 62.5 kBd network communication for up to 16 network participants. It provides a token-passing ring structure with interruption and short-circuit tolerance for compatible ESSER fire alarm control panels.

Contact Us

For pricing, stock availability, and ordering of Esser fire alarm network modules in Bangladesh, contact us:

• Phone: +8801737118246

• Email: [email protected]
