Bosch FCP-O320-R470 Optical Smoke Detector Price in BD

Description

Product Name: Bosch FCP-O320-R470 Optical Smoke Detector Price in BD

Manufacturer: Bosch

Product Overview

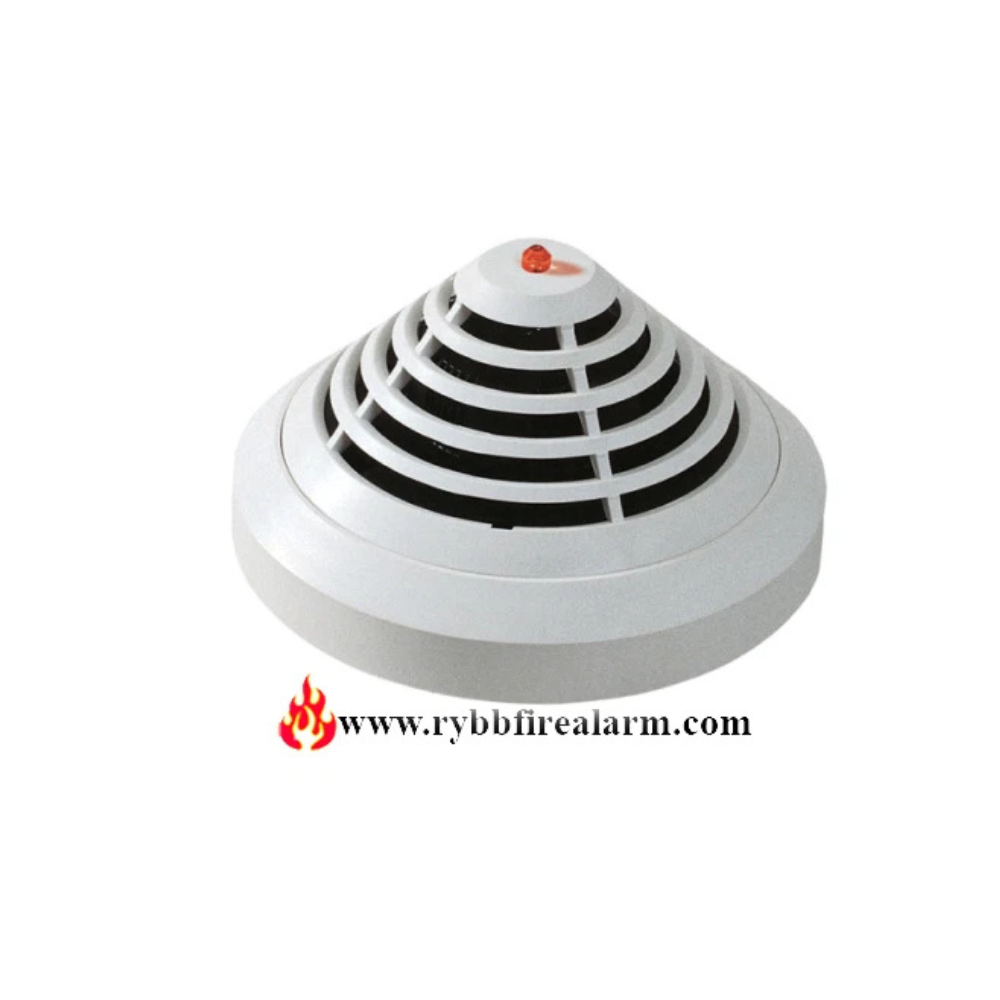

The Bosch FCP-O320-R470 operates as a conventional optical smoke detector belonging to the FCP-320 conventional fire detector series. It uses a scattered light sensor processed through internal algorithms to evaluate smoke presence in protected areas. Designed with an operating voltage range of 8.5 V DC to 30 V DC, it functions across compatible conventional fire alarm control panels. The detector unit features an individual alarm LED display positioned at the tip of the housing for visual status identification.

Key Benefits

• Panel Compatibility: The 8.5–30 V DC operating range supports use with many conventional fire alarm control panels, subject to panel compatibility.

• Scattered Light Optical Sensing: Employs scattered light technology to detect smoke particles.

• Versatile Mounting Options: Supports surface-mounted and flush-mounted cable routing, including concealed sockets and dropped ceiling mounting points.

• Installation-Friendly Terminals: Easily accessible terminals accommodate cable cross-sections up to $2.5\text{ mm}^2$ with integrated strain relief.

• Resistor Retainer: Includes an integrated retainer for holding end-of-line (EOL) resistors inside the base assembly.

Key Features & Technologies

• Optical Detection Method: Evaluates scattered light signals generated by smoke particles inside the sampling chamber.

• Integrated Individual Display: Features a status LED indicator located at the detector tip for status identification.

• Surface Cable Entry: Allows side cable feeding when installed in surface-mounting configurations.

• Integrated Strain Relief: Prevents wire pull-out from connection terminals after installation.

• EOL Resistor Retainer: Features a dedicated holder within the terminal block area for installing end-of-line resistors.

• Damp Room Protection: Designed to accommodate a damp room seal for moisture protection.

Technical Specifications Overview

• Brand: Bosch

• Model / MPN: FCP-O320-R470

• Detector Series: FCP-320 Series

• Detector Type: Conventional Optical Smoke Detector

• Operating Voltage: 8.5 V DC to 30 V DC

• Sensing Principle: Scattered light optical sensing

• Cable Cross-Section: Up to $2.5\text{ mm}^2$

• Status Indicator: Individual alarm LED at the detector tip

• Installation Types: Surface mounting (with side cable entry) or flush mounting

Conclusion

The Bosch FCP-O320-R470 Optical Smoke Detector uses scattered light technology and an operating range of 8.5 to 30 V DC for compatibility with conventional fire alarm systems. With an individual status display and strain-relieved wiring terminals accommodating cable cross-sections up to $2.5\text{ mm}^2$, it provides conventional smoke detection for commercial and industrial facilities.
