Farenhyt IDP-PHOTO-T-IV Smoke & Heat Sensor Price in Bangladesh

Description

Product name: Farenhyt IDP-PHOTO-T-IV Smoke & Heat Sensor Price in Bangladesh

Manufacturer: Honeywell

Product Overview

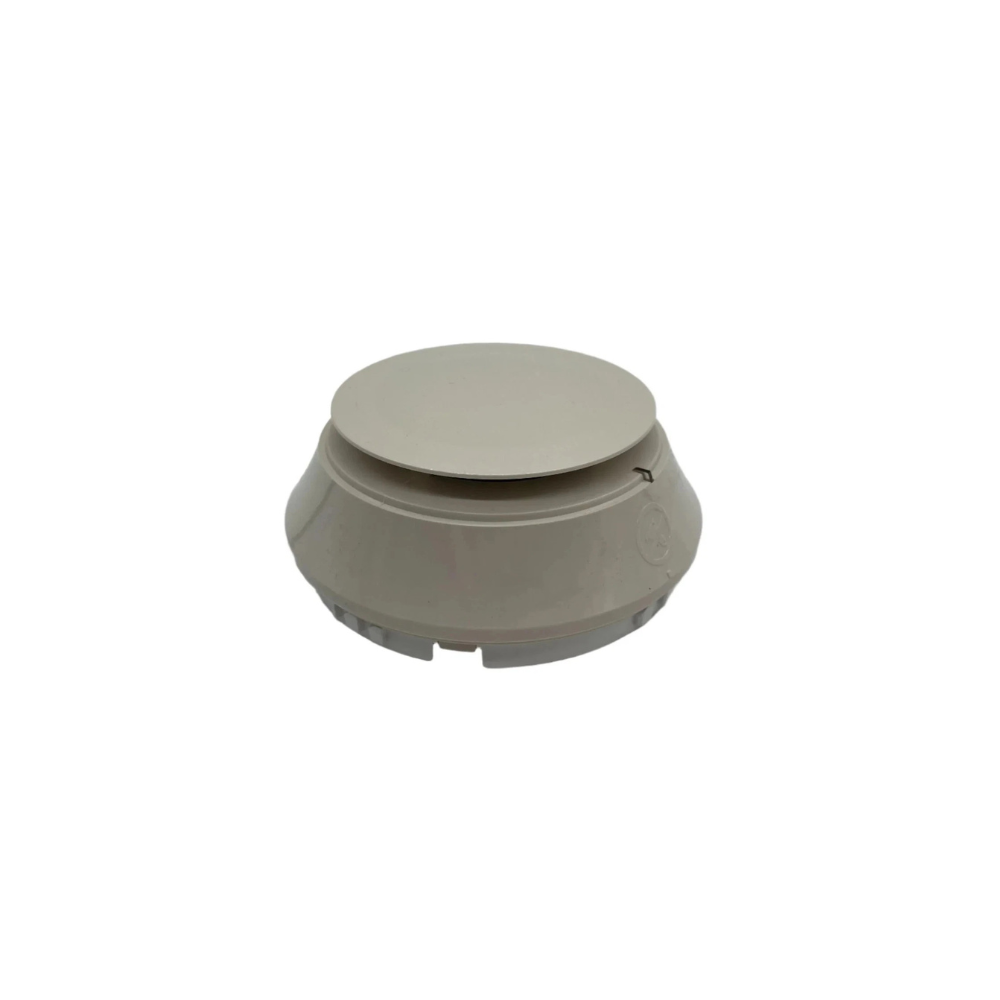

The Farenhyt IDP-PHOTO-T-IV operates as an addressable combination photoelectric smoke and thermal heat sensor designed for Honeywell Farenhyt Series fire alarm control panels. Furthermore, it integrates an optical smoke sensing chamber with a 135°F (57°C) fixed-temperature thermal detection element within a single detector housing.

In addition, the module connects directly to the panel’s Signaling Line Circuit (SLC) loop to provide addressable smoke and heat detection capabilities from a single device location. Meanwhile, its low-profile ivory housing (“-IV” suffix) simplifies plug-in mounting across compatible detector bases in commercial and industrial facilities.

Key Benefits

• Dual-Technology Detection: Combines optical photoelectric smoke sensing with 135°F fixed-temperature thermal detection for early hazard response.

• Point-Specific Addressability: Communicates exact location and status details directly to the host panel to accelerate emergency response.

• Ivory Color Option: Finished in standard ivory (“-IV” suffix) to match compatible Farenhyt device trim.

• Modular Base Compatibility: Plugs into compatible mounting bases (such as the B300-6-IV) for straightforward installation and maintenance.

Key Features & Technologies

• Combination Sensing Element: Features an optical chamber for smoke detection alongside a 135°F (57°C) fixed thermal sensor.

• Farenhyt SLC Integration: Operates directly over the 2-wire Signaling Line Circuit loop of compatible Farenhyt fire alarm control panels.

• Air Velocity Rating: Suitable for installation in environments with air velocities ranging from 0 to 4,000 ft/min (0 to 20 m/s).

• 360-Degree Visual Status: Features panel-controlled LED indication providing status visibility around the device.

Technical Specifications Overview

• Brand: Honeywell / Farenhyt

• Model: IDP-PHOTO-T-IV

• Product Type: Addressable Combination Photoelectric Smoke and Fixed Thermal Sensor

• Color: Ivory (-IV)

• Operating Voltage Range: 15 VDC to 32 VDC (Powered via SLC Loop)

• Standby Current Draw: 200 µA at 24 VDC (one communication every 5 seconds)

• Maximum Current: 4.5 mA at 24 VDC (LED on)

• Thermal Sensor Threshold: 135°F (57°C) Fixed Temperature

• Operating Temperature Range: 32°F to 100°F (0°C to 38°C)

• Operating Humidity Range: 10% to 93% RH (non-condensing)

• Air Velocity Rating: 0 to 4,000 ft/min (0 to 20 m/s)

• Compatible Detector Base: B300-6-IV

• Agency Compliance: UL Listed; FM Approved

Conclusion

The Farenhyt IDP-PHOTO-T-IV Addressable Photoelectric Smoke and Thermal Sensor provides dual-technology fire detection for compatible Farenhyt Series life safety systems. Furthermore, its point-specific addressing, 135°F fixed thermal threshold, low standby current, and compatible B300-6-IV base support ensure reliable fire monitoring in commercial environments.
