Fire-Lite SD365CO Addressable Fire and CO Detector Bangladesh

Fire-Lite SD365CO Fire & CO Detector Price in Bangladesh

0.00৳

Categories: , Tags: , , , , , , , , ,

Description

Product Name: Fire-Lite SD365CO Fire & CO Detector Price in Bangladesh

Country of Origin: Mexico

Product Overview

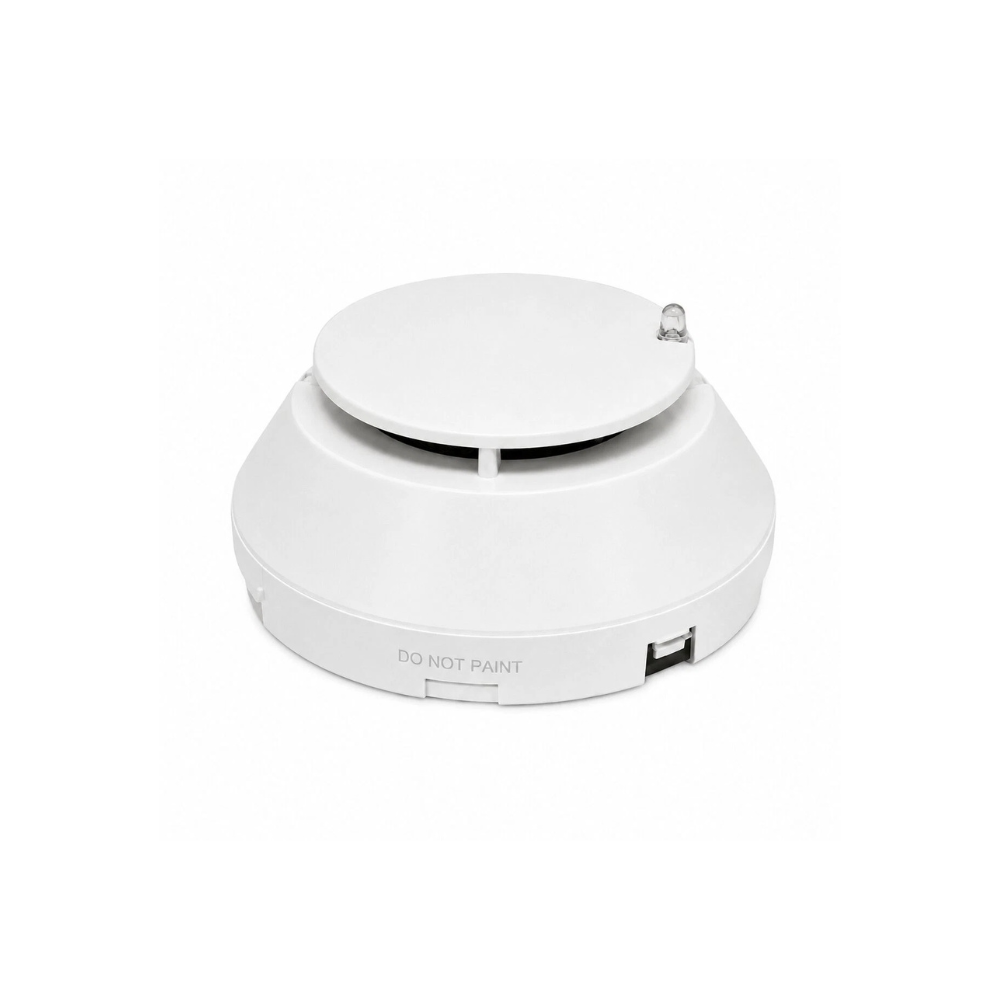

The Fire-Lite SD365CO is an addressable multi-criteria fire and carbon monoxide (CO) detector. It combines photoelectric, thermal, carbon monoxide, and infrared sensing elements within a single unit. Furthermore, the detector operates on Fire-Lite LiteSpeed addressable control panels. Consequently, it provides separate life-safety signals for fire and CO hazards using a single address on the signaling line circuit.

Specifications & Features

  • Brand & Model: Fire-Lite (Honeywell) SD365CO (MPN: SD365CO / UPC: 0783863052590)

  • Product Type: Addressable Multi-Criteria Photoelectric, Thermal, and CO Detector

  • Protocol Compatibility: Operates on Fire-Lite LiteSpeed addressable communication protocol.

  • Sensing Technologies: Incorporates 4 distinct sensing elements: photoelectric smoke detection, thermal sensing ($135^\circ\text{F}$ fixed threshold), carbon monoxide monitoring, and infrared detection.

  • Electrical Ratings: Operating voltage ranges from 15 to 32 VDC. Current draw includes $200\ \mu\text{A}$ in standby, 2 mA in alarm mode, and up to 4.5 mA maximum.

  • Addressing & Capacity: Features rotary dial switches for setting point addresses, supporting up to 159 addresses per SLC loop on compatible host panels.

  • CO Cell Life: Features a 10-year carbon monoxide sensing cell with end-of-life warning capability.

  • Visual Status Indicators: Dual panel-controlled LEDs provide red, green, or amber status indication.

  • Environmental Limits: Operates in temperatures ranging from $32^\circ\text{F}$ to $100^\circ\text{F}$ ($0^\circ\text{C}$ to $38^\circ\text{C}$) with relative humidity between 15% and 90% (non-condensing).

  • Dimensions & Weight: Measures 2.7 inches (69 mm) in height and 6.875 inches (175 mm) in diameter when installed in a B200S series sounder base. Total weight is approximately 3.4 oz (95 g).

Agency Listings & Standards

  • UL Listings: UL 268 (Smoke Detectors), UL 521 (Heat Detectors), and UL 2075 (Gas and Vapor Detectors) listed.

  • Standards Compliance: Per UL 2075 standard, the unit has been tested to the sensitivity limits defined in UL 2034 for carbon monoxide monitoring.

Safety & Availability Notice

Important Product Availability Notice: Honeywell has designated the SD365CO detector as a discontinued model. Consequently, buyers and installers sourcing existing inventory or replacement units should verify unit availability, manufacturing date code, and physical condition prior to deployment in active life-safety systems.

Conclusion

The Fire-Lite SD365CO is an addressable multi-criteria detector engineered for combined fire and carbon monoxide sensing. Therefore, it serves commercial life-safety installations requiring LiteSpeed protocol integration and dual-hazard protection.
