Product name: Honeywell MAXPRO Intrusion MPIP2000E Panel Price in BD

Country of Origin: United Kingdom

Product Overview

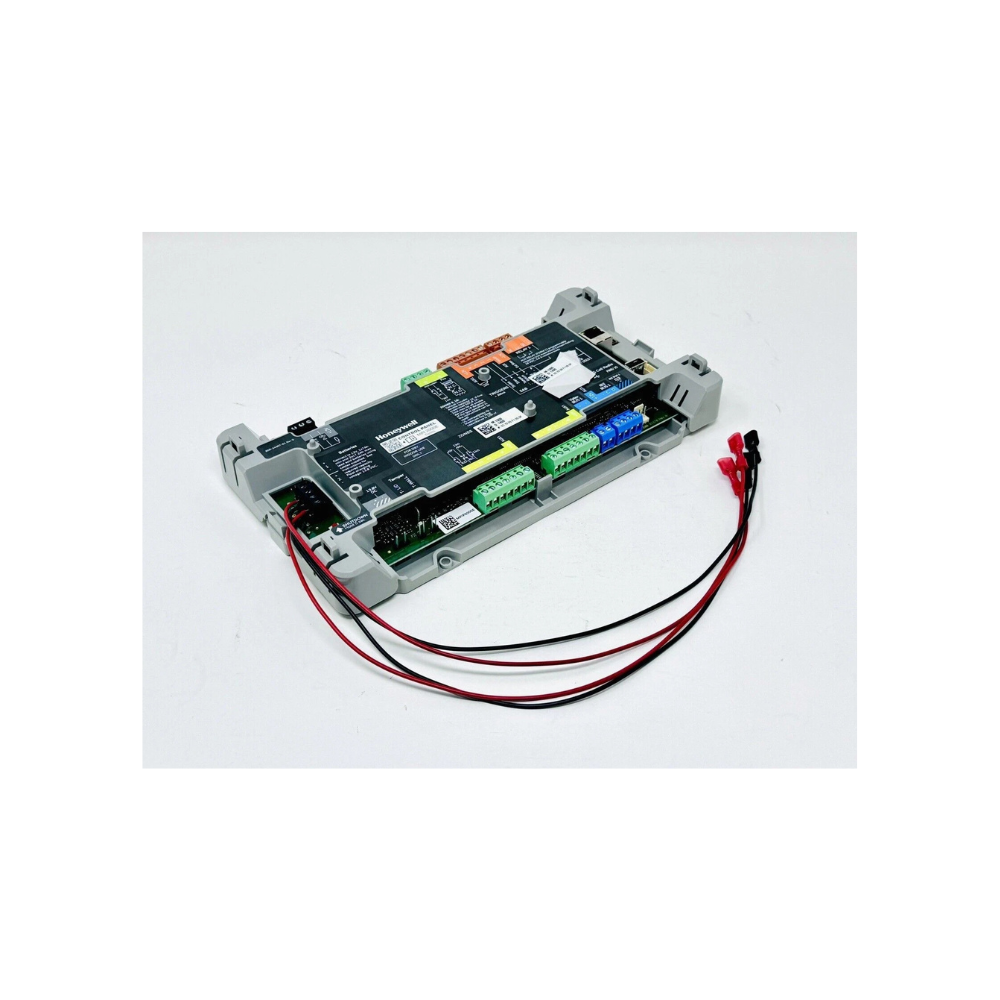

The Honeywell MAXPRO Intrusion MPIP2000E is a cloud-hosted intrusion control panel printed circuit assembly (PCA) designed for small to medium single-site or multi-site commercial security installations. It features 10 onboard inputs and can expand up to 60 programmable inputs. Native Ethernet IP connectivity allows direct cloud-based setup, monitoring, and administration via MAXPRO Cloud.

Key Specifications & Features

• Brand & Model: Honeywell MAXPRO Intrusion MPIP2000E

• Product Type: Intrusion Control Panel Printed Circuit Assembly (PCA)

• Onboard Inputs: 10 onboard inputs, including 2 inputs suitable for 2-wire smoke devices.

• Maximum Inputs: Supports up to 60 programmable inputs.

• System Capacity: Configurable for up to 10 areas (partitions) and 10 doors.

• User Capacity: Supports up to 500 users and 30 permission groups.

• Event Log Capacity: Stores up to 1,000 intrusion events and 6,000 access events.

• IB2 Bus: 1 onboard IB2 bus supporting up to 46 compatible IB2 peripheral devices.

• V-Plex Bus: 1 onboard V-Plex bus supporting up to 128 devices (subject to bus current limitations).

• Onboard Outputs: Features 4 low-voltage trigger outputs and 1 relay output.

• Maximum System Outputs: Expandable up to 60 outputs depending on system configuration.

• Board Input Voltage: Nominal $14\text{ VDC}$ ($13.6\text{ to }14.5\text{ VDC}$).

• Board Current Consumption: $230\text{ mA}$ typical; $290\text{ mA}$ maximum (excluding auxiliary output loads).

• Network & Connectivity: Built-in Ethernet port; supports optional MPICLTEE 4G/LTE communication module.

• Cloud Management: Integrates with MAXPRO Cloud for remote configuration, maintenance, and multi-site management.

• PCA Dimensions: $280\text{ mm} \times 145\text{ mm} \times 42\text{ mm}$ (including mounting bracket).

• PCA Weight: Approximately $502\text{ g}$ (including mounting bracket).

• Product Condition: New – Unused and unopened in original packaging.

Standards and Enclosure Compliance

• European Security Grade: Certified to EN 50131-3:2009 Grade 3 and Environmental Class II.

• Power Supply Standard: Complies with EN 50131-6:2017 Type A requirements.

• Transmission & Standards: Meets EN 50136-2 Category SP5 (DP4 with optional MPICLTEE) and PD 6662:2017 standards.

• Enclosure Requirement: Achieves EN 50131-10:2014 Type Z compliance specifically when installed inside an approved MAXPRO Intrusion enclosure model MPIBXM35.

Technical Notice

Installation & Enclosure Notice: Model MPIP2000E is supplied as the standalone printed circuit assembly (PCA) with a mounting bracket. For EN 50131 Grade 3 certified installations, it must be mounted inside a compatible tamper-protected metal enclosure (such as MPIBXM35) paired with a certified remote power supply unit.

Conclusion

The Honeywell MAXPRO Intrusion MPIP2000E control panel PCA provides 10 onboard inputs, cloud-managed IP connectivity, and Grade 3 expansion up to 60 zones. Therefore, it serves commercial and multi-site facilities requiring structured intrusion and access control integration.
