Honeywell MR-101/C/R Multi-Voltage Control Relay Price Bangladesh

Description

Product name: Honeywell MR-101/C/R Multi-Voltage Control Relay Price Bangladesh

Manufacturer: Honeywell

Product Overview

The Honeywell MR-101/C/R operates as a multi-voltage control relay designed for fire alarm auxiliary switching, HVAC controls, security setups, and building automation interlocks. Equipped with a Form C (SPDT) dry contact configuration, it provides switching for emergency functions such as door holder release, elevator recall, fan shutdown, and remote signal triggering.

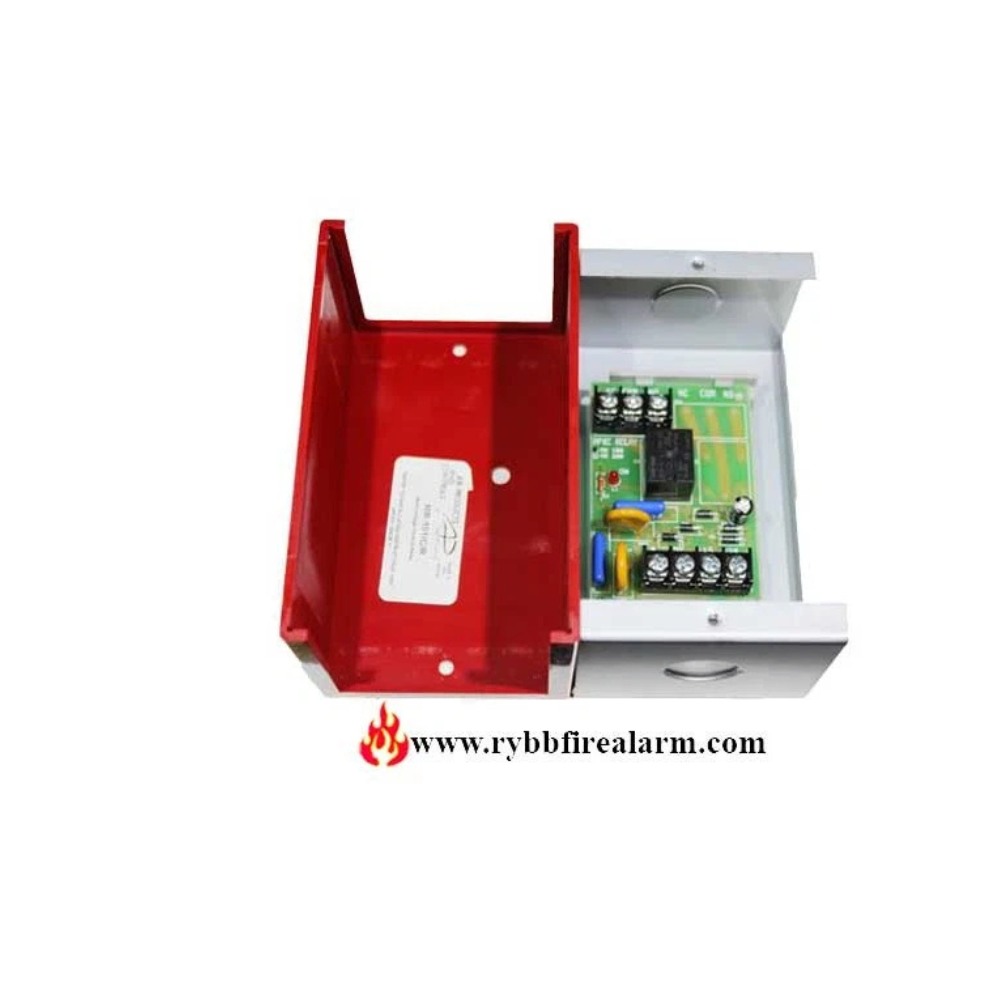

Furthermore, the MR-101/C/R features selectable coil input wiring terminals accommodating 24 VDC, 24 VAC, 120 VAC, or 230 VAC power sources. Housed in a dedicated enclosure with a flame-retardant red ABS plastic cover, it includes an onboard red LED indicator that illuminates when the relay coil is energized.

Key Benefits

• Multi-Voltage Input Selection: Accepts 24 VDC, 24 VAC, 120 VAC, or 230 VAC control power on designated wiring terminals.

• Form C Contact Switching: Features SPDT dry contacts rated at 10 A @ 120/125 VAC and 7 A @ 28/30 VDC.

• Visual Status Annunciation: Integrates an onboard red LED viewing port to confirm active relay coil energization without test equipment.

• Flame-Retardant Enclosure: Enclosed within a backbox assembly fitted with a red ABS-94V0 plastic cover.

• Operating Duty Limitation: Designed for continuous-duty operation at 24 VDC, 24 VAC, and 120 VAC. The manufacturer states that continuous-duty operation at 230 VAC is not intended.

Key Features & Technical Details

• Form C Relay Output: Provides one set of Normally Open (NO) and Normally Closed (NC) contacts sharing a Common (C) terminal.

• Voltage-Dependent Coil Current: Current draw per relay position is 15 mA at 24 VDC, 48 mA at 24 VAC, 21 mA at 120 VAC, and 19 mA at 230 VAC.

• Polarized DC Input Circuit: Includes polarized connections for monitored DC signal circuits.

• Multi-System Interlock Utility: Suitable for fire alarm auxiliary control, air handling unit (AHU) shutdown, and access control override.

Technical Specifications Overview

• Brand: Honeywell / Air Products and Controls

• Model: MR-101/C/R (MR-101/CR)

• MPN: MR-101/C/R

• Product Type: Multi-Voltage Single SPDT Control Relay

• Contact Configuration: Form C (SPDT – Single Pole Double Throw)

• Contact Rating: Resistive load: 7 A at 30 VDC, 10 A at 125 VAC, and 7 A at 250 VAC.

• Selectable Coil Input Voltages: 24 VDC, 24 VAC, 120 VAC, 230 VAC

• Coil Power Requirements: Varies by selected coil input voltage

• Status Indicator: Red LED (Illuminates when energized)

• Enclosure Cover Material: Flame-retardant Red ABS-94V0 Plastic

• Operating Temperature Range: 32°F to 120°F (0°C to 49°C)

• Operating Humidity Range: Up to 85% RH (non-condensing @ 32°F)

Conclusion

The Honeywell MR-101/C/R Multi-Voltage Control Relay delivers flexible SPDT contact switching for commercial fire and security systems. Its multi-voltage coil input terminals (24 VDC/VAC, 120/230 VAC), Form C contacts, visual LED status light, and flame-retardant red enclosure support reliable emergency control interlocks across commercial and industrial facilities.
