Mircom MIX-3100 Intelligent Addressable Photoelectric Smoke Detector Bangladesh

Mircom MIX-3100 Addressable Smoke Detector Price in BD

0.00৳

Categories: , Tags: , , , , , , , , ,

Description

Product Name: Mircom MIX-3100 Addressable Smoke Detector Price in BD

Product Overview

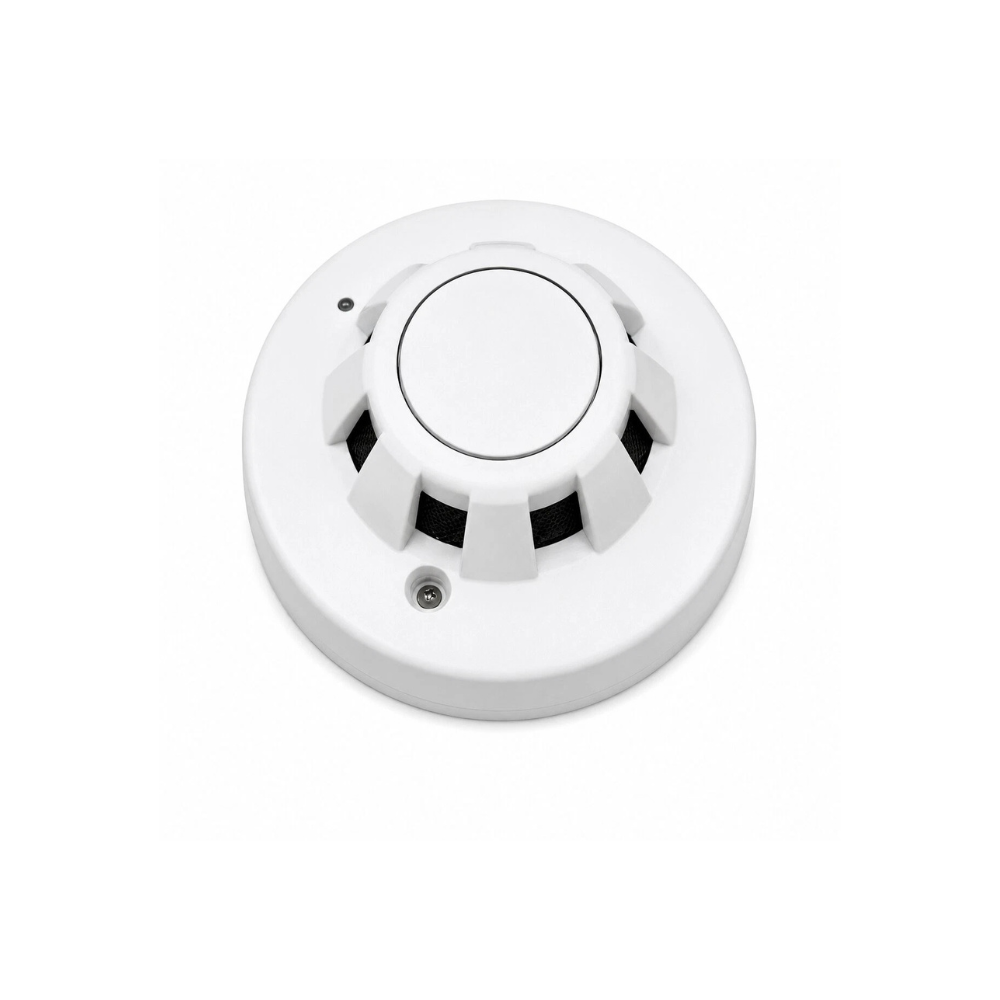

The Mircom MIX-3100 is an Alpha Series low-profile, intelligent addressable photoelectric smoke detector designed for commercial fire alarm applications. Featuring an optical sensing chamber, it continuously monitors smoke levels and communicates over addressable signaling line circuits with compatible Mircom fire alarm control panels. It utilizes the patented MIX-ADD address card system integrated into the mounting base to hold device address data, eliminating addressing errors during detector head replacement.

Specifications & Features

  • Brand & Model: Mircom / Alpha Series (MPN: MIX-3100)

  • Product Type: Intelligent Addressable Photoelectric Smoke Detector

  • Detection Technology: Optical photoelectric sensing chamber.

  • Addressing Method: Base-addressed via coded MIX-ADD address card (location data is retained in the mounting base).

  • Control Panel Compatibility: Designed for use with Mircom FX-350 Series fire alarm control panels.

  • Visual Status Indicator: Integrated clear LED indicator that flashes red during normal polling and illuminates steady red upon alarm condition.

  • Operating Input Voltage: $17\text{ to }28\text{ VDC}$ ($5\text{ to }9\text{ V}$ modulation voltage).

  • Current Consumption:

    • Supervisory / Standby Current: $400\ \mu\text{A}$

    • Maximum Alarm Current (LED On): $3.4\text{ mA}$

    • Surge Current: $1.0\text{ mA}$

  • Physical Construction: White polycarbonate low-profile housing with twist-lock mounting base.

  • Product Condition: New – Brand new, unused, unopened item in original retail packaging.

Technical Specifications

  • Operating Temperature Range: $-20^\circ\text{C to }+70^\circ\text{C}$ (Installation minimum $0^\circ\text{C}$ per system limits).

  • Operating Humidity Range: $0\%\text{ to }95\%$ RH (non-condensing or icing).

  • Communication Interface: Analog addressable signaling line circuit (SLC).

  • Mounting Setup: Plugs into compatible Alpha Series detector bases.

Standards & Compliance

  • Safety Listings: UL and ULC listed for commercial fire alarm systems when installed according to manufacturer instructions and local codes.

Technical Notice

MIX-ADD Base-Addressing Notice: The MIX-3100 derives its address from the MIX-ADD address card plugged into the mounting base rather than internal dip switches on the detector head. When servicing or replacing units, ensure the original MIX-ADD card remains securely in the base to maintain proper panel zone mapping and loop programming.

Conclusion

The Mircom MIX-3100 photoelectric addressable smoke detector provides fast, reliable smoke sensing with base-level address programming. Therefore, it serves commercial buildings, healthcare facilities, and industrial properties utilizing compatible Mircom FX-350 Series fire alarm systems.

Contact Us

For pricing inquiries and orders for the Mircom MIX-3100 Smoke Detector in Bangladesh, get in touch with our team:
