Napco FWC-FSLC-EZM2 Dual Input Monitor Module Price in Bangladesh

Description

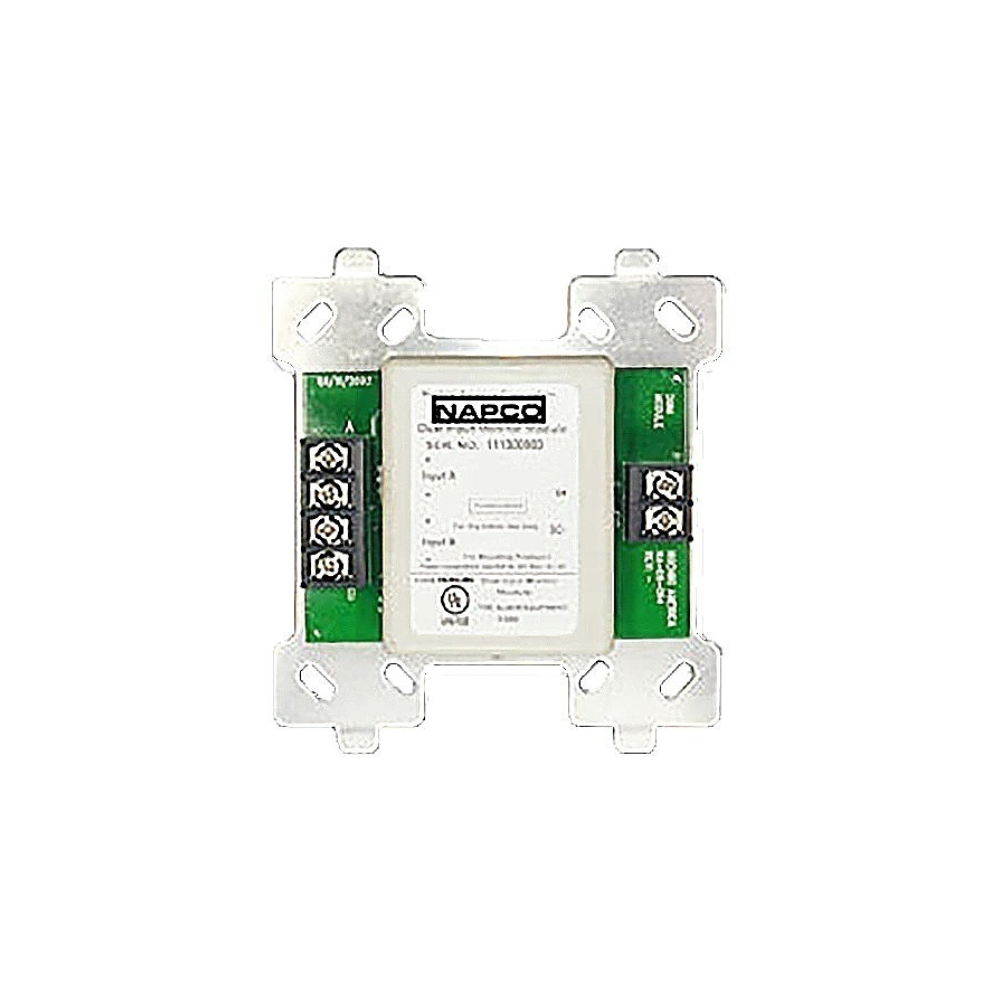

Product Name: Napco FWC-FSLC-EZM2 Dual Input Monitor Module Price in Bangladesh

Manufacturer: Napco Security Technologies

Product Overview

The Napco FWC-FSLC-EZM2 operates as an addressable dual-input contact monitoring module for Napco GEMC Firewolf Series commercial fire alarm panels. Furthermore, it connects to the signaling line circuit (SLC) to yield two independent contact monitoring zones while utilizing a single SLC loop address.

In addition, the module monitors Normally Open (NO) dry contact initiating devices such as manual pull stations, waterflow switches, gate valves, pressure sensors, conventional heat detectors, and suppression system interfaces. Consequently, fire system designers can expand system zone capacity efficiently without consuming additional addresses on the addressable loop. Meanwhile, the device draws operating power directly from the SLC loop, eliminating the need for an external 24 VDC power supply.

Key Benefits

• Efficient Loop Addressing: Provides two independent monitoring circuits using a single address on the SLC loop.

• Loop-Powered Design: Operates directly off the signaling line circuit without requiring auxiliary 24 VDC power wiring.

• Versatile Device Monitoring: Supervises Normally Open (NO) dry contact initiating devices across fire protection systems.

• Flexible Enclosure Mounting: Installs in a compatible UL-listed electrical box for field deployment.

Key Features & Technologies

• Firewolf System Integration: Integrates with Napco GEMC Firewolf Series addressable commercial fire control panels.

• Fast Interrupt Protocol: Uses an interrupt-driven digital communications protocol for rapid alarm response times.

• Dedicated Input Monitoring: Supports monitoring of Normally Open (NO) dry contact devices for initiating circuits.

• Class A & Class B Support: Operates on Style 4 (Class B) or Style 6 (Class A) SLC loop wiring configurations.

• Bi-Color Status LED: Features a green/red LED whose color and operating mode are selected by the control panel software.

Technical Specifications Overview

• Brand: Napco Security Technologies

• Model: FWC-FSLC-EZM2

• Product Type: Addressable 2-Zone Dual Input Monitor Module

• Addresses Required: 1 SLC Loop Address (yields 2 sub-points)

• Operating Voltage: 25.3 to 39 VDC (Powered via SLC Loop)

• SLC Current Consumption: 600 µA nominal; 720 µA maximum

• Input Circuit Rating: 3.2 VDC, 100 µA

• End-of-Line Resistor: 22 kΩ (Napco P/N 0400-02370)

• Auxiliary Power Required: None (No 24 VDC power connection needed)

• Wiring Configurations: Class A (Style 6) or Class B (Style 4) SLC Loop

• Compatible Initiating Devices: Normally Open (NO) dry contact devices (manual pull stations, waterflow switches, pressure switches, heat detector loops)

• Dimensions: 4.2 in W × 4.7 in H × 0.85 in D

• Mounting: Installs in a compatible UL-listed electrical box

• Operating Temperature: 0°C to 49°C (32°F to 120°F)

• Environment: Indoor dry use only

• Agency Listings: UL File No. S5694 (subject to regional fire code and panel application requirements)

Conclusion

The Napco FWC-FSLC-EZM2 Dual Input Monitor Module provides two-zone contact monitoring over a single addressable loop location. Moreover, its loop-powered operation, flexible mounting profile, and compatibility with Firewolf panels support efficient zone expansion in commercial fire alarm installations.
